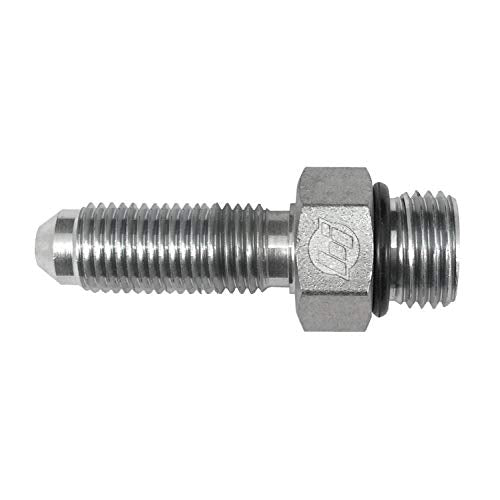

2764-04-04-O by Brennan Inc. | -04 Male O-Ring Boss x -04 Male JIC Bulkhead | Straight | Steel

2764-04-04-O by Brennan Inc. | -04 Male O-Ring Boss x -04 Male JIC Bulkhead | Straight | Steel

Sale price$10.89

Brennan Inc.
Tube Fittings & Adapters: 2764-O - Male O-Ring Boss x Male JIC Bulkhead Straight
Buy More, Save More!
Quantity Price Each
10–39 $10.24
40–79 $9.26
80+ $8.17
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/4in Male O-Ring Boss
  • 1/4in Male JIC
Material(s):
  • Steel
Part Number Material B1 TUBE O.D. B2 TUBE O.D. B1 SAE ORB B2
SAE 37°		 B1 Drill B2 Drill L Length C Hex
2764-04-04-O Steel 1/4" 1/4" 7/16-20" 7/16-20" 0.172" 0.172" 1.950" 0.688"
2764-06-06-O Steel 3/8" 3/8" 9/16-18" 9/16-18" 0.297" 0.297" 2.020" 0.813"
2764-08-08-O Steel - - - - - - - -
2764-12-12-O-SS Stainless Steel 3/4" 3/4" 1-1/16-12" 1-1/16-12" 0.609" 0.609" 2.815" 1.375"
