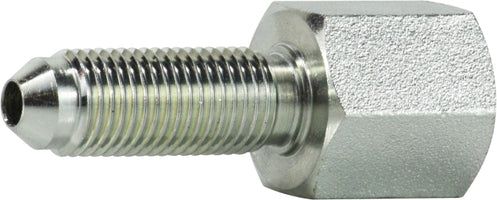

270552 by Midland | Hydraulic JIC to Female Bulkhead | 5/16" Male JIC 37° Flare x 1/8" Female Pipe | Steel
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
| Technical Info: | |||
|---|---|---|---|
| Crossover Series: | |||
|---|---|---|---|
| 2705 | 2239 | WGTX | C5275 |
 |
||||
|---|---|---|---|---|
| Part Number | Male JIC 37° Flare Bulkhead (1) |
Male JIC 37° Flare Thread |
Female Pipe (2) |
Lock Nut Part Number (Not Included - Must be Purchased Separately) |
| 270544 (2705-4-4) |
1/4" | 7/16-20 | 1/4" | 03064 (0306-4) |
| 270552 | 5/16" | 1/2-20 | 1/8" | - |
| 270564 | 3/8" | 9/16-18 | 1/4" | - |
| 270566 (2705-6-6) |
3/8" | 9/16-18 | 3/8" | 03066 (0306-6) |
| 270568 | 3/8" | 9/16-18 | 1/2" | - |
| 270588 (2705-8-8) |
1/2" | 3/4-16 | 1/2" | 03068 (0306-8) |
| 2705108 | 5/8" | 7/8-14 | 1/2" | - |
| 27051212 (2705-12-12) |
3/4" | 1-1/16-12 | 3/4" | 030612 (0306-12) |
| 27051616 (2705-16-16) |
3/4" | 1-5/16-12 | 1" | 030616 (0306-16) |
| 27052020 | 1-1/4" | 1-5/8-12 | 1-1/4" | 030620 (0306-20) |
| 27052424 | 1-1/2" | 1-7/8-12 | 1-1/2" | - |
| 27053232 | 2" | 2-1/2-12 | 2" | - |
