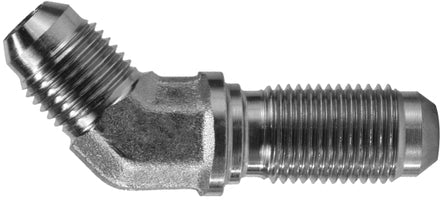

2702-24-24 by Midland | Hydraulic JIC Bulkhead Union | 1-1/2" Male JIC 37° Flare x 1-1/2" Male JIC 37° Flare | 45° Elbow | Steel
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
| Specifications: | |||
|---|---|---|---|
|
|||
| Technical Info: | |||
| Crossover Series: | ||||
|---|---|---|---|---|
| 2702 | 2042 | WNTX | 1261 | C5375 |
 |
||||
|---|---|---|---|---|
| Part Number | Male JIC 37° Flare (1) |
Male JIC 37° Flare Bulkhead (2) |
Male JIC 37° Flare Thread |
Lock Nut Part Number (Not Included - Must be Purchased Separately) |
| 27024 (2702-4) |
1/4" | 1/4" | 7/16-20 | 03064 (0306-4) |
| 2702-05-05 | 5/16" | 5/16" | 1/2-20 | - |
| 27026 (2702-6) |
3/8" | 3/8" | 9/16-18 | 03066 (0306-6) |
| 27028 (2702-8) |
1/2" | 1/2" | 3/4-16 | 03068 (0306-8) |
| 270210 (2702-10) |
5/8" | 5/8" | 7/8-14 | 030610 (0306-10) |
| 270212 (2702-12) |
3/4" | 3/4" | 1-1/16-12 | 030612 (0306-12) |
| 270216 (2702-16) |
1" | 1" | 1-5/16-12 | 030616 (0306-16) |
| 270220 | 1-1/4" | 1-1/4" | 1-5/8-12 | 030620 (0306-20) |
| 2702-24-24 | 1-1/2" | 1-1/2" | 1-7/8-12 | - |
