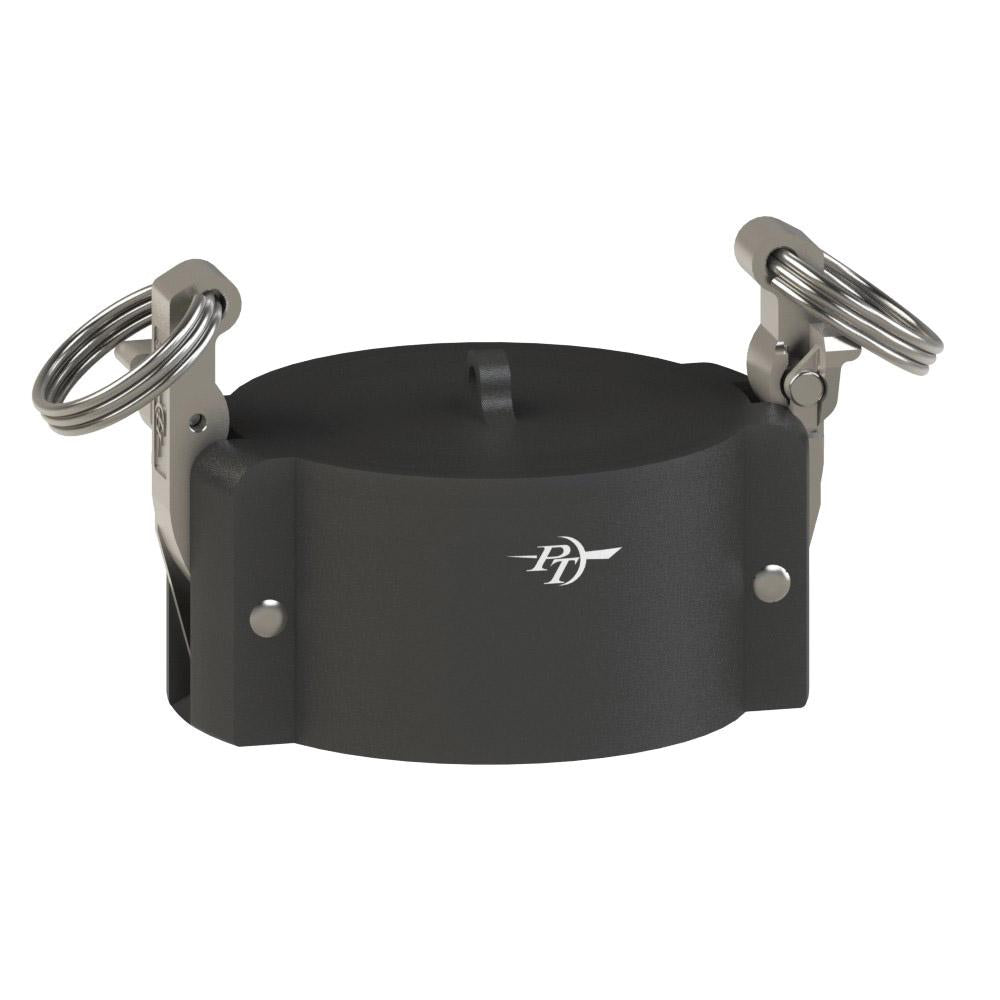

2701115L2 (15V SLII) by PT-Coupling | STA-LOK® II Cam & Groove Dust Cap | Type V | 1-1/2" Coupler | Polypropylene
PT Coupling
STA-LOK® II Cam & Groove (Camlock) Dust Cap | Type V | Polypropylene
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $46.92 |
| 40–79 | $42.43 |
| 80+ | $37.44 |
Discounts applied in cart/checkout.
Product Data:
Series:
Cam & Groove Type:
Type DC
Ends Configuration:
Material(s):
| Overview: | |||
|---|---|---|---|
|
|||
| Features & Applications: | |||
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Name |
Item # | Coupler Size |
O. D. with Cam Arms Extended (A) |
Outside Diameter (B) |
Overall Length (C) |
Chain Lug Extension (G) |
Max. Allowable Working Press. (PSI)* |
||
| 10V SLII | 2701110L2 | 1" | 5.10" | 2.44" | 1.60" | 0.62" | 100 PSI | ||
| 12V SLII | 2701112L2 | 1-1/4" | 6.86" | 3.26" | 1.89" | 0.60" | 100 PSI | ||
| 15V SLII | 2701115L2 | 1-1/2" | 7.16" | 3.56" | 1.96" | 0.86" | 100 PSI | ||
| 20V SLII | 2701120L2 | 2" | 7.54" | 3.94" | 2.25" | 0.76" | 100 PSI | ||
| 30V SLII | 2701130L2 | 3" | 9.56" | 5.46" | 2.27" | 1.03" | 50 PSI | ||
| 40V SLII | 2701140L2 | 4" | 10.66" | 6.56" | 2.34" | 0.99" | 50 PSI | ||
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
