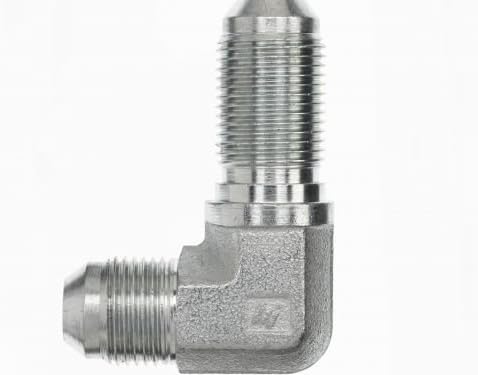

2701-05-05-FG by Brennan Inc. | -05 Male JIC x -05 Male JIC Bulkhead | 90° Elbow | Forged Steel
Brennan Inc.
Tube Fittings & Adapters: 2701 - Male JIC x Male JIC Bulkhead 90° Elbow
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $11.20 |
| 40–79 | $10.13 |
| 80+ | $8.94 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | Tube O.D. | B1 SAE37° | B2 SAE37° | B1 Drill | B2 Drill | M Length | L Length | Y Flats |
| 2701-02-02-FG | Forged Steel | 1/8" | 5/16-24" | 5/16-24" | 0.062" | 0.062" | 0.88" | 1.50" | 0.438" |
| 2701-03-03-FG | Forged Steel | 3/16" | 3/8-24" | 3/8-24" | 0.125" | 0.125" | 0.940" | 1.500" | 0.438" |
| 2701-04-04-FG | Forged Steel | 1/4" | 7/16-20" | 7/16-20" | 0.172" | 0.172" | 0.970" | 1.590" | 0.438" |
| 2701-05-05-FG | Forged Steel | 5/16" | 1/2-20" | 1/2-20" | 0.234" | 0.234" | 1.06" | 1.72" | 0.562" |
| 2701-06-06-FG | Forged Steel | 3/8" | 9/16-18" | 9/16-18" | 0.297" | 0.297" | 1.09" | 1.81" | 0.562" |
| 2701-08-06-FG | Forged Steel | - | - | - | - | - | - | - | - |
| 2701-08-08-FG | Forged Steel | 1/2" | 3/4-16" | 3/4-16" | 0.391" | 0.391" | 1.360" | 2.110" | 0.750" |
| 2701-10-10-FG | Forged Steel | 5/8" | 7/8-14" | 7/8-14" | 0.484" | 0.484" | 1.560" | 2.390" | 0.875" |
| 2701-12-12-FG | Forged Steel | 3/4" | 1-1/16-12" | 1-1/16-12" | 0.609" | 0.609" | 1.780" | 2.670" | 1.062" |
| 2701-16-16-FG | Forged Steel | 1" | 1-5/16-12" | 1-5/16-12" | 0.844" | 0.844" | 1.940" | 2.800" | 1.312" |
| 2701-20-20-FG | Forged Steel | 1-1/4" | 1-5/8-12" | 1-5/8-12" | 1.078" | 1.078" | 2.170" | 3.120" | 1.625" |
| 2701-24-24-FG | Forged Steel | 1-1/2" | 1-7/8-12" | 1-7/8-12" | 1.312" | 1.312" | 2.34" | 3.42" | 1.875" |
| 2701-32-32-FG | Forged Steel | - | - | - | - | - | - | - | - |
| 2701-04-04-B | Brass | 1/4" | 7/16-20" | 7/16-20" | 0.172" | 0.172" | 0.970" | 1.590" | 0.438" |
| 2701-08-08-B | Brass | 1/2" | 3/4-16" | 3/4-16" | 0.391" | 0.391" | 1.360" | 2.110" | 0.750" |
| 2701-03-03-SS | Stainless Steel | 3/16" | 3/8-24" | 3/8-24" | 0.125" | 0.125" | 0.940" | 1.500" | 0.438" |
| 2701-04-04-SS | Stainless Steel | 1/4" | 7/16-20" | 7/16-20" | 0.172" | 0.172" | 0.970" | 1.590" | 0.438" |
| 2701-06-06-SS | Stainless Steel | 3/8" | 9/16-18" | 9/16-18" | 0.297" | 0.297" | 1.09" | 1.81" | 0.562" |
| 2701-08-08-SS | Stainless Steel | 1/2" | 3/4-16" | 3/4-16" | 0.391" | 0.391" | 1.360" | 2.110" | 0.750" |
| 2701-10-10-SS | Stainless Steel | 5/8" | 7/8-14" | 7/8-14" | 0.484" | 0.484" | 1.560" | 2.390" | 0.875" |
| 2701-12-12-SS | Stainless Steel | 3/4" | 1-1/16-12" | 1-1/16-12" | 0.609" | 0.609" | 1.780" | 2.670" | 1.062" |
| 2701-16-16-SS | Stainless Steel | 1" | 1-5/16-12" | 1-5/16-12" | 0.844" | 0.844" | 1.940" | 2.800" | 1.312" |
