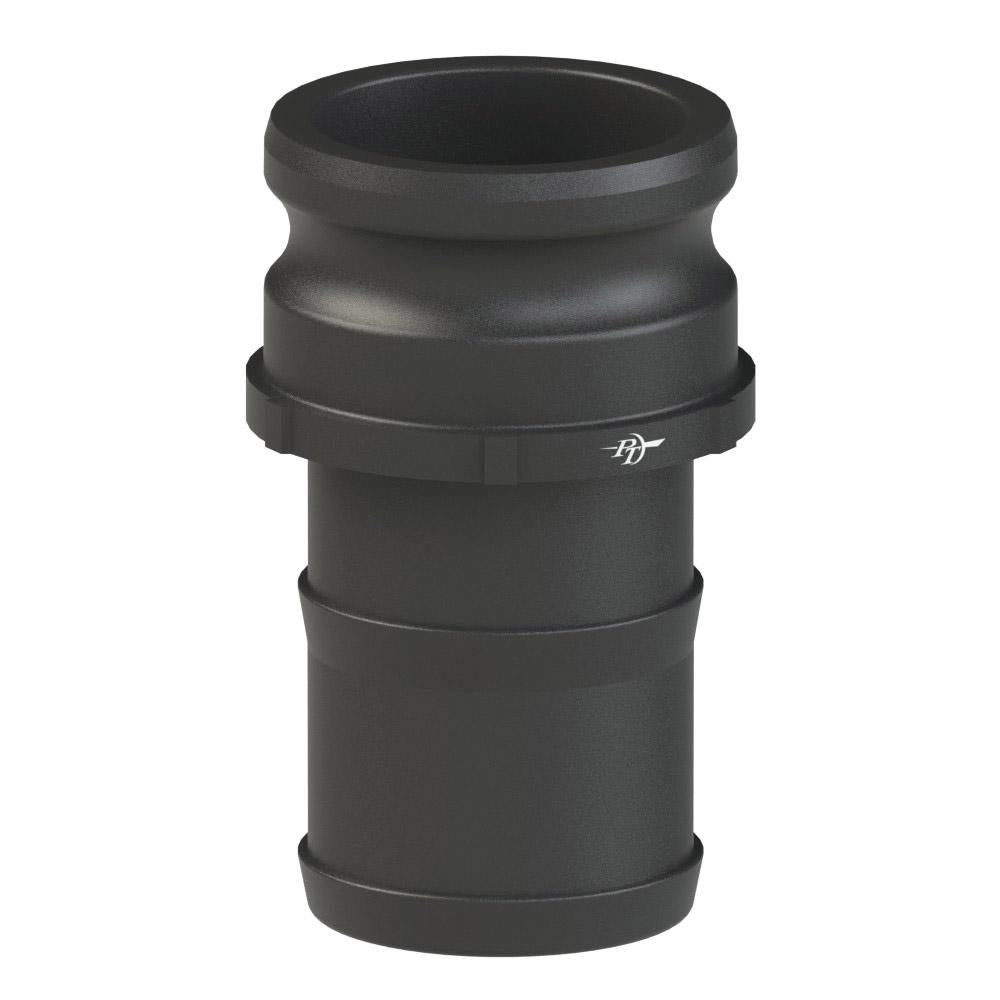

2700507 (07E) by PT-Coupling | Cam & Groove Fitting | Type E | 3/4" Adapter x 3/4" Hose Shank | Polypropylene

2700507 (07E) by PT-Coupling | Cam & Groove Fitting | Type E | 3/4" Adapter x 3/4" Hose Shank | Polypropylene

Minimum Order Quantity: 5 Units

Sale price$7.01

PT Coupling
Cam and Groove (Camlock) Fitting | Type E | Adapter x Hose Shank | Polypropylene

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Buy More, Save More!
Quantity Price Each
20–39 $6.59
40–79 $5.96
80+ $5.26
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Cam & Groove Type:

Type E

Ends Configuration:
  • 3/4in Male Cam & Groove
  • 3/4in Hose Barb
Overview:
  • PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features & Applications:
  • PT hose shanks are the most versatile for attaching to hose. The specially designed multibarbed shank allows for attachment via original PUNCH-LOK® center punch clamps, or by an interlocked PROGRIP™ C-50 ferrule or sleeve.
  • Glass-fiber reinforced for strength. Good abrasion and corrosion resistance. Good chemical resistance.
  • Color: Black
  • Use with water and coolants.
  • Couplings not interchangeable in the industry are sizes 8" through 12".
  • Made in the USA
Part
Name		 Item # Adapter
Size		 Hose Shank
Size		 Outside
Diameter
(B)		 Overall
Length
(C)		 Exposed
Length
(D)		 Inside
Diameter
(E)		 Engagement
Length		 Max. Allowable
Working Press.
(PSI)*
07E 2700507 3/4" 3/4" 1.26" 3.78" 1.46" 0.53" 0.97" 100 PSI
10E 2700510 1" 1" 1.63" 4.30" 1.8" 0.88" 1.19" 100 PSI
12E 2700512 1-1/4" 1-1/4" 2.00" 4.90" 2.35" 0.97" 1.44" 100 PSI
15E 2700515 1-1/2" 1-1/2" 2.14" 5.10" 2.15" 1.19" 1.48" 100 PSI
20E 2700520 2" 2" 2.64" 5.75" 2.40" 1.68" 1.75" 100 PSI
30E 2700530 3" 3" 3.70" 6.88" 2.53" 2.62" 1.84" 50 PSI
40E 2700540 4" 4" 4.71" 7.20" 2.60" 3.50" 1.87" 50 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
