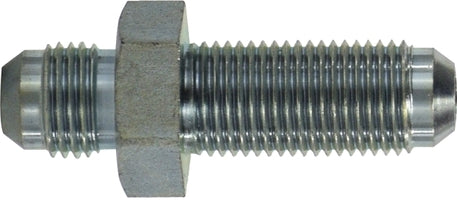

270055 by Midland | Hydraulic JIC Bulkhead Union | 1/2-20 Male JIC 37° Flare x 1/2-20 Male JIC 37° Flare | Steel
Minimum Order Quantity: 5 Units
Midland Industries
Hydraulic Adapters: JIC Bulkhead Union - Steel
Lock Nuts are no longer included on Midland Industries fittings. They must be purchased separately.
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $6.43 |
| 40–79 | $5.81 |
| 80+ | $5.13 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Specifications and Approvals:
| Specifications: | |||
|---|---|---|---|
|
|||
| Technical Info: | |||
| Crossover Series: | ||||
|---|---|---|---|---|
| 2700 | 2041R | WTX | 1260 | C5325 |
 |
||||
|---|---|---|---|---|
| Part Number | Male JIC 37° Flare (1) |
Male JIC 37° Flare (2) |
Male JIC 37° Flare Thread |
Lock Nut Part Number (Not Included - Must be Purchased Separately) |
| 270033 | 3/16" | 3/16" | 3/8-24 | - |
| 270044 (2700-4-4) |
1/4" | 1/4" | 7/16-20 | 03064 (0306-4) |
| 270055 (2700-5-5) |
5/16" | 5/16" | 1/2-20 | 03065 (0306-5) |
| 270066 (2700-6-6) |
3/8" | 3/8" | 9/16-18 | 03066 (0306-6) |
| 27008 (2700-8) |
1/2" | 1/2" | 3/4-16 | 03068 (0306-8) |
| 270010 (2700-10) |
5/8" | 5/8" | 7/8-14 | 030610 (0306-10) |
| 270012 (2700-12) |
3/4" | 3/4" | 1-1/16-12 | 030612 (0306-12) |
| 270014 (2700-14) |
7/8" | 7/8" | 1-3/16-12 | 030614 (0306-14) |
| 270016 (2700-16) |
1" | 1" | 1-5/16-12 | 030616 (0306-16) |
| 2700-LN-20-20 | 1-1/4" | 1-1/4" | 1-5/8-12 | 030620 (0306-20) |
| 270024 | 1-1/2" | 1-1/2" | 1-7/8-12 | - |
| 270032 | 2" | 2" | 2-1/2-12 | - |
