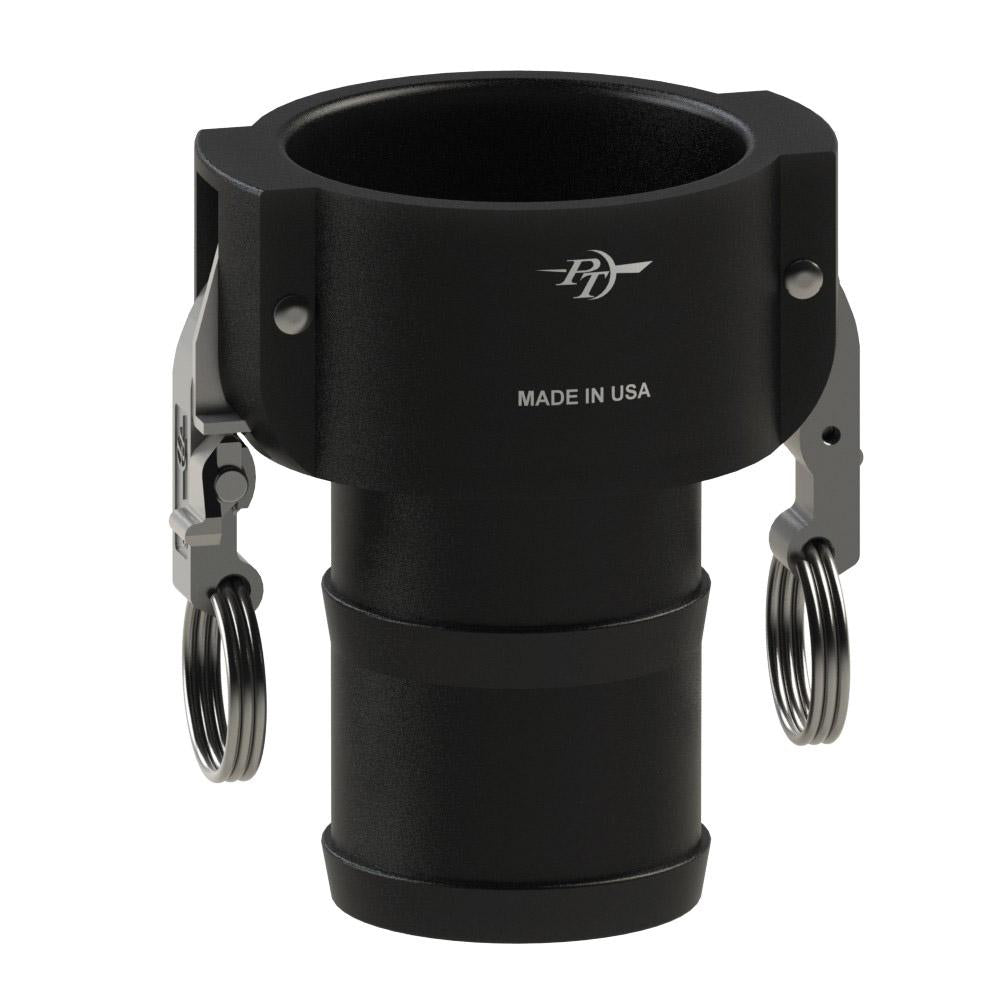

2700320L2 (20C SLII) by PT-Coupling | STA-LOK® II Cam & Groove Fitting | Type C | 2" Coupler x 2" Hose Shank | Polypropylene | Buna-N Seal
PT Coupling
STA-LOK® II Cam & Groove (Camlock) Fitting | Type C | Coupler x Hose Shank | Polypropylene | Buna-N Seal
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $38.39 |
| 40–79 | $34.71 |
| 80+ | $30.63 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Cam & Groove Type:
Type C
Ends Configuration:
Material(s):
Seal Material(s):
| Overview: | |||
|---|---|---|---|
|
|||
| Features & Applications: | |||
|
 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Name |
Item # | Coupler Size |
Hose Shank Size |
O. D. with Cam Arms Extended (A) |
Outside Diameter (B) |
Overall Length (C) |
Exposed Length (D) |
Inside Diameter (E) |
Min. Inside Diameter (E) |
Max. Allowable Working Press. (PSI)* |
| 10C SLII | 2700310L2 | 1" | 1" | 5.10" | 2.44" | 4.06" | 1.56" | 0.78" | 0.69" | 100 PSI |
| 12C-SLII | 2700312L2 | 1-1/4" | 1-1/4" | 6.86" | 3.26" | 4.44" | 1.84" | 0.97" | 0.88" | 100 PSI |
| 15C-SLII | 2700315L2 | 1-1/2" | 1-1/2" | 7.16" | 3.56" | 4.82" | 1.88" | 1.22" | 1.15 | 100 PSI |
| 20C-SLII | 2700320L2 | 2" | 2" | 7.54" | 3.94" | 5.53" | 2.15" | 1.71" | 1.60" | 100 PSI |
| 40C-SLII | 2700340L2 | 4" | 4" | 10.66" | 6.56" | 6.64" | 2.34" | 3.53" | 3.43" | 50 PSI |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
