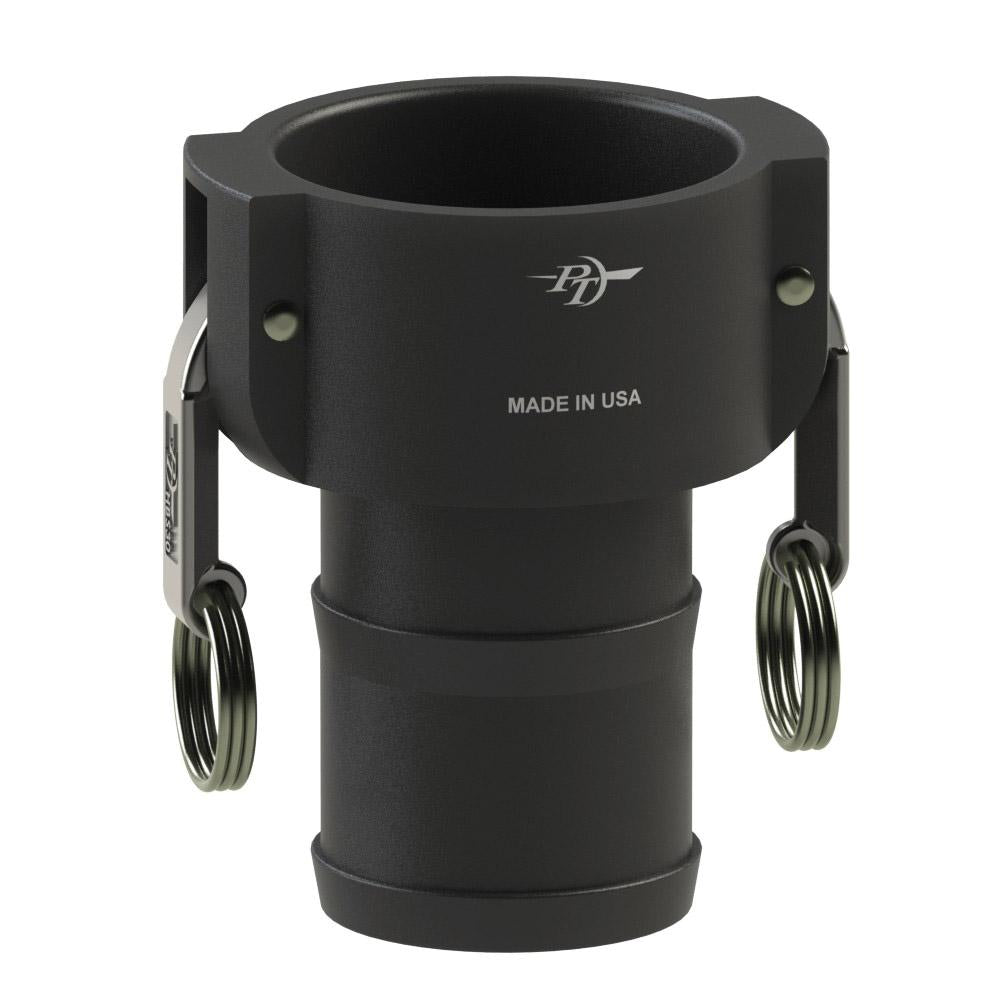

2700310 (10C) by PT-Coupling | Cam & Groove Fitting | Type C | 1" Coupler x 1" Hose Shank | Polypropylene | Buna-N Seal

2700310 (10C) by PT-Coupling | Cam & Groove Fitting | Type C | 1" Coupler x 1" Hose Shank | Polypropylene | Buna-N Seal

Sale price$16.43

PT Coupling
Cam and Groove (Camlock) Fitting | Type C | Coupler x Hose Shank | Polypropylene | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Buy More, Save More!
Quantity Price Each
10–39 $15.44
40–79 $13.97
80+ $12.32
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Cam & Groove Type:

Type C

Ends Configuration:
  • 1in Female Cam & Groove
  • 1in Hose Barb
Overview:
  • PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features & Applications:
  • PT's specially designed multi-barbed shank with interlocking ring allows for attachment via original PUNCH-LOK® center punch clamps, or by an interlocked PROGRIP™ C-50 ferrule or sleeve.
  • Glass-fiber reinforced for strength. Good abrasion and corrosion resistance. Good chemical resistance.
  • Color: Black
  • Use with water and coolants
  • Made in the USA
Part
Name		 Item # Coupler
Size		 Hose
Shank
Size		 O.D. with
Cam Arms
Extended
(A)		 Outside
Diameter
(B)		 Overall
Length
(C)		 Exposed
Length
(D)		 Inside
Diameter
(E)		 Min.
Inside
Diameter
(E)		 Engagement
Length		 Max. Allowable
Working Press.
(PSI)*		 Weight
07C 2700307 3/4" 3/4" 4.51" 2.11" 3.55" 1.25" 0.53" 0.40" 0.97" 100 PSI 0.22 lbs.
10C 2700310 1" 1" 5.10" 2.44" 4.06" 1.56" 0.78" 0.69" 1.19" 100 PSI 0.324 lbs.
12C 2700312 1-1/4" 1-1/4" 6.86" 3.26" 4.44" 1.84" 0.97" 0.88" 1.44" 100 PSI 0.541 lbs.
15C 2700315 1-1/2" 1-1/2" 7.16" 3.56" 4.82" 1.88" 1.22" 1.15" 1.48" 100 PSI 0.985 lbs.
20C 2700320 2" 2" 7.54" 3.94" 5.53" 2.15" 1.71" 1.60" 1.75" 100 PSI 0.708 lbs.
30C 2700330 3" 3" 9.56" 5.46" 6.32" 2.27" 2.65" 2.55" 1.84" 50 PSI 1.411 lbs.
40C 2700340 4" 4" 10.66" 6.56" 6.64" 2.34" 3.53" 3.43" 1.87" 50 PSI 1.658 lbs.

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
