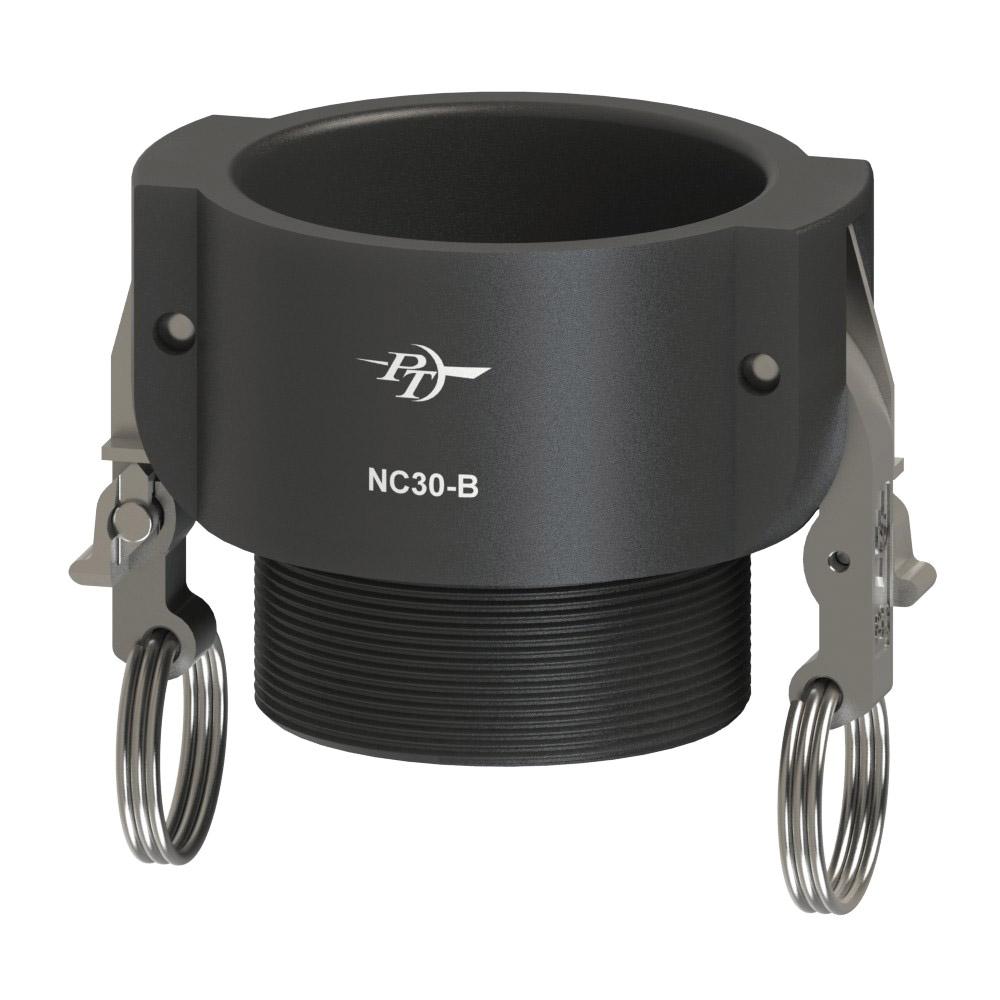

2700230L2 (30B SLII) by PT-Coupling | STA-LOK® II Cam & Groove Adapter | Type B | 3" Coupler x 3" Male NPT | Polypropylene | Buna-N Seal
PT Coupling
STA-LOK® II Cam & Groove (Camlock) Adapter | Type B | Coupler x Male NPT | Polypropylene | Buna-N Seal
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $41.88 |
| 40–79 | $37.87 |
| 80+ | $33.41 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Cam & Groove Type:
Type B
Ends Configuration:
Material(s):
Seal Material(s):
| Overview: | |||
|---|---|---|---|
|
|||
| Features & Applications: | |||
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Name |
Item # | Coupler Size |
Male NPT Thread |
O. D. with Cam Arms Extended (A) |
Outside Diameter (B) |
Overall Length (C) |
Exposed Length (D) |
Inside Diameter (E) |
Max. Allowable Working Press. (PSI)* |
| 10B SLII | 2700210L2 | 1" | 1" | 5.10" | 2.44" | 2.50" | 1.56" | 0.97" | 100 PSI |
| 12B SLII | 2700212L2 | 1-1/4" | 1-1/4" | 6.86" | 3.26" | 2.89" | 1.84" | 1.25" | 100 PSI |
| 15B SLII | 2700215L2 | 1-1/2" | 1-1/2" | 7.16" | 3.56" | 2.93" | 1.88" | 1.50" | 100 PSI |
| 20B SLII | 2700220L2 | 2" | 2" | 7.54" | 3.94" | 3.20" | 2.15" | 1.88" | 100 PSI |
| 30B SLII | 2700230L2 | 3" | 3" | 9.56" | 5.46" | 3.82" | 2.27" | 2.88" | 50 PSI |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
