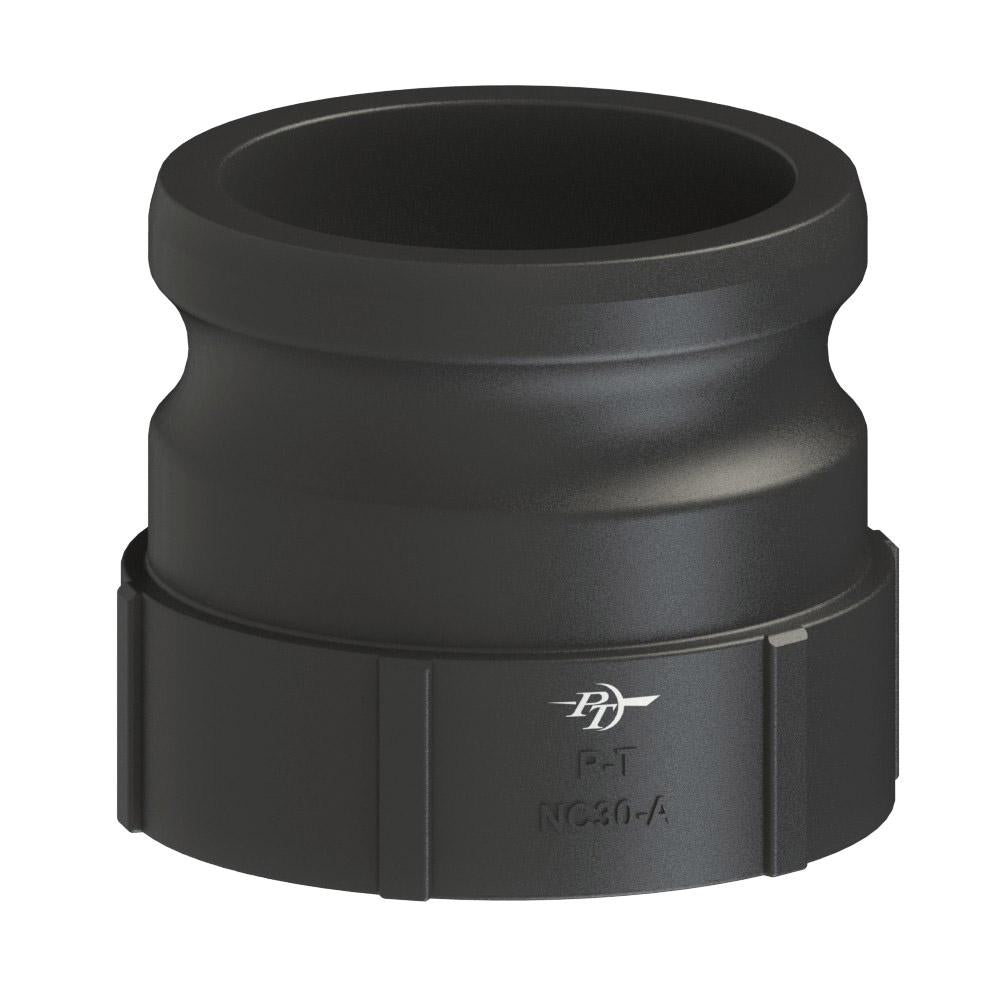

2700130 (30A) by PT-Coupling | Cam & Groove Adapter | Type A | 3" Adapter x 3" Female NPT | Polypropylene

2700130 (30A) by PT-Coupling | Cam & Groove Adapter | Type A | 3" Adapter x 3" Female NPT | Polypropylene

Sale price$18.84

PT Coupling
Cam and Groove (Camlock) Adapter | Type A | Adapter x Female NPT Thread | Polypropylene

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Buy More, Save More!
Quantity Price Each
10–39 $17.71
40–79 $16.01
80+ $14.13
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Cam & Groove Type:

Type A

Ends Configuration:
  • 3in Male Cam & Groove
  • 3in Female NPT
Overview:
  • PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features & Applications:
  • Glass-fiber reinforced for strength. Good abrasion and corrosion resistance. Good chemical resistance.
  • Color: Black
  • Use with water and coolants.
  • Made in the USA
Part Name Item # Adapter
Size		 Thread
(Female NPT)		 Overall
Length
(C)		 Inside
Diameter
(E)		 Across
Corners
(F)		 Chain Lug
Extension
(G)		 Engagement
Length		 Max. Allowable
Working Press.
(PSI)*		 Weight
07A 2700107 3/4" 3/4" 1.62" 0.75" 1.49" - 0.97" 100 PSI 0.07 lbs.
10A 2700110 1" 1" 1.91" 0.88" 1.76" 0.34" 1.19" 100 PSI 0.1 lbs.
12A 2700112 1-1/4" 1-1/4" 2.16" 1.04" 2.19" 0.34" 1.44" 100 PSI 0.125 lbs.
15A 2700115 1-1/2" 1-1/2" 2.29" 1.35" 2.44" 0.33" 1.48" 100 PSI 0.18 lbs.
20A 2700120 2" 2" 2.54" 1.72" 2.92" 0.31" 1.75" 100 PSI 0.23 lbs.
30A 2700130 3" 3" 2.84" 2.80" 4.22" 0.44" 1.84" 50 PSI 0.41 lbs.
40A 2700140 4" 4" 3.16" 3.78" 5.41" 0.39" 1.87" 50 PSI 0.785 lbs.

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
