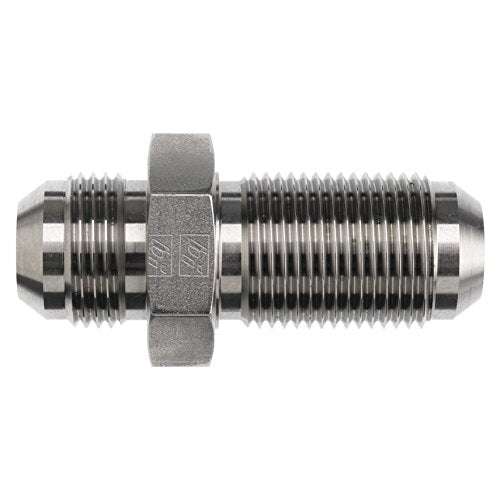

2700-12-12-SS by Brennan Inc. | -12 Male JIC x -12 Male JIC Bulkhead | Straight | Stainless Steel
Brennan Inc.
Tube Fittings & Adapters: 2700 - Male JIC x Male JIC Bulkhead Straight
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | Material | Tube OD | B1 SAE 37° | B2 SAE 37° | B1 Drill | B2 Drill | L Length | C Hex |
| 2700-03-03 | Steel | 3/16" | 3/8-24" | 3/8-24" | 0.125" | 0.125" | 1.90" | 0.625" |
| 2700-06-06 | Steel | 3/8" | 9/16-18" | 9/16-18" | 0.297" | 0.297" | 2.18" | 0.812" |
| 2700-08-08 | Steel | 1/2" | 3/4-16" | 3/4-16" | 0.391" | 0.391" | 2.44" | 1.000" |
| 2700-10-10 | Steel | 5/8" | 7/8-14" | 7/8-14" | 0.484" | 0.484" | 2.74" | 1.125" |
| 2700-14-14 | Steel | 7/8" | 1-3/16-12" | 1-3/16-12" | 0.719" | 0.719" | 3.120" | 1.500" |
| 2700-16-12 | Steel | 1" | 1-5/16-12" | 1-1/16-12" | 0.844" | 0.609" | 3.14" | 1.625" |
| 2700-16-16 | Steel | 1" | 1-5/16-12" | 1-5/16-12" | 0.844" | 0.844" | 3.14" | 1.625" |
| 2700-20-20 | Steel | 1-1/4" | 1-5/8-12" | 1-5/8-12" | 1.078" | 1.078" | 3.31" | 1.875" |
| 2700-24-24 | Steel | 1-1/2" | 1-7/8-12" | 1-7/8-12" | 1.312" | 1.312" | 3.52" | 2.125" |
| 2700-32-32 | Steel | 2" | 2-1/2-12" | 2-1/2-12" | 1.781" | 1.781" | 4.20" | 2.750" |
| 2700-04-04-B | Brass | 1/4" | 7/16-20" | 7/16-20" | 0.172" | 0.172" | 2.07" | 0.688" |
| 2700-06-06-B | Brass | 3/8" | 9/16-18" | 9/16-18" | 0.297" | 0.297" | 2.18" | 0.812" |
| 2700-08-08-B | Brass | 1/2" | 3/4-16" | 3/4-16" | 0.391" | 0.391" | 2.44" | 1.000" |
| 2700-02-02-SS | Stainless Steel | 1/8" | 5/16-24" | 5/16-24" | 0.062" | 0.062" | 1.870" | 0.562" |
| 2700-03-03-SS | Stainless Steel | 3/16" | 3/8-24" | 3/8-24" | 0.125" | 0.125" | 1.90" | 0.625" |
| 2700-04-04-SS | Stainless Steel | 1/4" | 7/16-20" | 7/16-20" | 0.172" | 0.172" | 2.07" | 0.688" |
| 2700-05-05-SS | Stainless Steel | 5/16" | 1/2-20" | 1/2-20" | 0.234" | 0.234" | 2.070" | 0.750" |
| 2700-06-06-SS | Stainless Steel | 3/8" | 9/16-18" | 9/16-18" | 0.297" | 0.297" | 2.18" | 0.812" |
| 2700-08-08-SS | Stainless Steel | 1/2" | 3/4-16" | 3/4-16" | 0.391" | 0.391" | 2.44" | 1.000" |
| 2700-10-10-SS | Stainless Steel | 5/8" | 7/8-14" | 7/8-14" | 0.484" | 0.484" | 2.74" | 1.125" |
| 2700-12-12-SS | Stainless Steel | 3/4" | 1-1/16-12" | 1-1/16-12" | 0.609" | 0.609" | 3.09" | 1.375" |
| 2700-16-16-SS | Stainless Steel | 1" | 1-5/16-12" | 1-5/16-12" | 0.844" | 0.844" | 3.14" | 1.625" |
| 2700-20-20-SS | Stainless Steel | 1-1/4" | 1-5/8-12" | 1-5/8-12" | 1.078" | 1.078" | 3.31" | 1.875" |
| 2700-24-24-SS | Stainless Steel | 1-1/2" | 1-7/8-12" | 1-7/8-12" | 1.312" | 1.312" | 3.52" | 2.125" |
| 2700-32-32-SS | Stainless Steel | 2" | 2-1/2-12" | 2-1/2-12" | 1.781" | 1.781" | 4.20" | 2.750" |
