BS027 - #27 Beltservice 4 Ply Poly 180 Black HD Nitrile FBS Conveyor Belt

$10.00 IS FOR A PRODUCT SAMPLE
-or-
REQUEST A FREE BELT ASSEMBLY QUOTE

Use [Add to cart] to purchase a sample piece of belting which will put a $10 credit on your account if you decide to order your belt from BeltSmart. Limit 3 per customer or $30.00 total. Product samples are shipped priority mail.

Use [Request a Laced or Endless Belt Quote] to have our customer service work up a quote with mechanical lace, open-ended, or vulcanized endless. Our team of belt specialists are on hand during regular business hours to answer questions and help with any questions you may have.

If you are unsure what your belting is and would like us to identify it, please send us a sample of the belting to the address given in our [about us] page. Include name, company, phone, address and dimensions to 1/8" for width and length.

Applications:
Metal stampings Automotive parts Sheet steel Medium-capacity transmission belt
Features:
These belts are recommended for handling metal stampings, automotive parts, sheet steel, and any application requiring very high oil resistance. Features rugged, high-strength polyester carcass; suitable for medium-capacity transmission belt where oil, grease or chemicals are present. Flexible, yet will withstand cutting, gouging, and abrasion.

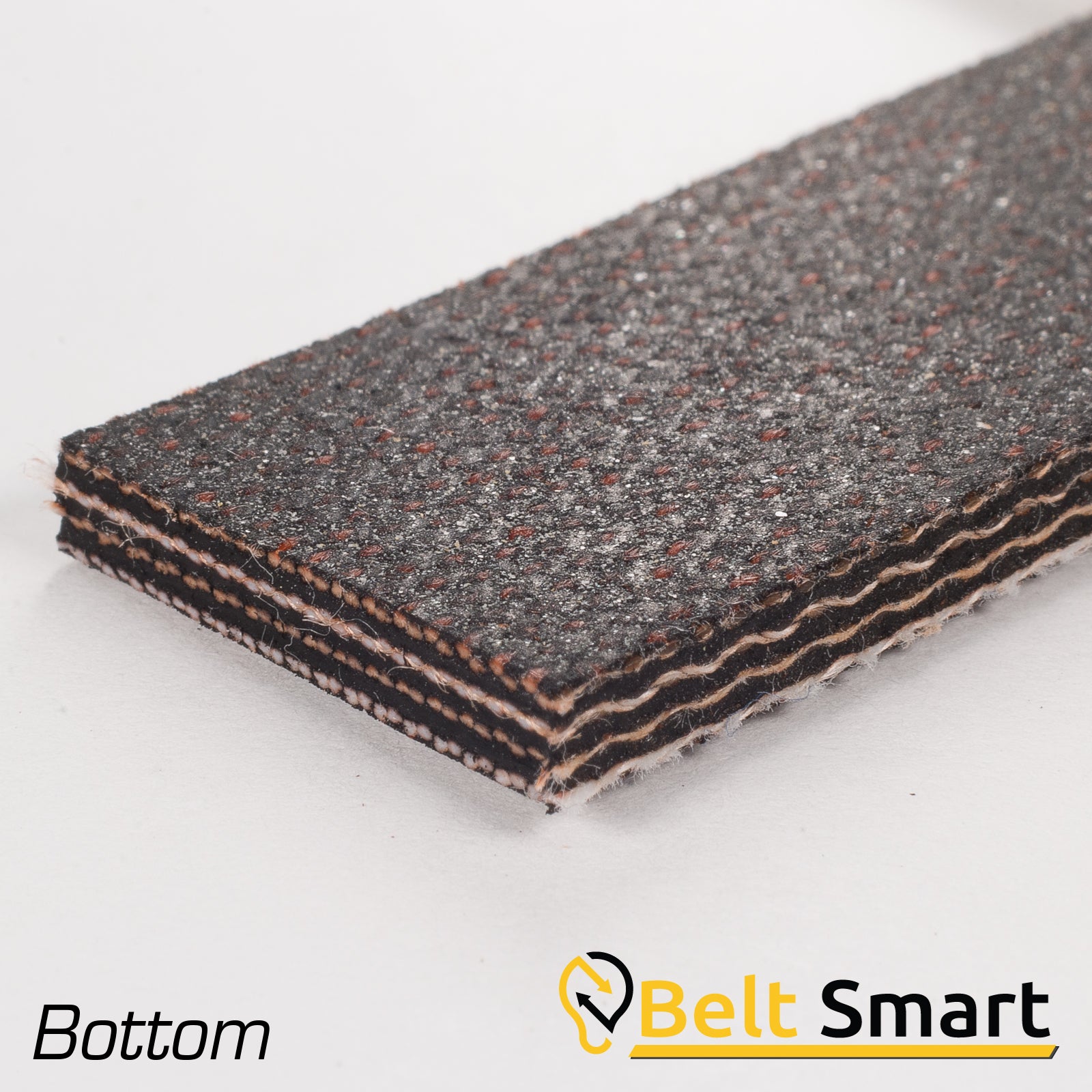

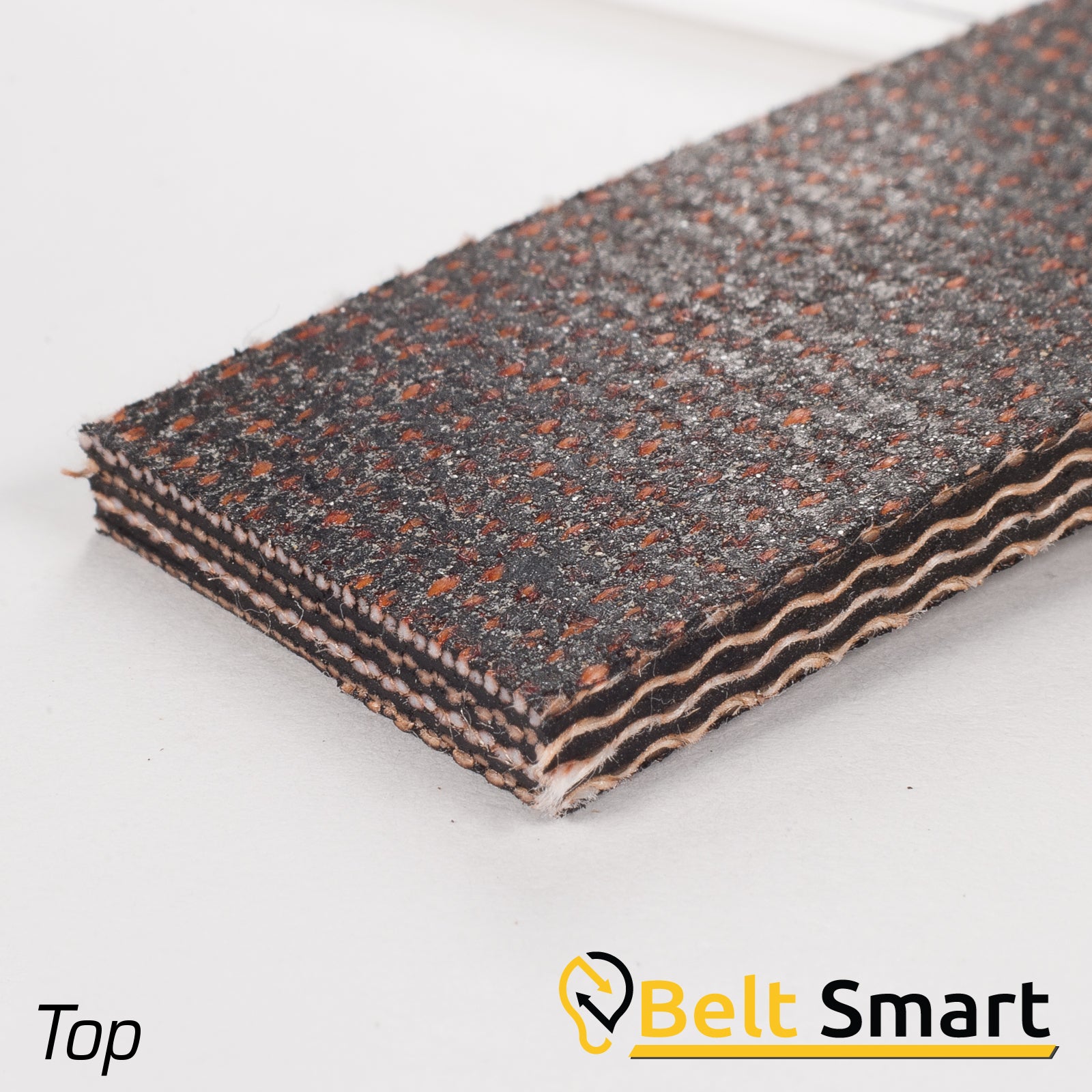

	4 Ply Poly 180 Black HD Nitrile FBS Pt No.: 27	5 Ply Poly 225 Black HD Nitrile FBS Pt No.: 28
Thickness	5/32"	11/64"
Covers	FBS
Carcass	45 lbs. per ply Polyester
Working Tension Per Inch Width	180 lbs.	225 lbs.
Approx. Weight Lbs. Per Inch Width	.088 lbs.	.110 lbs.
Min. Pulley Diameter	2"	3"
Temperature Range	0 deg. F / 250 deg. F
Clipper Lace	#2	#3
Alligator Lace	#20	#20

FBS = Friction Both Sides
