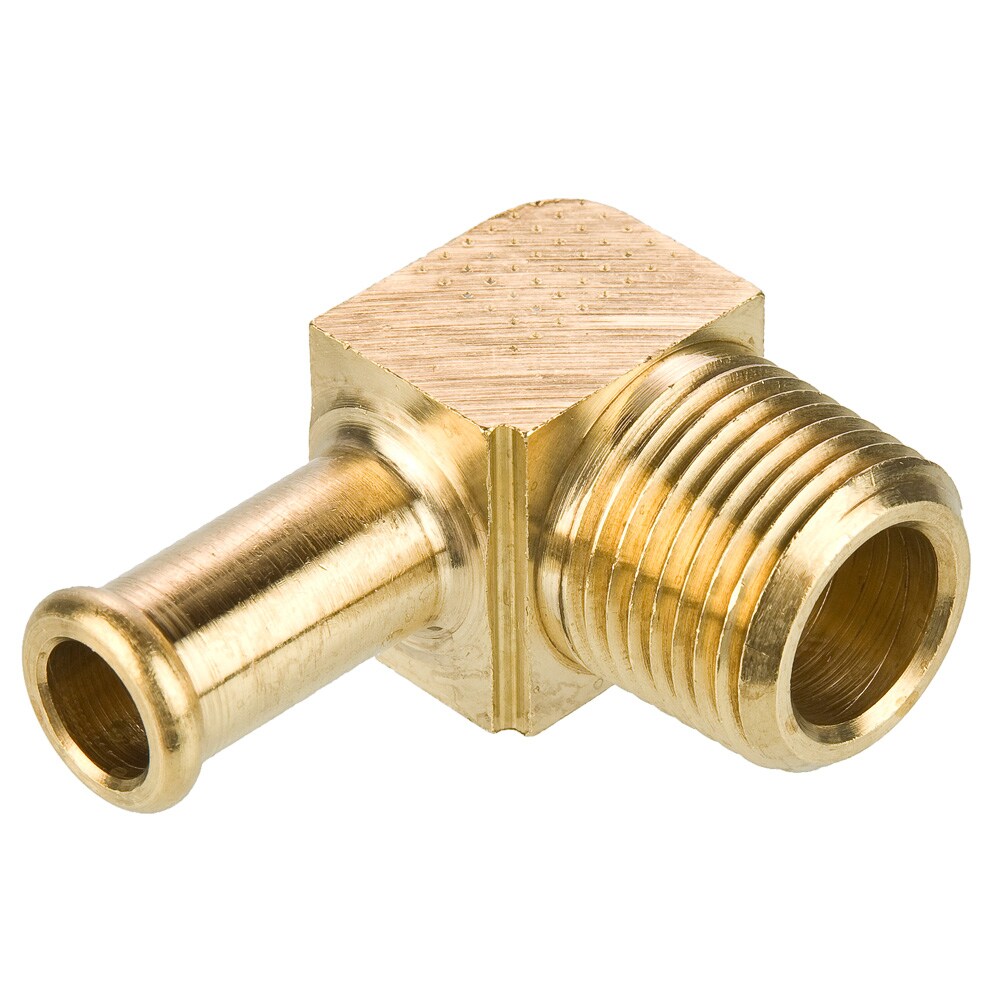

269HB-10-4 by Parker | Hose Barb Fittings | 5/8" Beaded Hose Barb x 1/4" Male Pipe Thread | 90° Elbow | Brass | Pack of 10
by Parker Hannifin
Hose Barb Fittings:Beaded Hose Barb 90° Elbow Tube to Male Pipe 269HB
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $136.48 |
| 20–59 | $123.41 |
| 60+ | $108.89 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Applications: |
|
| Specification: | |
| Temperature Range: | -40° to +160° F (-40° to +71.1° C) |
| Pressure Range: | Up to 150 PSI (10.3 bar) |
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | ID Hose Size | Pipe Thread | L | M | N | Flow Diameter (D) |
| 269HB-6-6 | 3/8" | 3/8" | 1.19" | .78" | .88" | .281" |
| 269HB-8-4 | 1/2" | 1/4" | 1.16" | .78" | .99" | .310" |
| 269HB-8-6 | 1/2" | 3/8" | 1.16" | .78" | 1.08" | .406" |
| 269HB-8-8 | 1/2" | 1/2" | 1.28" | .78" | 1.25" | .406" |
| 269HB-10-4 | 5/8" | 1/4" | 1.13" | .78" | .99" | .312" |
| 269HB-10-6 | 5/8" | 3/8" | 1.16" | .78" | .99" | .406" |
| 269HB-10-8 | 5/8" | 1/2" | 1.28" | .78" | 1.25" | .501" |
| 269HB-12-8 | 3/4" | 1/2" | 1.28" | .78" | 1.25" | .563" |
| 269HB-12-12 | 3/4" | 3/4" | 1.33" | .78" | 1.27" | .625" |
