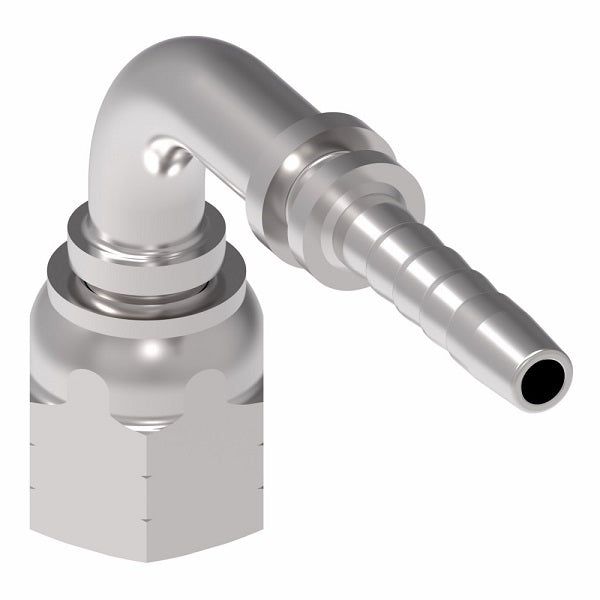

26791-04-04ZF Winner by Danfoss | Female JIC 37° Swivel 90° Elbow 2-Piece Hose Crimp Fitting | -04 Female JIC 37° Swivel x -04 Hose Barb | Steel
Winner by Danfoss
Female JIC 37° Swivel 2-Piece Hose Crimp Fitting - Female JIC 37° Swivel x Hose Barb - 90° Elbow
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $13.99 |
| 40–79 | $12.65 |
| 80+ | $11.16 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
Compatible Series:
| Features: | |||
|---|---|---|---|
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Terminal End Dash Size |
Thread | DN | Hose Size |
A | D Cut Off Factor |
EØ | H | Hex 1 |
| 26791-04-04ZF | -04 | 7/16"-20 | 6 | -04 | 2.28" | 1.18" | 0.16" | 1.04" | 14mm |
| 26791-06-04ZF | -06 | 9/16"-18 | 6 | -04 | 2.28" | 1.18" | 0.16" | 1.06" | 19mm |
| 26791-06-06ZF | -06 | 9/16"-18 | 10 | -06 | 2.54" | 1.36" | 0.28" | 1.24" | 19mm |
| 26791-08-08ZF | -08 | 3/4"-16 | 12 | -08 | 2.80" | 1.56" | 0.39" | 1.57" | 22mm |
| 26791-10-08ZF | -10 | 7/8"-14 | 12 | -08 | 2.80" | 1.56" | 0.39" | 1.65" | 27mm |
| 26791-10-10ZF | -10 | 7/8"-14 | 16 | -10 | 3.27" | 1.93" | 0.47" | 1.87" | 27mm |
| 26791-12-12ZF | -12 | 1.1/16"-12 | 20 | -12 | 3.66" | 2.15" | 0.59" | 2.11" | 32mm |
| 26791-16-16ZF | -16 | 1.5/16"-12 | 25 | -16 | 4.65" | 2.80" | 0.83" | 2.60" | 41mm |
|
26791-04-04H21ZF (21mm Drop) |
-04 | 7/16"-20 | 6 | -04 | 2.18" | 1.07" | 0.15" | 0.83" | 14mm |
|
26791-06-04H23ZF (23mm Drop) |
-06 | 9/16"18 | 6 | -04 | 2.18" | 1.07" | 0.15" | 0.91" | 19mm |
|
26791-06-06H23ZF (23mm Drop) |
-06 | 9/16"-18 | 10 | -06 | 2.43" | 1.25" | 0.27" | 0.91" | 19mm |
|
26791-06-06H54ZF (54mm Drop) |
-06 | 9/16"-18 | 10 | -06 | 2.54" | 1.36" | 0.27" | 2.13" | 19mm |
|
26791-08-06H29ZF (29mm Drop) |
-08 | 3/4"-16 | 10 | -06 | 2.7" | 1.52" | 0.27" | 1.14" | 22mm |
|
26791-08-08H29ZF (29mm Drop) |
-08 | 3/4"-16 | 12 | -08 | 3.09" | 1.85" | 0.39" | 1.14" | 22mm |
|
26791-10-08H32ZF (32mm Drop) |
-10 | 7/8"-14 | 12 | -08 | 2.99" | 1.75" | 0.39" | 1.29" | 27mm |
|
26791-10-10H32ZF (32mm Drop) |
-10 | 7/8"-14 | 16 | -10 | 3.29" | 1.95" | 0.47" | 1.26" | 27mm |
|
26791-12-10H48ZF (48mm Drop) |
-12 | 1-1/16"-12 | 16 | -10 | 3.27" | 1.93" | 0.47" | 1.89" | 32mm |
|
26791-12-10H96ZF (96mm Drop) |
-12 | 1-1/16"-12 | 16 | -10 | 3.27" | 1.93" | 0.47" | 3.78" | 32mm |
|
26791-12-12H48ZF (48mm Drop) |
-12 | 1-1/16"-12 | 20 | -12 | 3.65" | 2.14" | 0.59" | 1.89" | 32mm |
|
26791-12-12H96ZF (96mm Drop) |
-12 | 1-1/16"-12 | 20 | -12 | 3.66" | 2.15" | 0.59" | 3.78" | 32mm |
|
26791-16-16H56ZF (56mm Drop) |
-16 | 1-5/16"-12 | 25 | -16 | 4.66" | 2.81" | 0.82" | 2.2" | 41mm |
