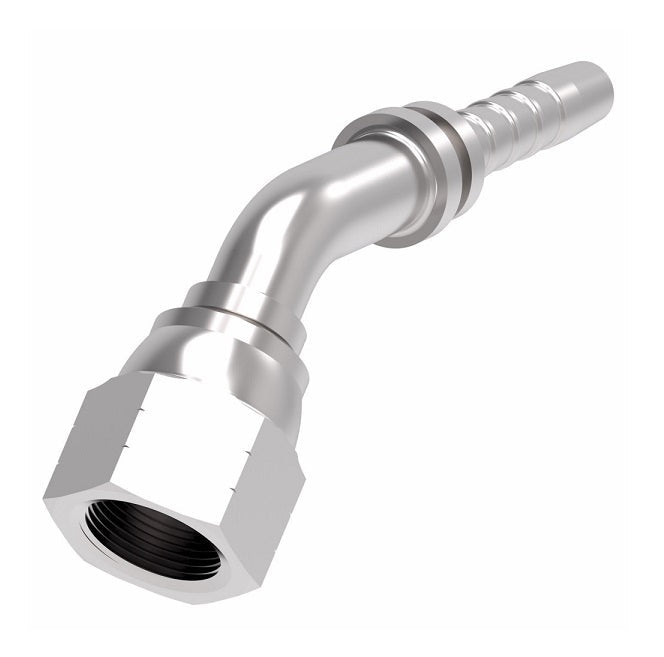

26741-10-10ZF Winner by Danfoss | Female JIC 37° Swivel 45° Elbow 2-Piece Hose Crimp Fitting | -10 Female JIC 37° Swivel x -10 Hose Barb | Steel
Winner by Danfoss
Female JIC 37° Swivel 2-Piece Hose Crimp Fitting - Female JIC 37° Swivel x Hose Barb - 45° Elbow
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $20.74 |
| 40–79 | $18.75 |
| 80+ | $16.55 |
Discounts applied in cart/checkout.
Product Data:
Shape:
45 Degree
Ends Configuration:
Material(s):
Compatible Series:
| Features: | |||
|---|---|---|---|
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Terminal End Dash Size |
Thread | DN | Hose Size |
A | D Cut Off Factor |
EØ | H | Hex 1 |
| 26741-04-04ZF | -04 | 7/16"-20 | 6 | -04 | 2.48" | 1.38" | 0.16" | 0.51" | 14mm |
| 26741-06-06ZF | -06 | 9/16"-18 | 10 | -06 | 2.71" | 1.53" | 0.28" | 0.58" | 19mm |
| 26741-08-08ZF | -08 | 3/4"-16 | 12 | -08 | 3.02" | 1.78" | 0.39" | 0.75" | 22mm |
| 26741-10-10ZF | -10 | 7/8"-14 | 16 | -10 | 3.48" | 2.14" | 0.47" | 0.87" | 27mm |
| 26741-12-12ZF | -12 | 1-1/16"-12 | 20 | -12 | 3.85" | 2.33" | 0.59" | 0.95" | 32mm |
| 26741-16-16ZF | -16 | 1-5/16"-12 | 25 | -16 | 4.78" | 2.93" | 0.83" | 1.13" | 41mm |
|
26741-04-04H10ZF (10mm Drop) |
-04 | 7/16"-12 | 6 | -04 | 2.32" | 1.22" | 0.15" | 0.39" | 14mm |
|
26741-06-04H11ZF (11mm Drop) |
-06 | 9/16"-18 | 6 | -04 | 2.36" | 1.26" | 0.15" | 0.43" | 19mm |
|
26741-06-06H11ZF (11mm Drop) |
-06 | 6/16"18 | 10 | -06 | 2.59" | 1.41" | 0.27" | 0.43" | 19mm |
|
26741-08-06TZF (with Captive Nut) |
-08 | 3/4"-16 | 10 | -06 | 2.77" | 1.59" | 0.27" | 0.59" | 22mm |
|
26741-08-08H15ZF (15mm Drop) |
-08 | 3/4"-16 | 12 | -08 | 3.11" | 1.87" | 0.39" | 0.59" | 22mm |
|
26741-10-10H16ZF (16mm Drop) |
-10 | 7/8"-14 | 16 | -10 | 3.44" | 2.10" | 0.47" | 0.63" | 27mm |
|
26741-12-12H21ZF (21mm Drop) |
-12 | 1-1/16"-12 | 20 | -12 | 3.76" | 2.24" | 0.59" | 0.83" | 32mm |
|
26741-16-16H24ZF (24mm Drop) |
-16 | 1-5/16"-12 | 25 | -16 | 4.7" | 2.85" | 0.82" | 0.94" | 41mm |
