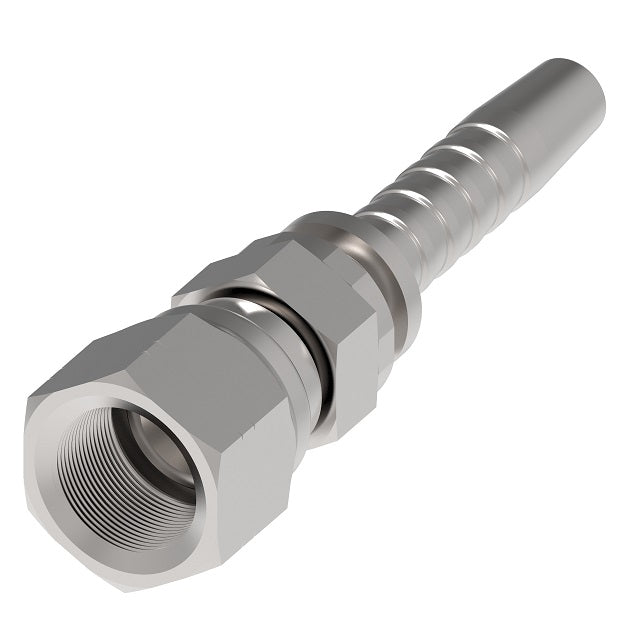

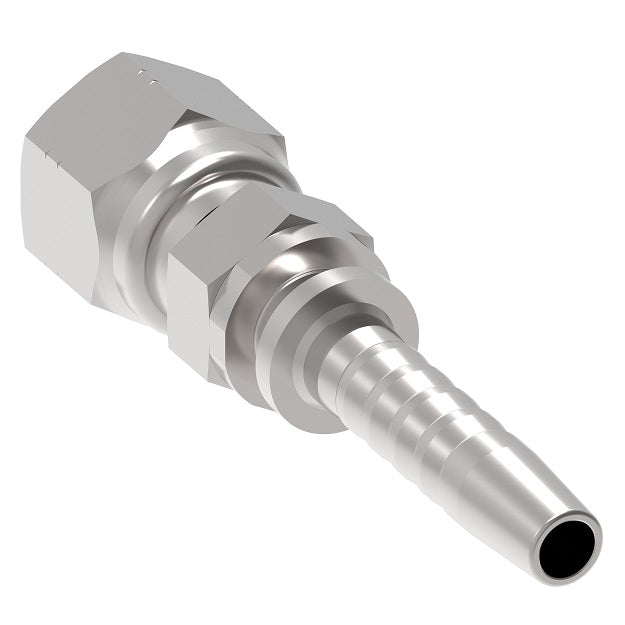

26711D-06-06ZF Winner by Danfoss | Female 37° JIC Swivel 2-Piece Hose Crimp Fitting (with Backup Hex) | -06 Female 37° JIC Swivel x -06 Hose Barb | Steel
Winner by Danfoss
Female 37° JIC Swivel 2-Piece Hose Crimp Fitting - Female 37° JIC Swivel x Hose Barb - Straight
Note: This part has a backup hex.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $11.92 |
| 40–79 | $10.78 |
| 80+ | $9.51 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Ends Configuration:
Material(s):
Specifications and Approvals:
Compatible Series:
| Features: | |||
|---|---|---|---|
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Terminal End Dash Size |
Thread | DN | Hose Size |
A | D Cut Off Factor |
EØ | Hex 1 |
Hex 2 |
| 26711D-04-04ZF | -04 | 7/16-20 | 6 | -04 | 2.24" | 1.14" | 0.16" | 14mm | 14mm |
| 26711D-06-04ZF | -06 | 9/16-18 | 6 | -04 | 2.32" | 1.22" | 0.15" | 19mm | 19mm |
| 26711D-06-06ZF | -06 | 9/16-18 | 10 | -06 | 2.40" | 1.22" | 0.27" | 19mm | 19mm |
| 26711D-08-06ZF | -08 | 3/4-16 | 10 | -06 | 2.60" | 1.42" | 0.27" | 22mm | 22mm |
| 26711D-08-08ZF | -08 | 3/4-16 | 12 | -08 | 2.64" | 1.40" | 0.38" | 22mm | 22mm |
| 26711D-10-08ZF | -10 | 7/8-14 | 12 | -08 | 2.78" | 1.54" | 0.39" | 27mm | 27mm |
| 26711D-10-10ZF | -10 | 7/8-14 | 16 | -10 | 2.40" | 1.06" | 0.47" | 27mm | 27mm |
| 26711D-12-10ZF | -12 | 1-1/16-12 | 16 | -10 | 3.13" | 1.79" | 0.47" | 32mm | 32mm |
| 26711D-12-12ZF | -12 | 1-1/16-12 | 20 | -12 | 3.33" | 1.81" | 0.59" | 32mm | 32mm |
| 26711D-12-16ZF | -12 | 1-3/16-12 | 25 | -16 | 3.74" | 1.89" | 0.82" | 32mm | 36mm |
| 26711D-16-12ZF | -16 | 1-5/16-12 | 20 | -12 | 3.41" | 1.89" | 0.59" | 41mm | 41mm |
| 26711D-16-16ZF | -16 | 1-5/16-12 | 25 | -16 | 3.81" | 1.96" | 0.82" | 41mm | 41mm |
