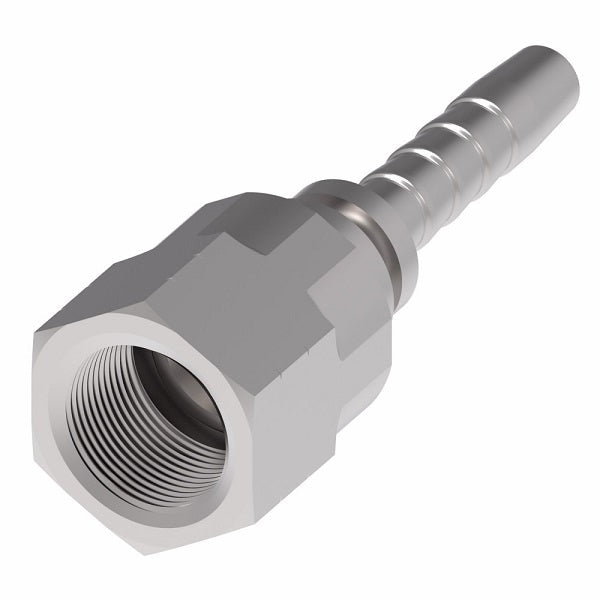

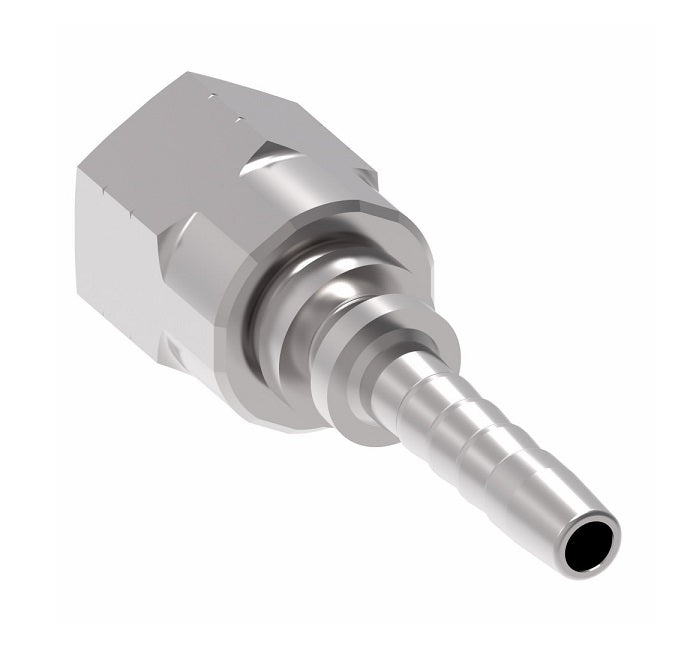

26711-12-12ZF Winner by Danfoss | Female JIC 37° Swivel 2-Piece Hose Crimp Fitting | -12 Female JIC 37° Swivel x -12 Hose Barb | Steel
Winner by Danfoss
Female JIC 37° Swivel 2-Piece Hose Crimp Fitting - Female JIC 37° Swivel x Hose Barb - Straight
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $13.44 |
| 40–79 | $12.16 |
| 80+ | $10.73 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Features: | |||
|---|---|---|---|
|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | Terminal End Dash Size |
Thread | DN | Hose Size |
A | D Cut Off Factor |
EØ | Hex 1 |
| 26711-04-04ZF | -04 | 7/16"-20 | 6 | -04 | 1.69" | 0.59" | 0.16" | 14mm |
| 26711-06-04ZF | -06 | 9/16"-18 | 6 | -04 | 1.71" | 0.61" | 0.16" | 19mm |
| 26711-06-06ZF | -06 | 9/16"-18 | 10 | -06 | 1.79" | 0.61" | 0.28" | 19mm |
| 26711-08-06ZF | -08 | 3/4"-16 | 10 | -06 | 1.87" | 0.69" | 0.28" | 22mm |
| 26711-08-08ZF | -08 | 3/4"-16 | 12 | -08 | 1.97" | 0.73" | 0.39" | 22mm |
| 26711-10-08ZF | -10 | 7/8"-14 | 12 | -08 | 1.99" | 0.75" | 0.39" | 27mm |
| 26711-10-10ZF | -10 | 7/8"-14 | 16 | -10 | 2.11" | 0.77" | 0.47" | 27mm |
| 26711-12-12ZF | -12 | 1-1/16"-12 | 20 | -12 | 2.36" | 0.85" | 0.59" | 32mm |
| 26711-16-16ZF | -16 | 1-5/16"-12 | 25 | -16 | 2.76" | 0.91" | 0.83" | 41mm |
