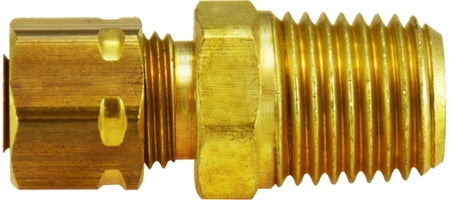

26182 by Midland | Captive Sleeve Compression Fitting | 1/4" Tube OD x 1/2" Male NPTF | Adapter | Brass
Minimum Order Quantity: 5 Units
Midland Industries
Brass Fitting - Captive Sleeve Compression Fitting - Male Adapter - Captive Sleeve x Male NPTF - Brass
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $5.57 |
| 40–79 | $5.04 |
| 80+ | $4.45 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
| Crossover Series: | ||
|---|---|---|
| 68SA | CS68 | 68CA |
| Part Number | Size |
|---|---|
| 26175 | 1/8" x 1/16" |
| 26176 (26-176) |
1/8" x 1/8" |
| 26177 (26-177) |
3/16" x 1/8" |
| 26178 | 3/16" x 1/4" |
| 26179 (26-179) |
1/4" x 1/8" |
| 26180 (26-180) |
1/4" x 1/4" |
| 26180L* | 1/4" x 1/4" |
| 26181 (26-181) |
1/4" x 3/8" |
| 26182 | 1/4" x 1/2" |
| 26183 (26-183) |
5/16" x 1/8" |
| 26184 (26-184) |
5/16" x 1/4" |
| 26188 (26-188) |
3/8" x 1/4" |
| 26189 (26-189) |
3/8" x 3/8" |
| 26190 (26-190) |
3/8" x 1/2" |
| 26193 | 1/2" x 1/4" |
| 26194 | 1/2" x 3/8" |
| 26182 (26-195) |
1/2" x 1/2" |
| 26198 | 5/8" x 1/2" |
* "L" at the end of a Part# means Light Pattern: These fittings are completely interchangeable with full pattern fittings, but have been modified in some way. This modification is usually in the length of the pipe threads. Used in plumbing and light industrial applications.
Dimension data can change without notice.
