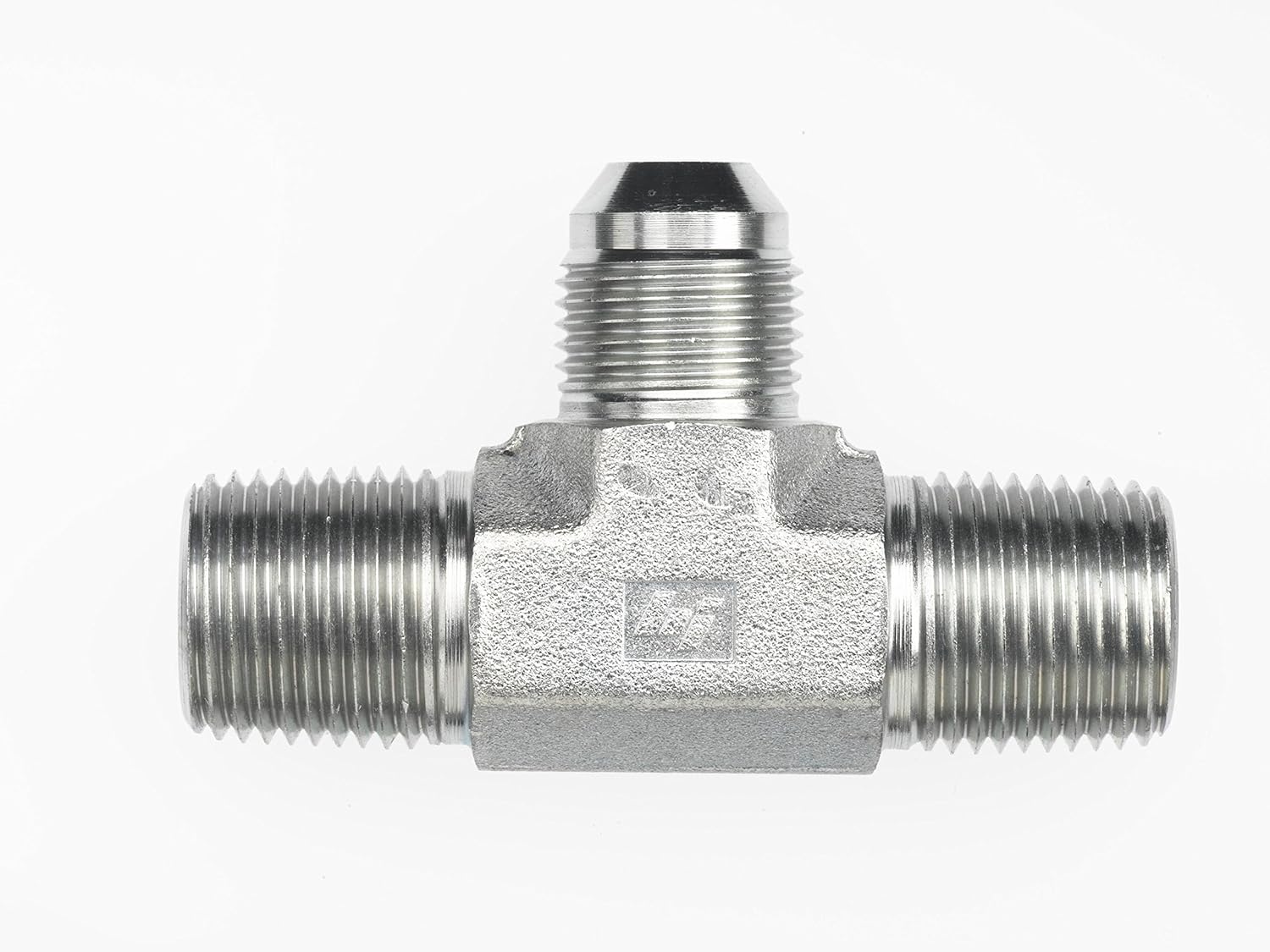

2610-08-08-08-FG by Brennan Inc. | -08 Male Pipe x -08 Male Pipe x -08 Male JIC | Tee | Forged Steel
Brennan Inc.
Tube Fittings & Adapters: 2610 - Male Pipe x Male Pipe x Male JIC Tee
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $23.67 |
| 40–79 | $21.40 |
| 80+ | $18.89 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Tee
Ends Configuration:
Material(s):
 |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | Tube O.D. | A1 NPTF | A2 NPTF | B3 SAE 37° | A1 Drill | A2 Drill | B3 Drill | L Length | L1 Length | M Length | Y Flats |
| 2610-04-04-04-FG | Steel | 1/4" | 1/4-18" | 1/4-18" | 7/16-20" | 0.281" | 0.281" | 0.172" | 1.090" | 1.090" | 1.050" | 0.562" |
| 2610-04-04-06-FG | Steel | 3/8" | 1/4-18" | 1/4-18" | 9/16-18" | 0.281" | 0.281" | 0.297" | 1.090" | 1.090" | 1.060" | 0.562" |
| 2610-06-06-06-FG | Steel | 3/8" | 3/8-18" | 3/8-18" | 9/16-18" | 0.406" | 0.406" | 0.297" | 1.220" | 1.220" | 1.140" | 0.750" |
| 2610-08-08-08-FG | Steel | 1/2" | 1/2-14" | 1/2-14" | 3/4-16" | 0.531" | 0.531" | 0.391" | 1.470" | 1.470" | 1.330" | 0.875" |
| 2610-08-08-10-FG | Steel | 5/8" | 1/2-14" | 1/2-14" | 7/8-14" | 0.531" | 0.531" | 0.484" | 1.470" | 1.470" | 1.450" | 0.875" |
| 2610-12-12-12-FG | Steel | 3/4" | 3/4-14" | 3/4-14" | 1-1/16-12" | 0.719" | 0.719" | 0.609" | 1.590" | 1.590" | 1.660" | 1.062" |
| 2610-16-16-16-FG | Steel | 1" | 1-11-1/2" | 1-11-1/2" | 1-5/16-12" | 0.938" | 0.938" | 0.844" | 1.970" | 1.970" | 1.810" | 1.312" |
| 2610-04-04-06-SS | Stainless Steel | 3/8" | 1/4-18" | 1/4-18" | 9/16-18" | 0.281" | 0.281" | 0.297" | 1.090" | 1.090" | 1.060" | 0.562" |
