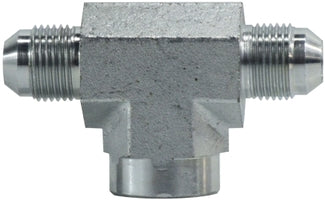

260244 by Midland | Hydraulic Adapter | Tee | 1/4" Female Pipe Branch x 7/16-20 Male JIC 37° Flare x 7/16-20 Male JIC 37° Flare | Steel
Minimum Order Quantity: 5 Units
Midland Industries
Hydraulic Adapters: Female Pipe Branch Tee - Steel
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $4.50 |
| 40–79 | $4.07 |
| 80+ | $3.59 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Tee
Ends Configuration:
Material(s):
Specifications and Approvals:
| Specifications: | |||
|---|---|---|---|
|
|||
| Technical Info: | |||
| Crossover Series: | ||||
|---|---|---|---|---|
| 2602 | 2031R | OTX | 1228R | C6566 |
 |
|||
|---|---|---|---|
| Part Number | Male JIC 37° Flare (1 & 2) |
Male JIC 37° Flare Threads (1 & 2) |
Female NPTF (3) |
| 260232 | 3/16" | 3/8-24 | 1/8" |
| 260242 | 1/4" | 7/16-20 | 1/4" |
| 260244 (2602-4-4) |
1/4" | 7/16-20 | 1/4" |
| 260252 | 5/16" | 1/2-20 | 1/8" |
| 260264 | 3/8" | 9/16-18 | 1/4" |
| 260266 (2602-6-6) |
3/8" | 9/16-18 | 3/8" |
| 260284 | 1/2" | 3/4-16 | 1/4" |
| 260288 (2602-8-8) |
1/2" | 3/4-16 | 1/2" |
| 2602-10-10-08 | 5/8" | 7/8-14 | 1/2" |
| 26022020 | 1-1/4" | 1-5/8-12 | 1-1/4" |
| 26022424 | 1-1/2" | 1-7/8-12 | 1-1/2" |
| 26023232 | 2" | 2-1/2-12 | 2" |
