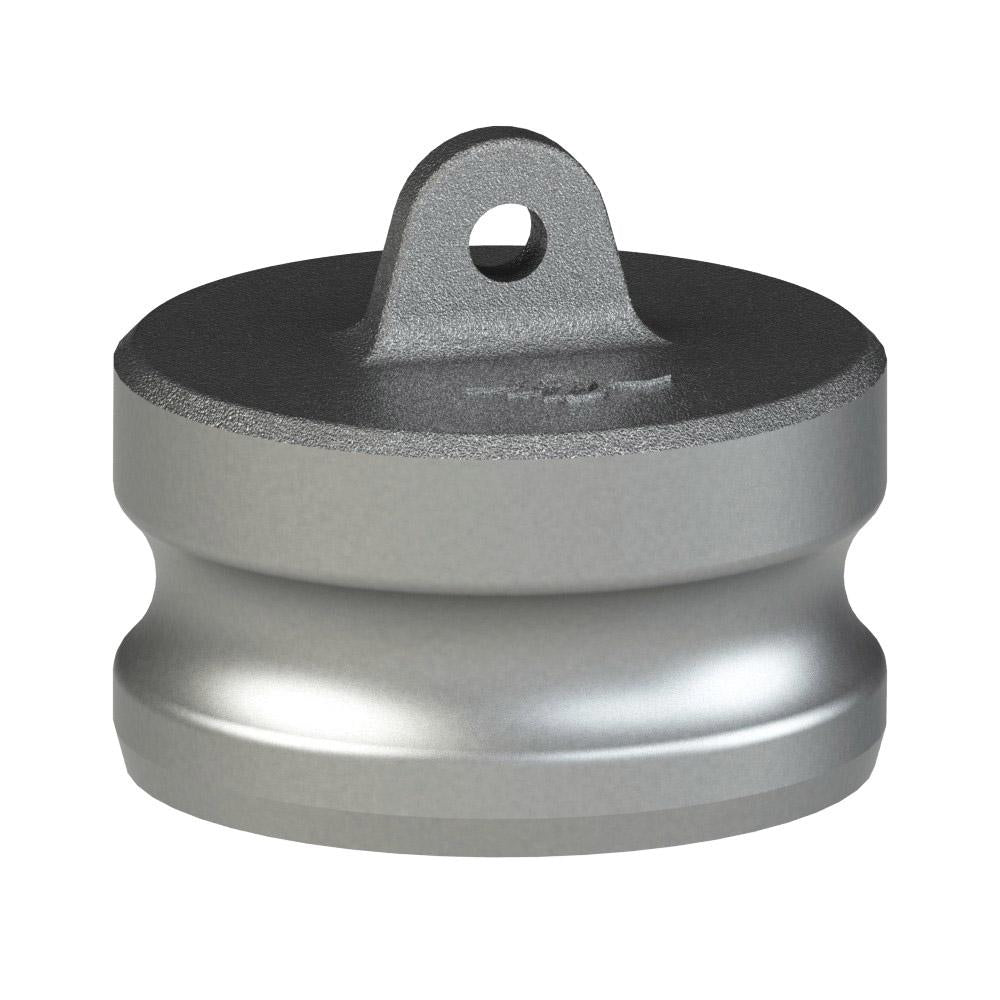

2601220 (20W) by PT-Coupling | Corrosion Resistant Cam & Groove Dust Plug | Type W | 2" Adapter | Hastelloy C
PT Coupling
Corrosion Resistant Cam & Groove (Camlock) Dust Plug | Type W | Adapter | Hastelloy C
These corrosion resistant cam & groove couplings are designed for acid applications in highly corrosive media including hydrochloric acid and sulfuric acid.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $255.34 |
| 15–29 | $230.89 |
| 30+ | $203.73 |
Discounts applied in cart/checkout.
Product Data:
Cam & Groove Type:
Type DP
Ends Configuration:
Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Name |
Item # | Adapter Size |
Overall Length (C) |
Chain Lug Extension (G) |
Max. Allowable Working Press. (PSI)* |
||||
| 10W | 2601210 | 1" | 1.35" | 0.96" | 250 PSI | ||||
| 20W | 2601220 | 2" | 1.90" | 0.70" | 250 PSI | ||||
| 30W | 2601230 | 3" | 2.03" | 1.00" | 200 PSI | ||||
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
