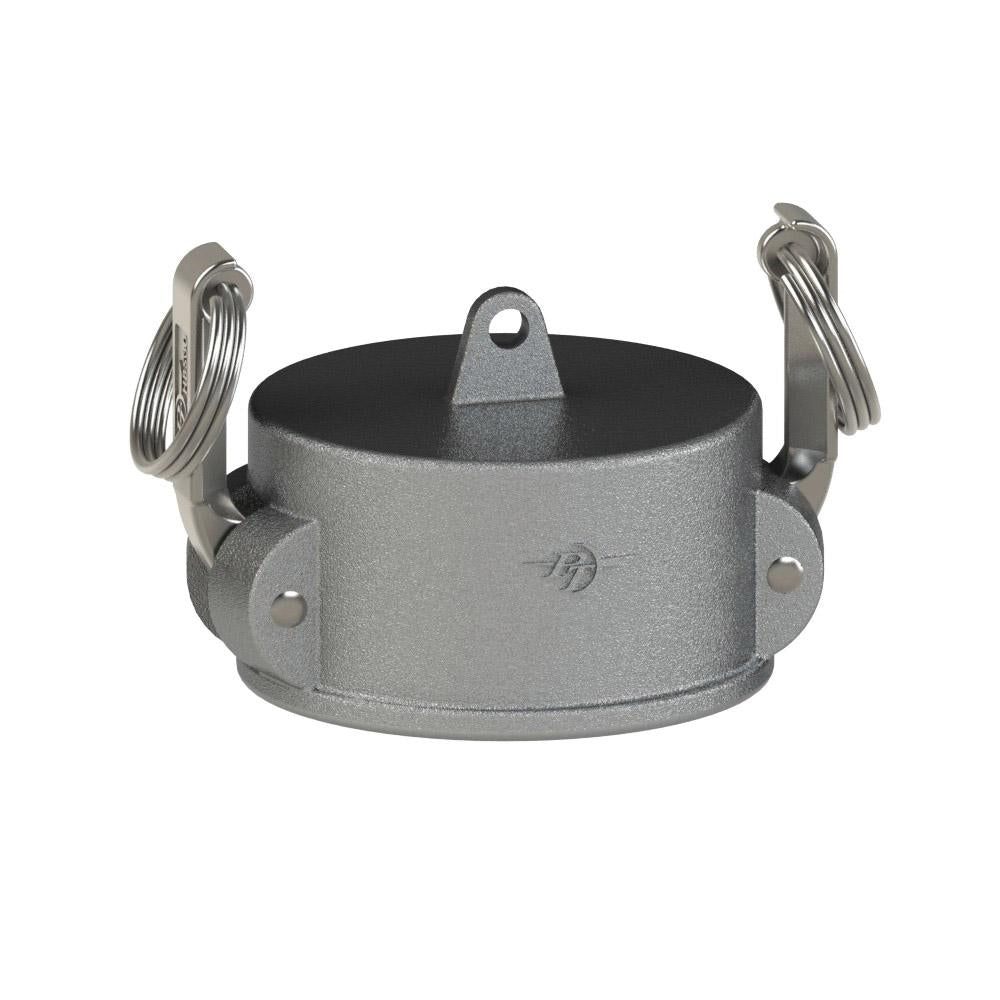

2601130 (30V) by PT-Coupling | Corrosion Resistant Cam & Groove Dust Cap | Type V | 3" Coupler | Hastelloy C
PT Coupling
Corrosion Resistant Cam & Groove (Camlock) Dust Cap | Type V | Coupler | Hastelloy C
These corrosion resistant cam & groove couplings are designed for acid applications in highly corrosive media including hydrochloric acid and sulfuric acid.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $658.43 |
| 15–29 | $595.39 |
| 30+ | $525.35 |
Discounts applied in cart/checkout.
Product Data:
Cam & Groove Type:
Type DC
Ends Configuration:
Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Name |
Item # | Coupler Size |
O. D. with Cam Arms Extended (A) |
Outside Diameter (B) |
Overall Length (C) |
Chain Lug Extension (G) |
Max. Allowable Working Press. (PSI)* |
||
| E05V | 2601101 | 1/2" | 4.21" | 1.82" | 1.30" | 0.50" | 250 PSI | ||
| 07V | 2601107 | 3/4" | 4.51" | 2.11" | 1.35" | 0.50" | 250 PSI | ||
| 10V | 2601110 | 1" | 5.10" | 2.44" | 1.60" | 0.62" | 250 PSI | ||
| 15V | 2601115 | 1-1/2" | 7.16" | 3.56" | 1.96" | 0.86" | 250 PSI | ||
| 20V | 2601120 | 2" | 7.54" | 3.94" | 2.25" | 0.76" | 250 PSI | ||
| 30V | 2601130 | 3" | 9.56" | 5.46" | 2.27" | 1.03" | 200 PSI | ||
| 40V | 2601140 | 4" | 10.66" | 6.56" | 2.34" | 0.99" | 150 PSI | ||
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
