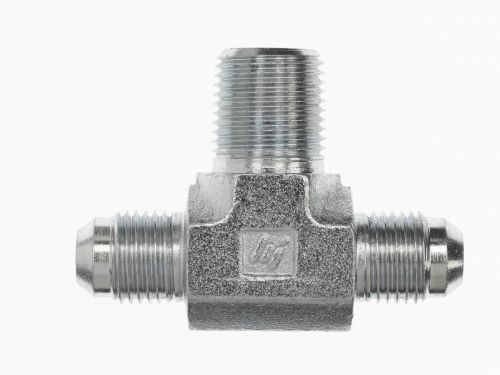

Tube Fittings & Adapters: 2601 - Male JIC x Male JIC x Male Pipe Tee
Product Data:
Shape:
Tee
Ends Configuration:
Material(s):
 |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | Tube O.D. | B1 SAE 37° |
B2 SAE 37° |
A3 NPTF | B1 Drill | B2 Drill | A3 Drill | M1 Length | M2 Length | L Length | Y Flats |
| 2601-03-03-02-FG | Forged Steel | 3/16" | 3/8-24" | 3/8-24" | 1/8-27" | 0.125" | 0.125" | 0.188" | 0.830" | 0.830" | 0.720" | 0.438" |
| 2601-04-04-02-FG | Forged Steel | 1/4" | 7/16-20" | 7/16-20" | 1/8-27" | 0.172" | 0.172" | 0.188" | 0.890" | 0.890" | 0.780" | 0.438" |
| 2601-04-04-04-FG | Forged Steel | 1/4" | 7/16-20" | 7/16-20" | 1/4-18" | 0.172" | 0.172" | 0.281" | 1.050" | 1.050" | 1.090" | 0.562" |
| 2601-04-04-06-FG | Forged Steel | 1/4" | 7/16-20" | 7/16-20" | 3/8-18" | 0.172" | 0.172" | 0.406" | 1.120" | 1.120" | 1.220" | 0.750" |
| 2601-05-05-02-FG | Forged Steel | 5/16" | 1/2-20" | 1/2-20" | 1/8-27" | 0.234" | 0.234" | 0.188" | 0.950" | 0.950" | 0.780" | 0.562" |
| 2601-05-05-04-FG | Forged Steel | 5/16" | 1/2-20" | 1/2-20" | 1/4-18" | 0.234" | 0.234" | 0.281" | 1.050" | 1.050" | 1.090" | 0.562" |
| 2601-06-06-02-FG | Forged Steel | 3/8" | 9/16-18" | 9/16-18" | 1/8-27" | 0.297" | 0.297" | 0.188" | 1.060" | 1.060" | 0.900" | 0.562" |
| 2601-06-06-04-FG | Forged Steel | 3/8" | 9/16-18" | 9/16-18" | 1/4-18" | 0.297" | 0.297" | 0.281" | 1.060" | 1.060" | 1.090" | 0.562" |
| 2601-06-06-06-FG | Forged Steel | 3/8" | 9/16-18" | 9/16-18" | 3/8-18" | 0.297" | 0.297" | 0.406" | 1.140" | 1.140" | 1.220" | 0.750" |
| 2601-06-06-08-FG | Forged Steel | 3/8" | 9/16-18" | 9/16-18" | 1/2-14" | 0.297" | 0.297" | 0.531" | 1.220" | 1.220" | 1.470" | 0.875" |
| 2601-08-08-04-FG | Forged Steel | 1/2" | 3/4-16" | 3/4-16" | 1/4-18" | 0.391" | 0.391" | 0.281" | 1.250" | 1.250" | 1.220" | 0.750" |
| 2601-08-08-06-FG | Forged Steel | 1/2" | 3/4-16" | 3/4-16" | 3/8-18" | 0.391" | 0.391" | 0.406" | 1.250" | 1.250" | 1.220" | 0.750" |
| 2601-08-08-08-FG | Forged Steel | 1/2" | 3/4-16" | 3/4-16" | 1/2-14" | 0.391" | 0.391" | 0.531" | 1.330" | 1.330" | 1.470" | 0.875" |
| 2601-08-08-12-FG | Forged Steel | 1/2" | 3/4-16" | 3/4-16" | 3/4-14" | 0.391" | 0.391" | 0.719" | 1.420" | 1.420" | 1.590" | 1.062" |
| 2601-10-10-06-FG | Forged Steel | 5/8" | 7/8-14" | 7/8-14" | 3/8-18" | 0.484" | 0.484" | 0.406" | 1.450" | 1.450" | 1.280" | 0.875" |
| 2601-10-10-08-FG | Forged Steel | 5/8" | 7/8-14" | 7/8-14" | 1/2-14" | 0.484" | 0.484" | 0.531" | 1.450" | 1.450" | 1.470" | 0.875" |
| 2601-10-10-12-FG | Forged Steel | 5/8" | 7/8-14" | 7/8-14" | 3/4-14" | 0.484" | 0.484" | 0.719" | 1.540" | 1.540" | 1.590" | 1.062" |
| 2601-12-12-08-FG | Forged Steel | 3/4" | 1-1/16-12" | 1-1/16-12" | 1/2-14" | 0.609" | 0.609" | 0.531" | 1.660" | 1.660" | 1.590" | 1.062" |
| 2601-12-12-12-FG | Forged Steel | 3/4" | 1-1/16-12" | 1-1/16-12" | 3/4-14" | 0.609" | 0.609" | 0.719" | 1.660" | 1.660" | 1.590" | 1.062" |
| 2601-12-12-16-FG | Forged Steel | 3/4" | 1-1/16-12" | 1-1/16-12" | 1-11-1/2" | 0.609" | 0.609" | 0.938" | 1.760" | 1.760" | 1.970" | 1.312" |
| 2601-16-16-12-FG | Forged Steel | 1" | 1-5/16-12" | 1-5/16-12" | 3/4-14" | 0.844" | 0.844" | 0.719" | 1.810" | 1.810" | 1.78" | 1.312" |
| 2601-16-16-16-FG | Forged Steel | 1" | 1-5/16-12" | 1-5/16-12" | 1-11-1/2" | 0.844" | 0.844" | 0.938" | 1.810" | 1.810" | 1.970" | 1.312" |
| 2601-20-20-20-FG | Forged Steel | 1-1/4" | 1-5/8-12" | 1-5/8-12" | 1-1/4-11-1/2" | 1.078" | 1.078" | 1.250" | 2.060" | 2.060" | 2.380" | 1.625" |
| 2601-24-24-24-FG | Forged Steel | 1-1/2" | 1-7/8-12" | 1-7/8-12" | 1-1/2-11-1/2" | 1.312" | 1.312" | 1.500" | 2.330" | 2.330" | 2.640" | 1.875" |
| 2601-32-32-32-FG | Forged Steel | 2" | 2-1/2-12" | 2-1/2-12" | 2-11-1/2" | 1.781" | 1.781" | 1.938" | 3.060" | 3.060" | 3.000" | 2.500" |
| 2601-04-04-04-B | Brass | 1/4" | 7/16-20" | 7/16-20" | 1/4-18" | 0.172" | 0.172" | 0.281" | 1.050" | 1.050" | 1.090" | 0.562" |
| 2601-08-08-06-B | Brass | 1/2" | 3/4-16" | 3/4-16" | 3/8-18" | 0.391" | 0.391" | 0.406" | 1.250" | 1.250" | 1.220" | 0.750" |
| 2601-02-02-02-SS | Stainless Steel | 1/8" | 5/16-24" | 5/16-24" | 1/8-27" | 0.062" | 0.062" | 0.188" | 0.770" | 0.770" | 0.720" | 0.438" |
| 2601-03-03-02-SS | Stainless Steel | 3/16" | 3/8-24" | 3/8-24" | 1/8-27" | 0.125" | 0.125" | 0.188" | 0.830" | 0.830" | 0.720" | 0.438" |
| 2601-04-04-02-SS | Stainless Steel | 1/4" | 7/16-20" | 7/16-20" | 1/8-27" | 0.172" | 0.172" | 0.188" | 0.890" | 0.890" | 0.780" | 0.438" |
| 2601-04-04-04-SS | Stainless Steel | 1/4" | 7/16-20" | 7/16-20" | 1/4-18" | 0.172" | 0.172" | 0.281" | 1.050" | 1.050" | 1.090" | 0.562" |
| 2601-05-05-02-SS | Stainless Steel | 5/16" | 1/2-20" | 1/2-20" | 1/8-27" | 0.234" | 0.234" | 0.188" | 0.950" | 0.950" | 0.780" | 0.562" |
| 2601-05-05-04-SS | Stainless Steel | 5/16" | 1/2-20" | 1/2-20" | 1/4-18" | 0.234" | 0.234" | 0.281" | 1.050" | 1.050" | 1.090" | 0.562" |
| 2601-06-06-04-SS | Stainless Steel | 3/8" | 9/16-18" | 9/16-18" | 1/4-18" | 0.297" | 0.297" | 0.281" | 1.060" | 1.060" | 1.090" | 0.562" |
| 2601-06-06-06-SS | Stainless Steel | 3/8" | 9/16-18" | 9/16-18" | 3/8-18" | 0.297" | 0.297" | 0.406" | 1.140" | 1.140" | 1.220" | 0.750" |
| 2601-06-06-08-SS | Stainless Steel | 3/8" | 9/16-18" | 9/16-18" | 1/2-14" | 0.297" | 0.297" | 0.531" | 1.220" | 1.220" | 1.470" | 0.875" |
| 2601-08-08-06-SS | Stainless Steel | 1/2" | 3/4-16" | 3/4-16" | 3/8-18" | 0.391" | 0.391" | 0.406" | 1.250" | 1.250" | 1.220" | 0.750" |
| 2601-08-08-08-SS | Stainless Steel | 1/2" | 3/4-16" | 3/4-16" | 1/2-14" | 0.391" | 0.391" | 0.531" | 1.330" | 1.330" | 1.470" | 0.875" |
| 2601-10-10-08-SS | Stainless Steel | 5/8" | 7/8-14" | 7/8-14" | 1/2-14" | 0.484" | 0.484" | 0.531" | 1.450" | 1.450" | 1.470" | 0.875" |
| 2601-12-12-12-SS | Stainless Steel | 3/4" | 1-1/16-12" | 1-1/16-12" | 3/4-14" | 0.609" | 0.609" | 0.719" | 1.660" | 1.660" | 1.590" | 1.062" |
| 2601-16-16-16-SS | Stainless Steel | 1" | 1-5/16-12" | 1-5/16-12" | 1-11-1/2" | 0.844" | 0.844" | 0.938" | 1.810" | 1.810" | 1.970" | 1.312" |
| 2601-20-20-20-SS | Stainless Steel | 1-1/4" | 1-5/8-12" | 1-5/8-12" | 1-1/4-11-1/2" | 1.078" | 1.078" | 1.250" | 2.060" | 2.060" | 2.380" | 1.625" |
