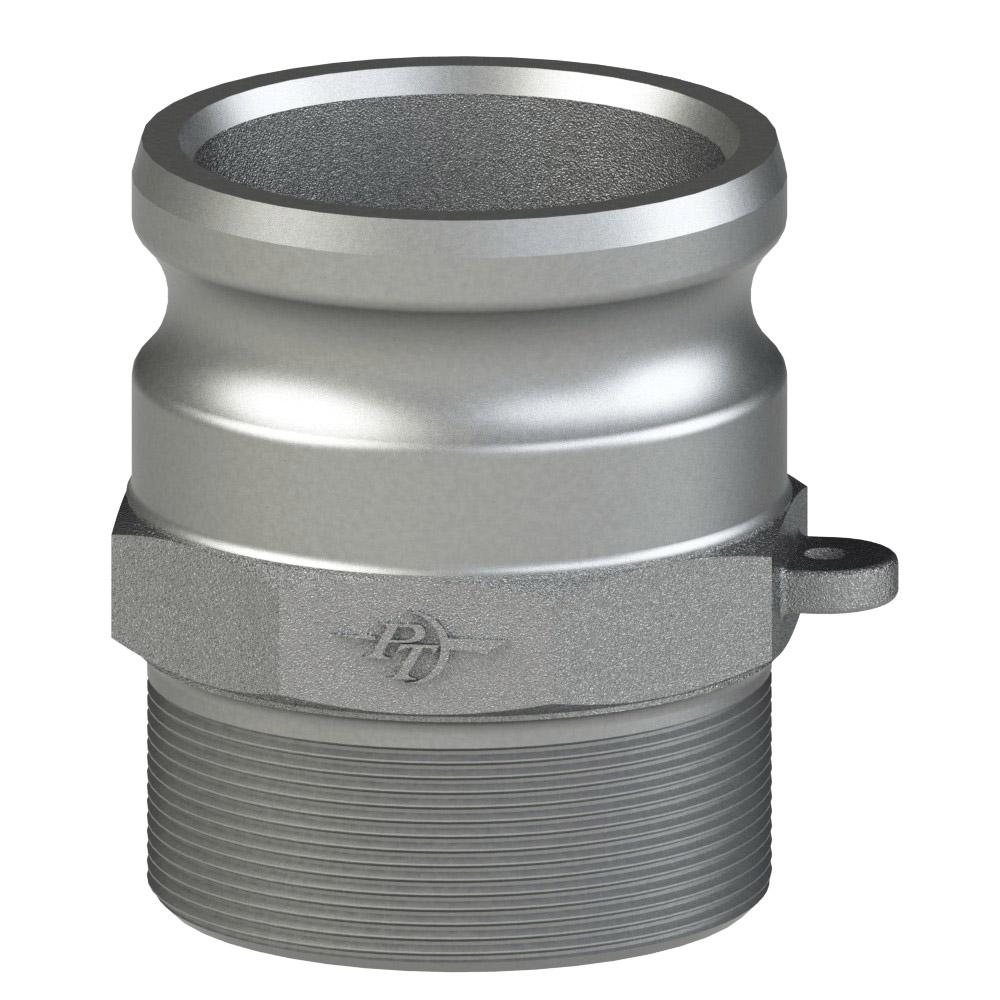

2600607 (07F) by PT-Coupling | Corrosion Resistant Cam & Groove Adapter | Type F | 3/4" Adapter x 3/4" Male NPT | Hastelloy
PT Coupling
Corrosion Resistant Cam & Groove (Camlock) Adapter | Type F | Adapter x Male NPT | Hastelloy
These corrosion resistant cam & groove couplings are designed for acid applications in highly corrosive media including hydrochloric acid and sulfuric acid.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $134.07 |
| 20–59 | $121.24 |
| 60+ | $106.97 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Type F
Ends Configuration:
Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Name |
Item # | Adapter Size |
Male NPT Thread |
Overall Length (C) |
Exposed Length (D) |
Inside Diameter (E) |
Max. Across Corners (F) |
Chain Lug Extension (G) |
Max. Allowable Working Press. (PSI)* |
| 07F | 2600607 | 3/4" | 3/4" | 2.47" | 1.67" | 0.75" | 1.42" | - | 250 PSI |
| 10F | 2600610 | 1" | 1" | 2.89" | 1.99" | 0.85" | 1.75" | 0.34" | 250 PSI |
| 15F | 2600615 | 1-1/2" | 1-1/2" | 3.29" | 2.31" | 1.34" | 2.44" | 0.30" | 250 PSI |
| 20F | 2600620 | 2" | 2" | 3.57" | 2.57" | 1.72" | 2.84" | 0.28" | 250 PSI |
| 30F | 2600630 | 3" | 3" | 4.37" | 2.87" | 2.80" | 4.07" | 0.44" | 200 PSI |
| 40F | 2600640 | 4" | 4" | 4.79" | 3.19" | 3.78" | 5.27" | 0.40" | 150 PSI |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
