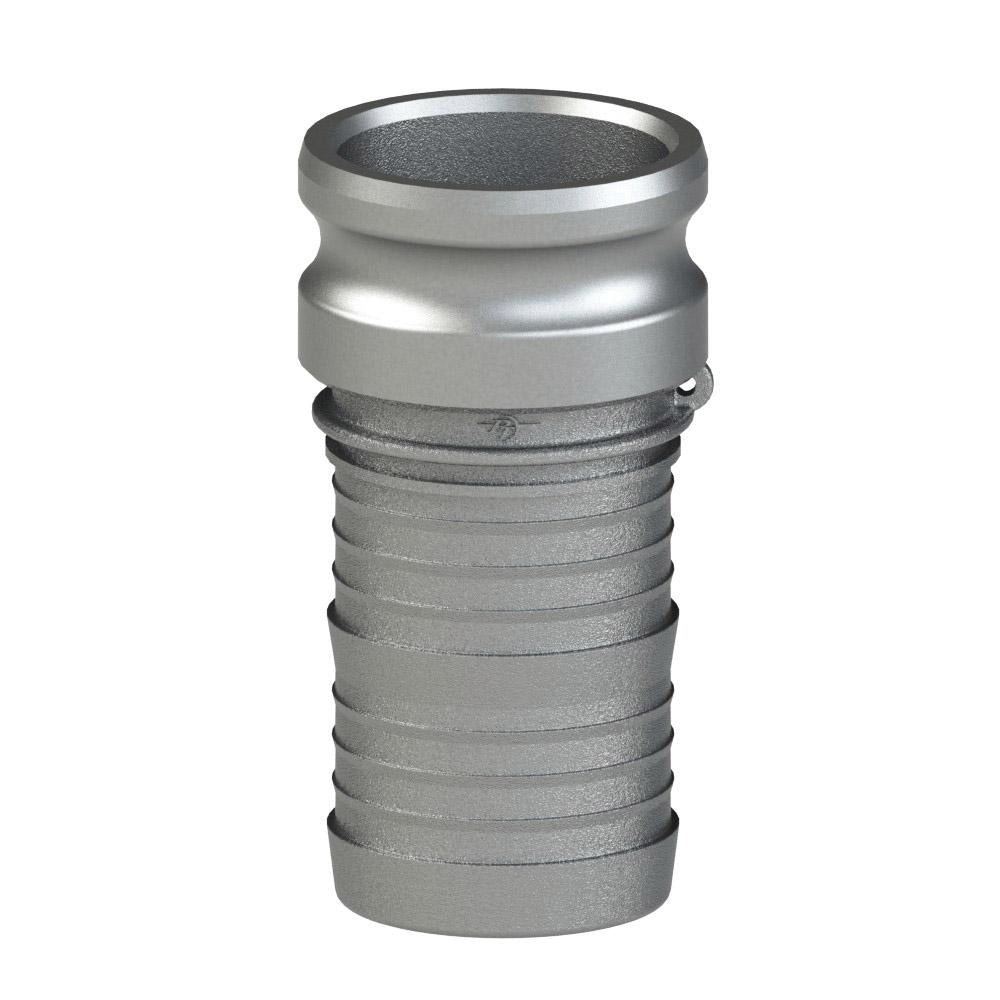

2600520 (20E) by PT-Coupling | Corrosion Resistant Cam & Groove Adapter | Type E | 2" Adapter x 2" Hose Shank | Hastelloy
Buy more, save moreDiscounts applied in cart/checkout.
| Features & Applications: | |||
|---|---|---|---|
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Name |
Item # | Adapter Size |
Hose Shank Size |
Outside Diameter (B) |
Overall Length (C) |
Max. Allowable Working Press. (PSI)* |
| 10E | 2600510 | 1" | 1" | 1.63" | 4.30" | 250 PSI |
| 15E | 2600515 | 1-1/2" | 1-1/2" | 2.14" | 5.10" | 250 PSI |
| 20E | 2600520 | 2" | 2" | 2.64" | 5.75" | 250 PSI |
| 30E | 2600530 | 3" | 3" | 3.70" | 6.88" | 200 PSI |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
Additional Product Data:
Shape:
Straight
Cam & Groove Type:
Type E
Ends Configuration:
Material(s):
