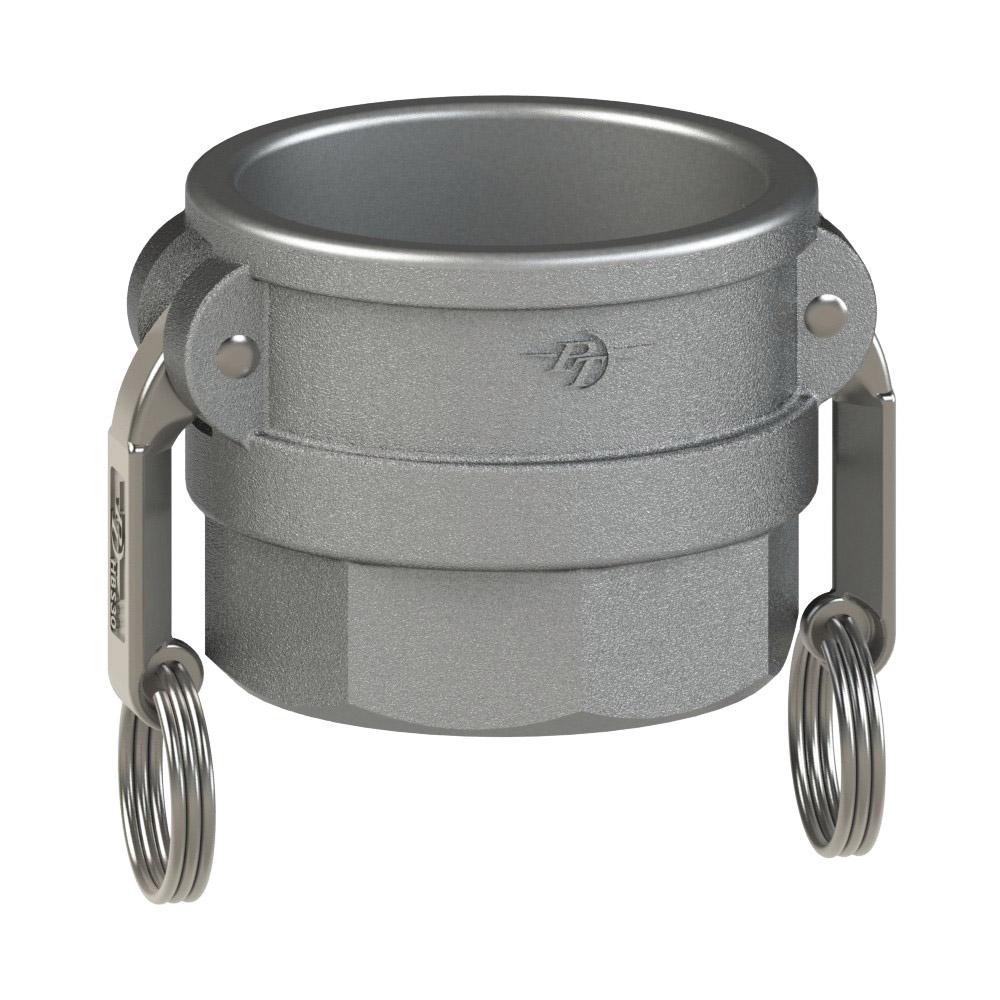

2600420 (20D) by PT-Coupling | Corrosion Resistant Cam & Groove Coupler | Type D | 2" Coupler x 2" Female NPT | Hastelloy | Buna-N Seal
Buy more, save moreDiscounts applied in cart/checkout.
| Features & Applications: | |||
|---|---|---|---|
|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Name |
Item # | Coupler Size |
Female NPT Thread |
O. D. with Cam Arms Extended (A) |
Outside Diameter (B) |
Overall Length (C) |
Inside Diameter (E) |
Max. Allowable Working Press. (PSI)* |
| 07D | 2600407 | 3/4" | 3/4" | 4.51" | 2.11" | 2.10" | 0.88" | 250 PSI |
| 10D | 2600410 | 1" | 1" | 5.10" | 2.44" | 2.50" | 0.97" | 250 PSI |
| 15D | 2600415 | 1-1/2" | 1-1/2" | 7.16" | 3.56" | 2.80" | 1.50" | 250 PSI |
| 20D | 2600420 | 2" | 2" | 7.54" | 3.94" | 3.10" | 1.88" | 250 PSI |
| 30D | 2600430 | 3" | 3" | 9.56" | 5.46" | 3.50" | 2.88" | 200 PSI |
| 40D | 2600440 | 4" | 4" | 10.66" | 6.56" | 3.90" | 3.60" | 150 PSI |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
Additional Product Data:
Shape:
Straight
Cam & Groove Type:
Type D
Ends Configuration:
Material(s):
Seal Material(s):
