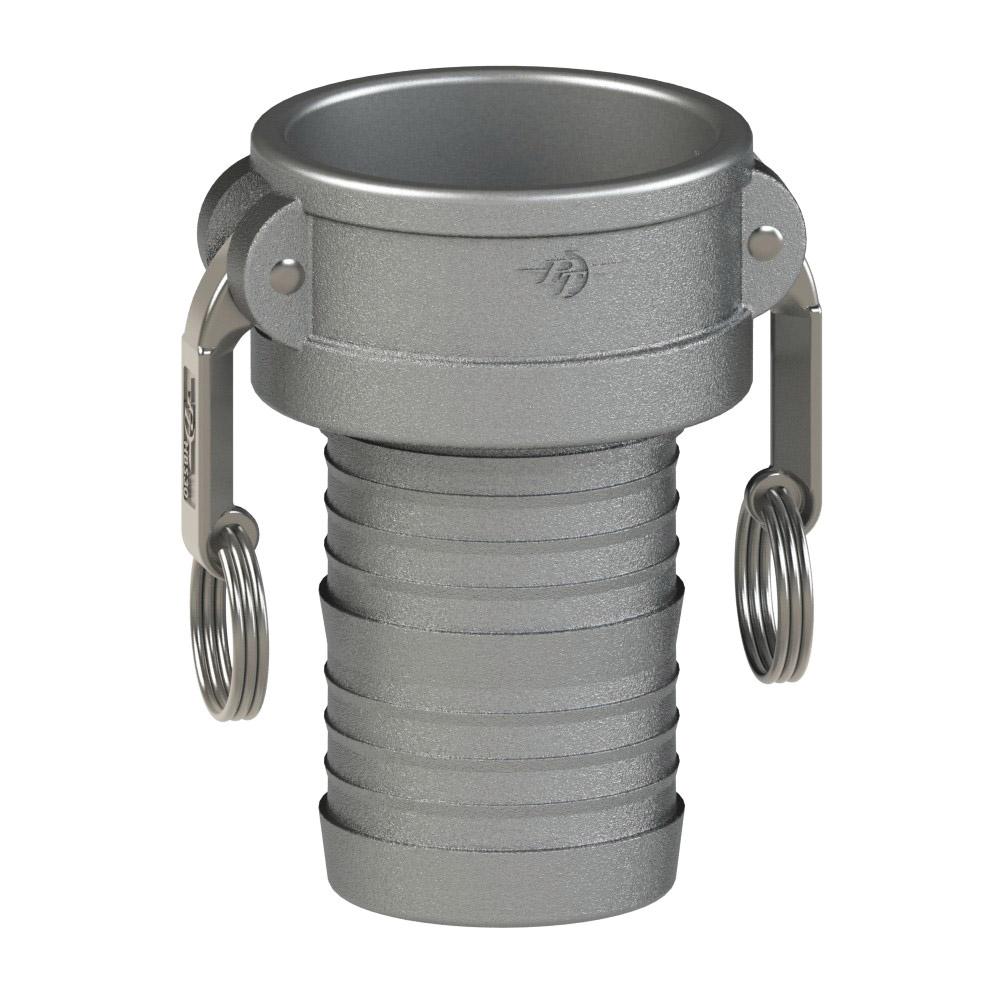

2600320 (20C) by PT-Coupling | Corrosion Resistant Cam & Groove Fitting | Type C | 2" Coupler x 2" Hose Shank | Hastelloy | Buna-N Seal
PT Coupling
Corrosion Resistant Cam & Groove (Camlock) Fitting | Type C | Coupler x Hose Shank | Hastelloy | Buna-N Seal
These corrosion resistant cam & groove couplings are designed for acid applications in highly corrosive media including hydrochloric acid and sulfuric acid.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $360.51 |
| 15–29 | $325.99 |
| 30+ | $287.64 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Type C
Ends Configuration:
Material(s):
Seal Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Name |
Item # | Coupler Size |
Hose Shank Size |
O. D. with Cam Arms Extended (A) |
Outside Diameter (B) |
Overall Length (C) |
Exposed Length (D) |
Inside Diameter (E) |
Min. Inside Diameter (E) |
Max. Allowable Working Press. (PSI)* |
| 07C | 2600307 | 3/4" | 3/4" | 4.51" | 2.11" | 3.55" | 1.25" | 0.53" | 0.40" | 250 PSI |
| 10C | 2600310 | 1" | 1" | 5.10" | 2.44" | 4.06" | 1.56" | 0.78" | 0.69" | 250 PSI |
| 15C | 2600315 | 1-1/2" | 1-1/2" | 7.16" | 3.56" | 4.82" | 1.88" | 1.22" | 1.15" | 250 PSI |
| 20C | 2600320 | 2" | 2" | 7.54" | 3.94" | 5.53" | 2.15" | 1.71" | 1.60" | 250 PSI |
| 30C | 2600330 | 3" | 3" | 9.56" | 5.46" | 6.32" | 2.27" | 2.65" | 2.55" | 200 PSI |
| 40C | 2600340 | 4" | 4" | 10.66" | 6.56" | 6.64" | 2.34" | 3.53" | 3.43" | 150 PSI |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
