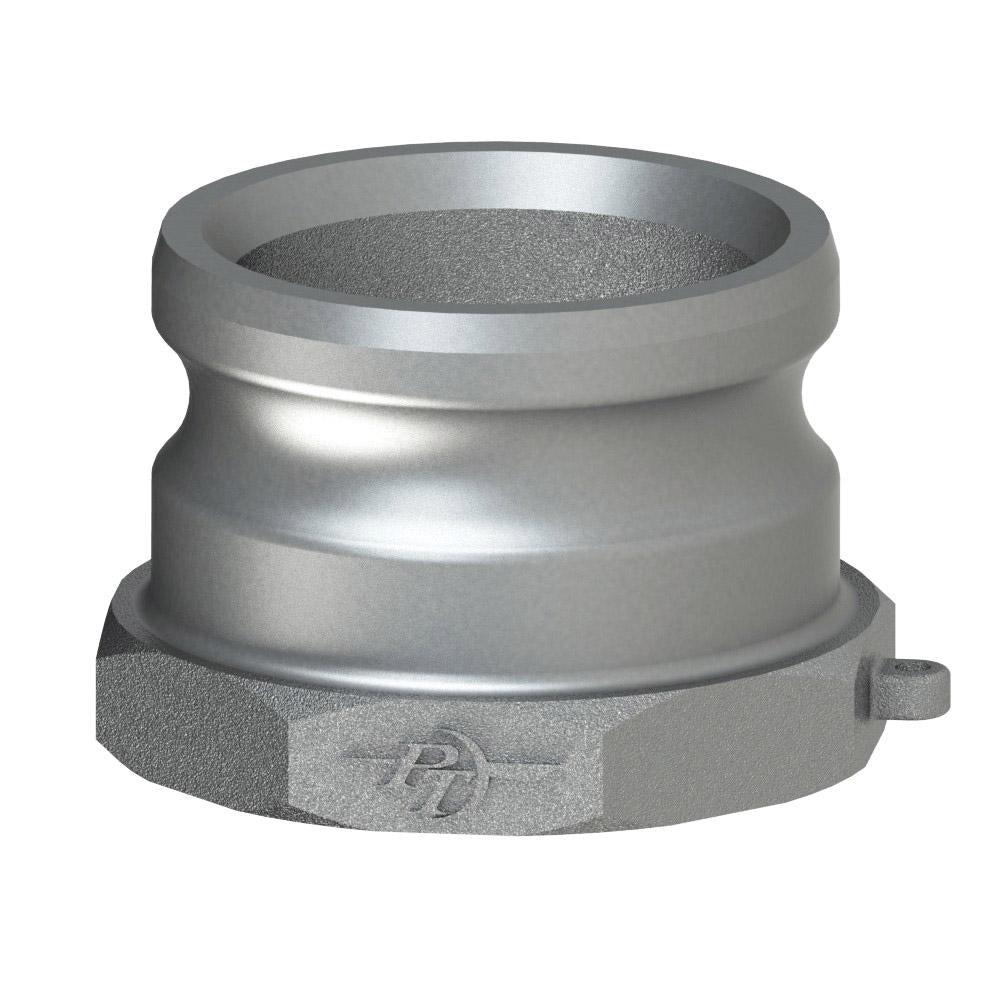

2600101 (E05A) by PT-Coupling | Corrosion Resistant Cam & Groove Adapter | Type A | 1/2" Adapter x 1/2" Female NPT | Hastelloy
PT Coupling
Corrosion Resistant Cam & Groove (Camlock) Adapter | Type A | Adapter x Female NPT | Hastelloy
These corrosion resistant cam & groove couplings are designed for acid applications in highly corrosive media including hydrochloric acid and sulfuric acid.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $175.07 |
| 20–59 | $158.30 |
| 60+ | $139.68 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Type A
Ends Configuration:
Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Name |
Item # | Adapter Size |
Female NPT Thread |
Overall Length (C) |
Inside Diameter (E) |
Across Corners (F) |
Chain Lug Extension (G) |
Max. Allowable Working Press. (PSI)* |
| E05A | 2600101 | 1/2" | 1/2" | 1.60" | 0.53" | 1.12" | - | 250 PSI |
| 07A | 2600107 | 3/4" | 3/4" | 1.62" | 0.75" | 1.49" | - | 250 PSI |
| 10A | 2600110 | 1" | 1" | 1.91" | 0.88" | 1.76" | 0.34" | 250 PSI |
| 15A | 2600115 | 1-1/2" | 1-1/2" | 2.29" | 1.35" | 2.44" | 0.33" | 250 PSI |
| 20A | 2600120 | 2" | 2" | 2.54" | 1.72" | 2.92" | 0.31" | 250 PSI |
| 30A | 2600130 | 3" | 3" | 2.84" | 2.80" | 4.22" | 0.44" | 200 PSI |
| 40A | 2600140 | 4" | 4" | 3.16" | 3.78" | 5.41" | 0.39" | 150 PSI |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
