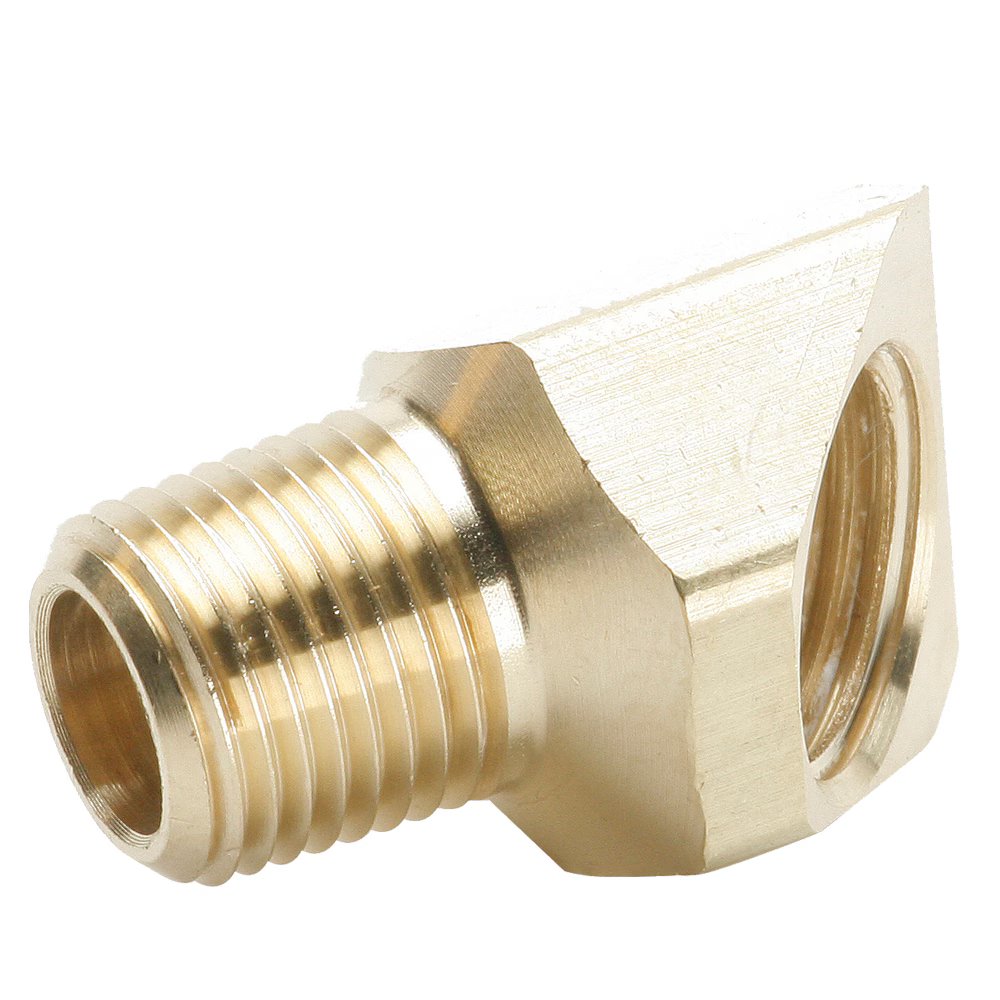

259IFHD-4-2 by Parker | Inverted Flare Fittings | 1/4" Inverted Flare x 1/8" Male Pipe Thread | 9/16" Hex | .94" Length | 45° Elbow | Brass | Pack of 10
by Parker Hannifin
Inverted Flared Fittings:45° Elbow 259IFHD
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $164.78 |
| 20–59 | $149.01 |
| 60+ | $131.48 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
45° Elbow
Ends Configuration:
Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Applications: |
|
| Specification: | |
| Pressure Range: | Up to 150 PSI (10.3 bar) |
| Temperature Range: | -65° to +250° F (-53.8° to +121.1° C) |
| Pressure Range: | See Chart Below |
 |
|
| Compatible Tubing: |
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Tube Size | Pipe Thread | Straight Thread | Hex (C) | L | Flow Diameter (D) |
| 259IFHD-3-2 | 3/16" | 1/8" | 3/8"-24 | 17/32" | .88" | .125" |
| 259IFHD-4-2 | 1/4" | 1/8" | 7/16"-24 | 9/16" | .94" | .189" |
| 259IFHD-5-2 | 5/16" | 1/8" | 1/2"-20 | 5/8" | 1.00" | .220" |
| 259IFHD-5-4 | 5/16" | 1/4" | 1/2"-20 | 5/8" | 1.16" | .220" |
| 259IFHD-6-4* | 3/8" | 1/4" | 5/8"-18 | 13/16" | 1.34" | .282" |
| 259IFHD-8-6 | 1/2" | 3/8" | 3/4"-18 | 7/8" | 1.44" | .407" |
| 259IFHD-10-8 | 5/8" | 1/2" | 7/8"-18 | 1-1/16" | 1.75" | .533" |
*Does not meet SAE or UL.
