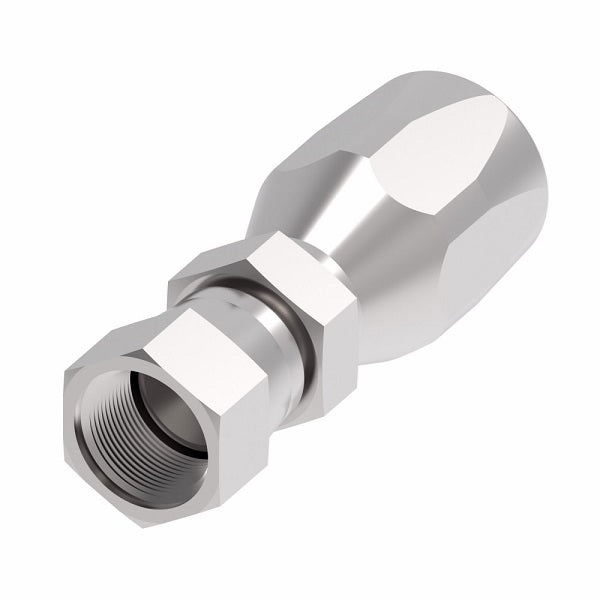

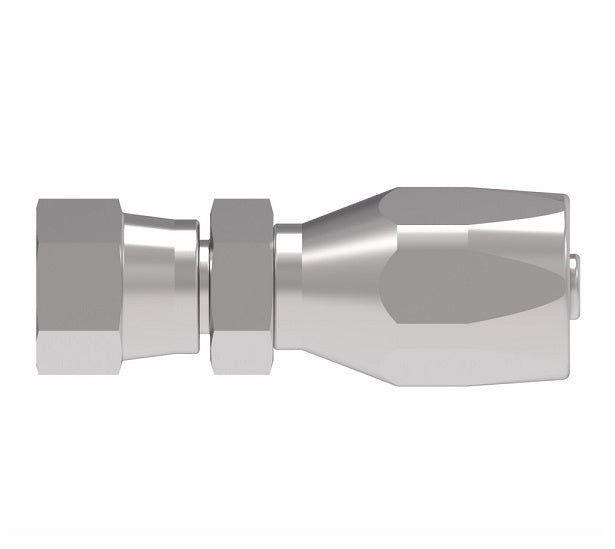

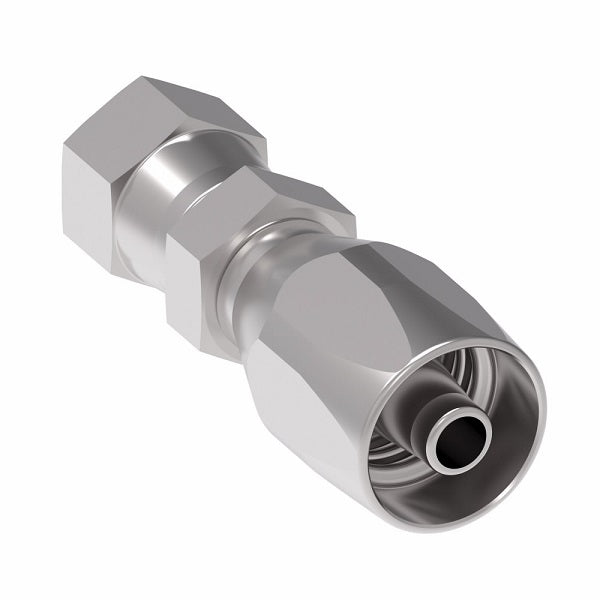

259-4411-10 Aeroquip by Danfoss | Female 37° JIC Swivel 100R5 Reusable Hose Fitting (2 Piece) | -10 Female 37° JIC Swivel x -10 Reusable Hose End | Stainless Steel
Buy more, save moreDiscounts applied in cart/checkout.
| Technical Info: | |||
|---|---|---|---|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Stainless Steel Part Number |
Hose Size | Thread | A | D | EØ | ||
| 4411-4S* | 259-4411-4 | -04 | 7/16-20 | 1.97" | 1.23" | 0.13" | ||
| 4411-4-5S | - | -05 | 7/16-20 | 2.08" | 1.30" | 0.17" | ||
| 4411-5S* | 259-4411-5 | -05 | 1/2-20 | 2.12" | 1.35" | 0.18" | ||
| 4411-6S | 259-4411-6 | -06 | 9/16-18 | 2.33" | 1.43" | 0.24" | ||
| 4411-6-8S | - | -08 | 9/16-18 | 2.68" | 1.53" | 0.30" | ||
| 4411-8S* | 259-4411-8 | -08 | 3/4-16 | 2.78" | 1.62" | 0.36" | ||
| 4411-8-6S* | - | -06 | 3/4-16 | 2.42" | 1.52" | 0.24" | ||
| 4411-10-8S | - | -08 | 7/8-14 | 2.95" | 1.80" | 0.36" | ||
| 4411-8-10S* | - | -10 | 3/4-16 | 2.92" | 1.64" | 0.39" | ||
| 4411-10S* | 259-4411-10 | -10 | 7/8-14 | 3.10" | 1.81" | 0.46" | ||
| 4411-12-10S | - | -10 | 1-1/16-12 | 3.19" | 1.91" | 0.46" | ||
| 4411-10-12S | - | -12 | 7/8-14 | 3.40" | 1.83" | 0.55" | ||
| 4411-12S | 259-4411-12 | -12 | 1-1/16-12 | 3.46" | 1.92" | 0.55" | ||
| 4411-14-12S | - | -12 | 1-3/16-12 | 3.56" | 1.99" | 0.55" | ||
| 4411-16S | 259-4411-16 | -16 | 1-5/16-12 | 3.19" | 1.93" | 0.82" | ||
| 4411-20S | - | -20 | 1-5/8-12 | 3.43" | 2.07" | 1.05" | ||
| 4411-20-24S | - | -24 | 1-5/8-12 | 3.65" | 2.19" | 1.06" | ||
| 4411-24S | - | -24 | 1-7/8-12 | 3.68" | 2.22" | 1.28" | ||
| 4411-32S | - | -32 | 2-1/2-12 | 4.39" | 2.55" | 1.75" | ||
* Threads are Female 37° JIC Swivel/SAE 45° Flare Dual Seat
Additional Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
