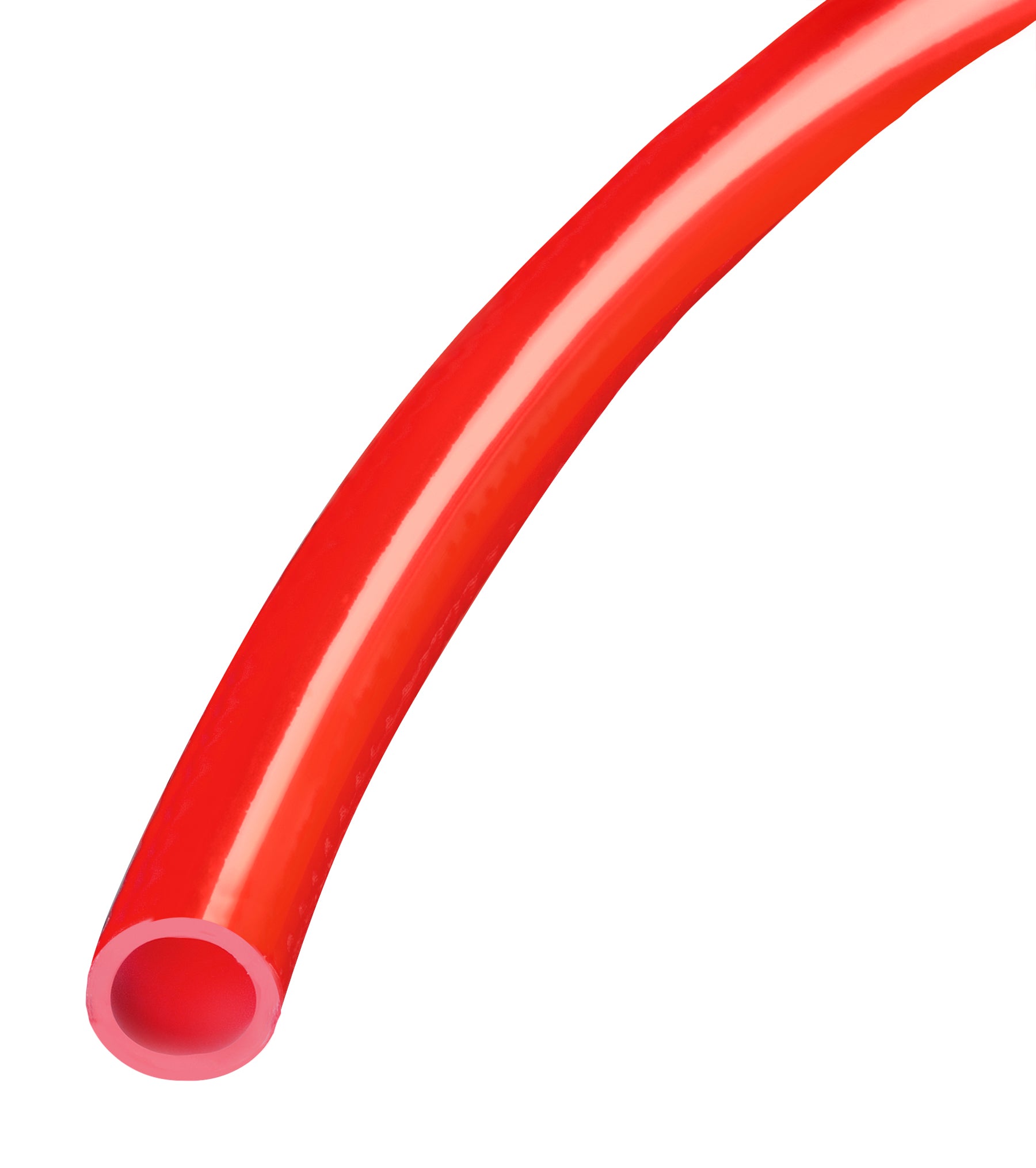

251RD-03X1K Kuri-Tec ENDURE™ by Kuriyama | 251 Series (Type A) | Non-Reinforced DOT Air Brake Tubing | 3/16" OD | 0.117" ID | Red | 1000ft Length

251RD-03X1K Kuri-Tec ENDURE™ by Kuriyama | 251 Series (Type A) | Non-Reinforced DOT Air Brake Tubing | 3/16" OD | 0.117" ID | Red | 1000ft Length

Sale price$590.24

Package Quantity: 1000 Foot

Buy more, save moreDiscounts applied in cart/checkout.

SPECIFICATIONS

Applications: Auxiliary air systems
Trailer air brake systems
Truck, bus and commercial vehicle air brake systems
Tube: Specially designed polyester compounds
Service Temperature Range: -40°F (-40°C) to +200°F (+93°C)
Specifications: Meets and exceeds DOT FMVSS 106.
Meets and exceeds performance requirements of SAE J844.
Other Features:
  • Superior Flexibility - Highly engineered polyester material exhibits improved flexibility versus traditional nylon tubing.
  • Excellent Resistance - Excellent resistance to abrasion, gasoline, diesel fuel, road salt and deicing compounds.
  • Industry Leading Impact Strength and Vibration Cracking Resistance - Engineered formulation retains its flexibility and resists impact cracking in both high heat and sub-zero cold weather conditions; providing longer service life than traditional nylon tubing.
  • Exceeds Industry Performance Standards - Far surpasses traditional nylon tubing for heat aging and heated oil aging, while retaining its superior performance and flexibility over lower temperatures than traditional nylon tubing.
  • Easy Installation - Greater flexibility allows for easier installation reducing time, effort and installer fatigue.
  • Weather Resistant - Heat and light stabilized for superior UV resistance and long service life. Resists the cracking that can result from damaging UV light.
251BK Series | Black
Part Number
100ft		 Part Number
500ft		 Part Number
1000ft		 Part Number
200ft		 Nominal
OD		 Nominal
ID		 Nominal
Wall		 Min.
Burst
Pressure		 Min.
Bend
Radius
(in) (in) (in) (PSI)
at 70°F (20°C)		 (in)
at 70°F (20°C)
251BK-02X100 - - 251BK-02X2K 1/8" 0.079" 0.023" 1,000 PSI 0.37"
251BK-02.5X100 - 251BK-02.5X1K - 5/32" 0.092" 0.032" 1,200 PSI 0.50"
251BK-03X100 - 251BK-03X1K - 3/16" 0.117" 0.035" 1,200 PSI 0.75"
251BK-04X100 - 251BK-04X1K - 1/4" 0.170" 0.040" 1,200 PSI 1.00"
251BK-05X100 251BK-05X500 - - 5/16" 0.232" 0.040" 1,000 PSI 1.25"
251BL Series | Blue
Part Number
100ft		 Part Number
500ft		 Part Number
1000ft		 Part Number
200ft		 Nominal
OD		 Nominal
ID		 Nominal
Wall		 Min.
Burst
Pressure		 Min.
Bend
Radius
(in) (in) (in) (PSI)
at 70°F (20°C)		 (in)
at 70°F (20°C)
251BL-02X100 - - 251BL-02X2K 1/8" 0.079" 0.023" 1,000 PSI 0.37"
251BL-02.5X100 - 251BL-02.5X1K - 5/32" 0.092" 0.032" 1,200 PSI 0.50"
251BL-03X100 - 251BL-03X1K - 3/16" 0.117" 0.035" 1,200 PSI 0.75"
251BL-04X100 - 251BL-04X1K - 1/4" 0.170" 0.040" 1,200 PSI 1.00"
251BL-05X100 251BL-05X500 - - 5/16" 0.232" 0.040" 1,000 PSI 1.25"
251GR Series | Green
Part Number
100ft		 Part Number
500ft		 Part Number
1000ft		 Part Number
200ft		 Nominal
OD		 Nominal
ID		 Nominal
Wall		 Min.
Burst
Pressure		 Min.
Bend
Radius
(in) (in) (in) (PSI)
at 70°F (20°C)		 (in)
at 70°F (20°C)
251GR-02X100 - - 251GR-02X2K 1/8" 0.079" 0.023" 1,000 PSI 0.37"
251GR-02.5X100 - 251GR-02.5X1K - 5/32" 0.092" 0.032" 1,200 PSI 0.50"
251GR-03X100 - 251GR-03X1K - 3/16" 0.117" 0.035" 1,200 PSI 0.75"
251GR-04X100 - 251GR-04X1K - 1/4" 0.170" 0.040" 1,200 PSI 1.00"
251GR-05X100 251GR-05X500 - - 5/16" 0.232" 0.040" 1,000 PSI 1.25"
251OR Series | Orange
Part Number
100ft		 Part Number
500ft		 Part Number
1000ft		 Part Number
200ft		 Nominal
OD		 Nominal
ID		 Nominal
Wall		 Min.
Burst
Pressure		 Min.
Bend
Radius
(in) (in) (in) (PSI)
at 70°F (20°C)		 (in)
at 70°F (20°C)
251OR-02X100 - - 251OR-02X2K 1/8" 0.079" 0.023" 1,000 PSI 0.37"
251OR-02.5X100 - 251OR-02.5X1K - 5/32" 0.092" 0.032" 1,200 PSI 0.50"
251OR-03X100 - 251OR-03X1K - 3/16" 0.117" 0.035" 1,200 PSI 0.75"
251OR-04X100 - 251OR-04X1K - 1/4" 0.170" 0.040" 1,200 PSI 1.00"
251OR-05X100 251OR-05X500 - - 5/16" 0.232" 0.040" 1,000 PSI 1.25"
251RD Series | Red
Part Number
100ft		 Part Number
500ft		 Part Number
1000ft		 Part Number
200ft		 Nominal
OD		 Nominal
ID		 Nominal
Wall		 Min.
Burst
Pressure		 Min.
Bend
Radius
(in) (in) (in) (PSI)
at 70°F (20°C)		 (in)
at 70°F (20°C)
251RD-02X100 - - 251RD-02X2K 1/8" 0.079" 0.023" 1,000 PSI 0.37"
251RD-02.5X100 - 251RD-02.5X1K - 5/32" 0.092" 0.032" 1,200 PSI 0.50"
251RD-03X100 - 251RD-03X1K - 3/16" 0.117" 0.035" 1,200 PSI 0.75"
251RD-04X100 - 251RD-04X1K - 1/4" 0.170" 0.040" 1,200 PSI 1.00"
251RD-05X100 251RD-05X500 - - 5/16" 0.232" 0.040" 1,000 PSI 1.25"
251YE Series | Yellow
Part Number
100ft		 Part Number
500ft		 Part Number
1000ft		 Part Number
200ft		 Nominal
OD		 Nominal
ID		 Nominal
Wall		 Min.
Burst
Pressure		 Min.
Bend
Radius
(in) (in) (in) (PSI)
at 70°F (20°C)		 (in)
at 70°F (20°C)
251YE-02X100 - - 251YE-02X2K 1/8" 0.079" 0.023" 1,000 PSI 0.37"
251YE-02.5X100 - 251YE-02.5X1K - 5/32" 0.092" 0.032" 1,200 PSI 0.50"
251YE-03X100 - 251YE-03X1K - 3/16" 0.117" 0.035" 1,200 PSI 0.75"
251YE-04X100 - 251YE-04X1K - 1/4" 0.170" 0.040" 1,200 PSI 1.00"
251YE-05X100 251YE-05X500 - - 5/16" 0.232" 0.040" 1,000 PSI 1.25"

Additional Product Data:

Brand:
  • ENDURE
  • Kuri-Tec
Series:
  • 251 Series
Color(s):
  • Red

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
