25175 by Midland | Split Sleeve DOT Fitting | Connector with Nut and Sleeve | 1/8" Tube OD x 1/16" Pipe Thread | Brass
Midland Industries
Brass Fitting - Split Sleeve D.O.T. Fitting - Connector with Nut and Sleeve - Brass
Transmission Brass Fitting

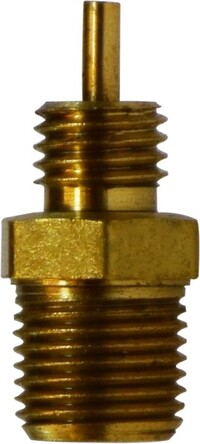

Shipped with nut and split sleeve, picture shows insert
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $11.13 |
| 40–79 | $10.06 |
| 80+ | $8.88 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Specifications and Approvals:
SPECIFICATIONS
| Applications: | Ideally suited for use in passive protected air transmission applications. A specially designed slotted sleeve helps eliminate notch stress related to over torque. | Used With: | Used with SAE J844 Type A nylon tube in pressure protected air transmission applications. |
|---|---|---|---|
| SAE Rating: | SAE J844 | Conformance: | N/A |
| Vibration: | Withstands variations from -40°F to +220°F (-40°C to + 104°C) | Temperature Range: | -40°F to +220°F (-40°C to + 104°C) |
| Lead Free: | These are NOT Lead Free | Tolerance: | N/A |
- Maximum working pressure up to 150 PSI.
| Crossover Series: | |||
|---|---|---|---|
| 1468 | 90794 | 282 | 90985 |
| Part Number | Tube O.D | Pipe Thread |
|---|---|---|
| 38769 (38-769) |
5/32" | 1/16" |
| 38770 (38-770) |
5/32" | 1/8" |
| 25175 (25-175) |
1/8" | 1/16" |
| 25176 (25-176) |
1/8" | 1/8" |
NOTE: 25 prefix parts do not have a stake, use 38 part number with white sealant only.
Dimension data can change without notice.
