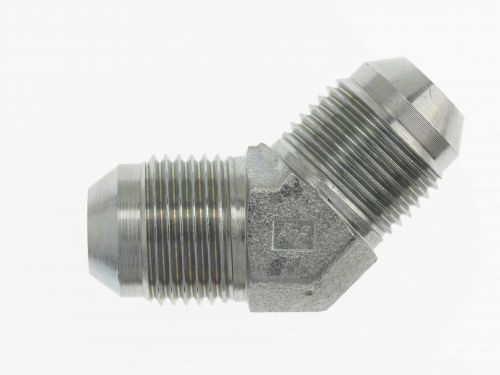

2504-04-04-SS by Brennan Inc. | -04 Male JIC x -04 Male JIC | 45° Elbow | Stainless Steel
Brennan Inc.
Tube Fittings & Adapters: 2504 - Male JIC x Male JIC 45° Elbow
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $63.78 |
| 40–79 | $57.67 |
| 80+ | $50.89 |
Discounts applied in cart/checkout.
Product Data:
Shape:
45 Degree
Ends Configuration:
Material(s):
 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | B1 Tube O.D. | B2 Tube O.D. | B1 SAE37° | B2 SAE37° | B1 Drill | B2 Drill | M1 Length | M2 Length | Y Flats |
| 2504-03-03-FG | Forged Steel | 3/16" | 3/16" | 3/8-24" | 3/8-24" | 0.125" | 0.125" | 0.69" | 0.69" | 0.438" |
| 2504-04-04-FG | Forged Steel | 1/4" | 1/4" | 7/16-20" | 7/16-20" | 0.172" | 0.172" | 0.72" | 0.72" | 0.438" |
| 2504-06-04-FG | Forged Steel | 3/8" | 3/8" | 9/16-18" | 7/16-20" | 0.297" | 0.172" | 0.83" | 0.82" | 0.562" |
| 2504-06-06-FG | Forged Steel | 3/8" | 3/8" | 9/16-18" | 9/16-18" | 0.297" | 0.297" | 0.83" | 0.83" | 0.562" |
| 2504-08-08-FG | Forged Steel | 1/2" | 1/2" | 3/4-16" | 3/4-16" | 0.391" | 0.391" | 0.98" | 0.98" | 0.750" |
| 2504-10-10-FG | Forged Steel | 5/8" | 5/8" | 7/8-14" | 7/8-14" | 0.484" | 0.484" | 1.11" | 1.11" | 0.875" |
| 2504-12-12-FG | Forged Steel | 3/4" | 3/4" | 1-1/16-12" | 1-1/16-12" | 0.609" | 0.609" | 1.28" | 1.28" | 1.062" |
| 2504-16-16-FG | Forged Steel | 1" | 1" | 1-5/16-12" | 1-5/16-12" | 0.844" | 0.844" | 1.47" | 1.47" | 1.312" |
| 2504-04-04-SS | Stainless Steel | 1/4" | 1/4" | 7/16-20" | 7/16-20" | 0.172" | 0.172" | 0.72" | 0.72" | 0.438" |
| 2504-06-06-SS | Stainless Steel | 3/8" | 3/8" | 9/16-18" | 9/16-18" | 0.297" | 0.297" | 0.83" | 0.83" | 0.562" |
| 2504-08-08-SS | Stainless Steel | 1/2" | 1/2" | 3/4-16" | 3/4-16" | 0.391" | 0.391" | 0.98" | 0.98" | 0.750" |
| 2504-12-12-SS | Stainless Steel | 3/4" | 3/4" | 1-1/16-12" | 1-1/16-12" | 0.609" | 0.609" | 1.28" | 1.28" | 1.062" |
| 2504-16-16-SS | Stainless Steel | 1" | 1" | 1-5/16-12" | 1-5/16-12" | 0.844" | 0.844" | 1.47" | 1.47" | 1.312" |
