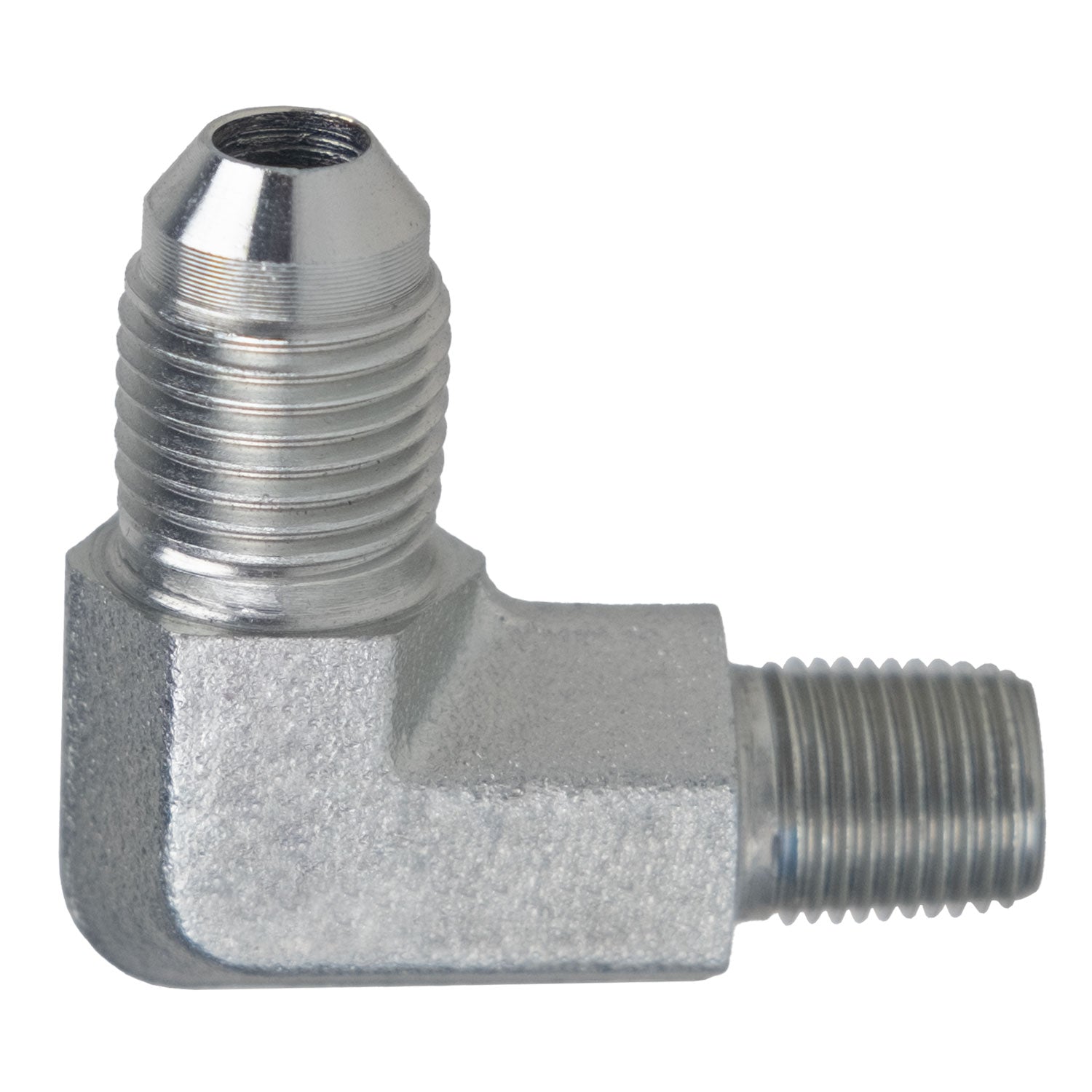

2501L1212 by Midland | Hydraulic Adapter | 3/4" Male JIC 37° Flare x 3/4" Male NPTF | 90° Elbow | Long | Steel
Midland Industries
Hydraulic Adapters: JIC 90° Male Elbow (Long) - Steel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $14.58 |
| 40–79 | $13.18 |
| 80+ | $11.63 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
| Technical Info: | |||
|---|---|---|---|
 |
|||
|---|---|---|---|
| Part Number | JIC Tube Size (1) |
JIC Tube Size Thread (1) |
Male Pipe (2) |
| 2501L52 | 5/16" | 1/2-20 | 1/8" |
| 2501L54 | 5/16" | 1/2-20 | 1/4" |
| 2501L62 | 3/8" | 9/16-18 | 1/8" |
| 2501L66 | 3/8" | 9/16-18 | 3/8" |
| 2501-L-06-08 | 3/8" | 9/16-18 | 1/2" |
| 2501L86 | 1/2" | 3/4-16 | 3/8" |
| 2501L88 | 1/2" | 3/4-16 | 1/2" |
| 2501-L-08-12 | 7/8" | 1-13/16-12 | 3/4" |
| 2501L108 | 5/8" | 7/8-14 | 1/2" |
| 2501L1212 | 3/4" | 1-1/16-12 | 3/4" |
| 2501-L-16-12 | 1" | 1-5/16-12 | 3/4" |
| 2501L1616 | 1" | 1-5/16-12 | 1" |
