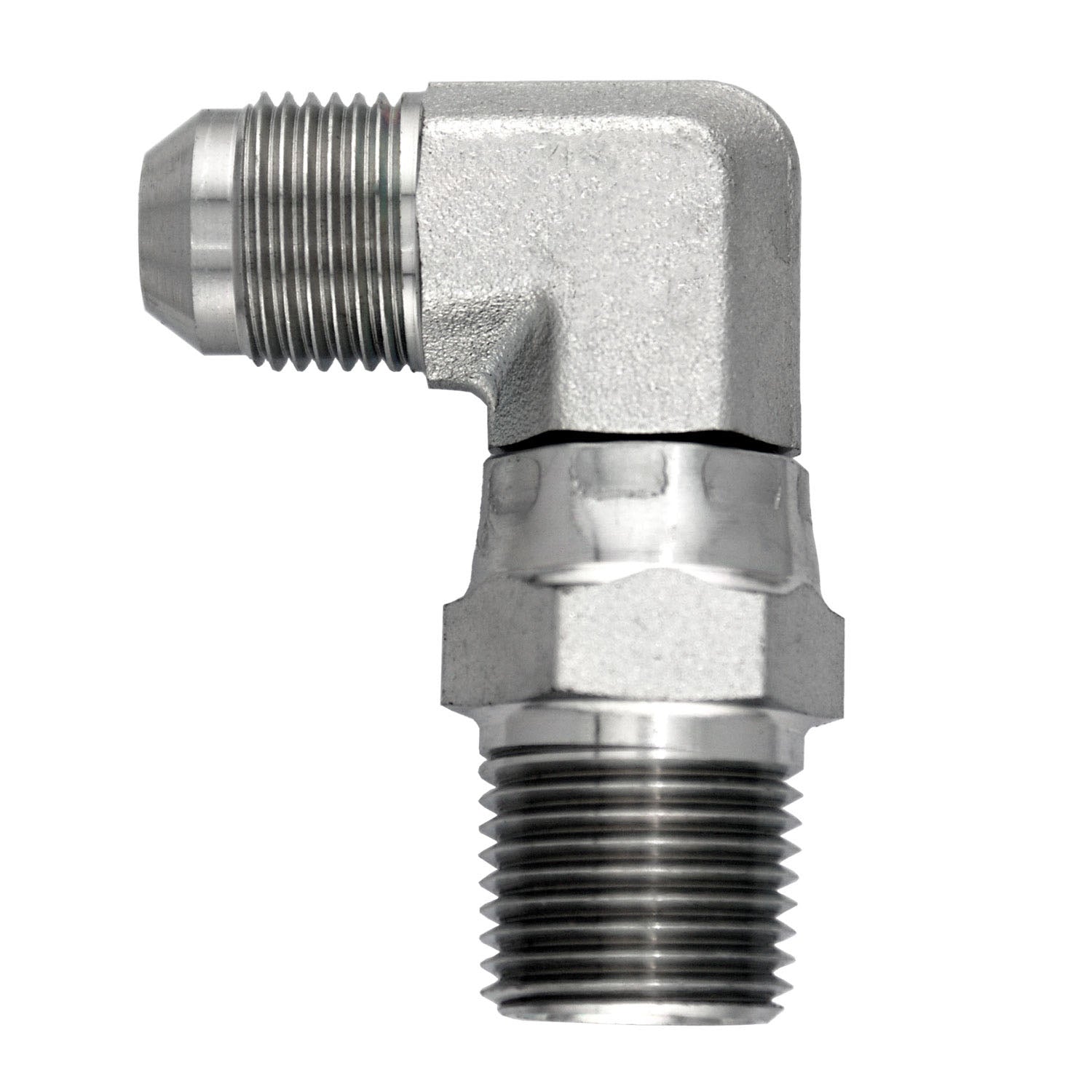

2501-S-04-04 by Midland | Hydraulic Adapter | 90° Elbow | 1/4" Male JIC x 1/4" Male NPSM Swivel | Steel
Midland Industries
Hydraulic Adapters: JIC To Pipe Swivel 90° Elbow - Male JIC x Male NPSM - Steel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $26.24 |
| 40–79 | $23.73 |
| 80+ | $20.94 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
| Technical Info: | |||
|---|---|---|---|
 |
|||
|---|---|---|---|
| Part Number | Male JIC Tube Size |
Male JIC Tube Thread (1) |
Male NPSM Swivel (2) |
| 2501-S-04-04 | 1/4" | 7/16-20 | 1/4" |
| 2501S64 | 3/8" | 9/16-18 | 1/4" |
| 2501S66 | 3/8" | 9/16-18 | 3/8" |
| 2501S86 | 1/2" | 3/4-16 | 3/8" |
| 2501-S-08-08 | 1/2" | 3/4-16 | 1/2" |
| 2501S108 | 5/8" | 7/8-14 | 1/2" |
| 2501S1212 | 3/4" | 1-1/16-12 | 3/4" |
