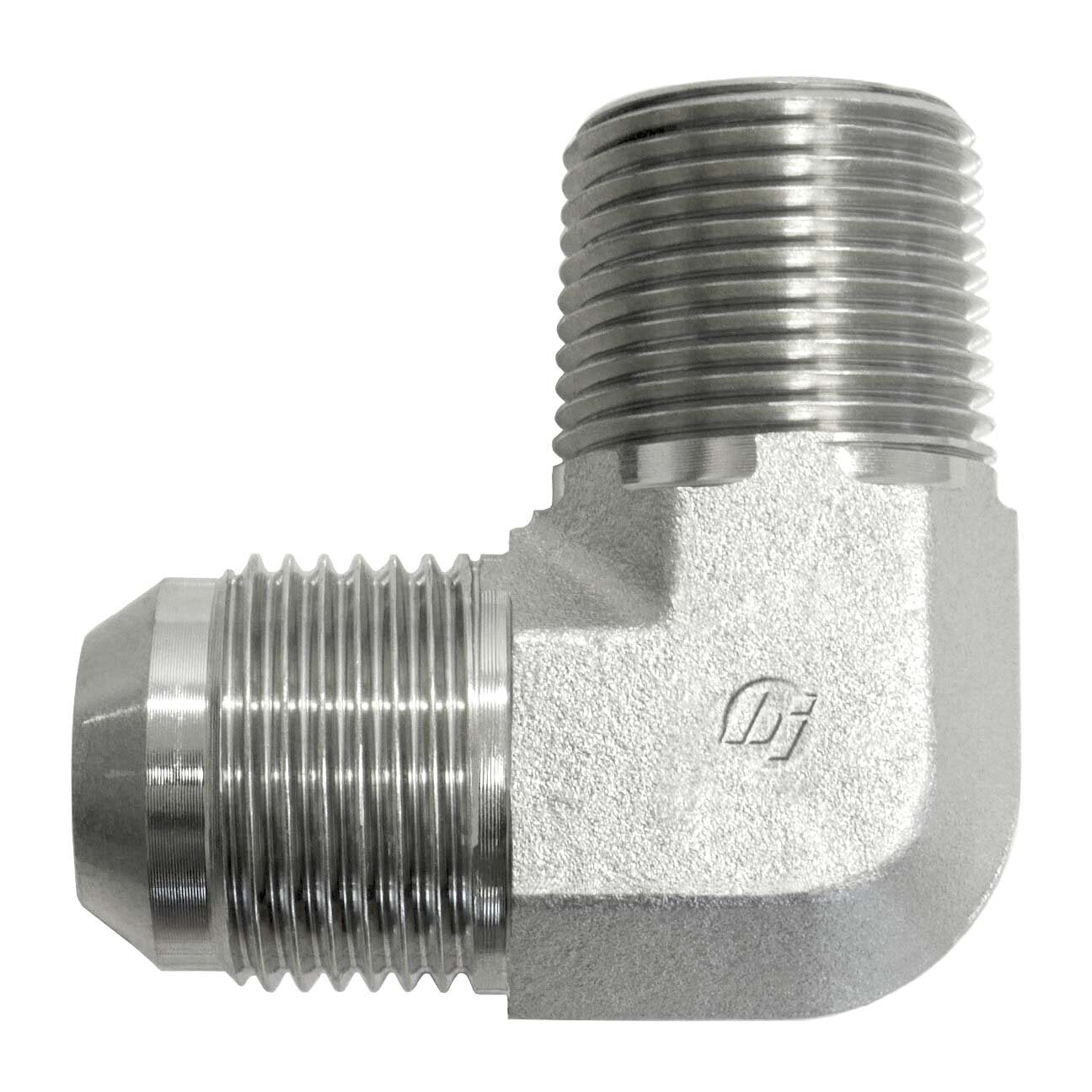

2501-12-20-FG by Brennan Inc | -12 Male JIC x -20 Male NPTF | 90° Elbow | Forged Steel
Brennan Inc.
Tube Fittings & Adapters: 2501 - Male JIC x Male Pipe | 90° Elbow
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $42.08 |
| 40–79 | $38.05 |
| 80+ | $33.58 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | Tube O.D. | B1 SAE 37° | A2 NPTF | B1 Drill | A2 Drill | M Length | L Length | Y Flats |
| 2501-02-02-FG | Forged Steel | 1/8" | 5/16-24" | 1/8-27" | 0.062" | 0.188" | 0.770" | 0.72" | 0.438" |
| 2501-02-04-FG | Forged Steel | 1/8" | 5/16-24" | 1/4-18" | 0.062" | 0.281" | 0.930" | 1.090" | 0.562" |
| 2501-03-02-FG | Forged Steel | 3/16" | 3/8-24" | 1/8-27" | 0.125" | 0.188" | 0.83" | 0.72" | 0.438" |
| 2501-04-01-FG | Forged Steel | 1/4" | 7/16-20" | 1/16-27" | 0.172" | 0.109" | 0.89" | 0.78" | 0.438" |
| 2501-04-02-FG | Forged Steel | 1/4" | 7/16-20" | 1/8-27" | 0.172" | 0.188" | 0.89" | 0.78" | 0.438" |
| 2501-04-04-FG | Forged Steel | 1/4" | 7/16-20" | 1/4-18" | 0.172" | 0.281" | 1.05" | 1.09" | 0.562" |
| 2501-04-06-FG | Forged Steel | 1/4" | 7/16-20" | 3/8-18" | 0.172" | 0.406" | 1.12" | 1.22" | 0.750" |
| 2501-04-08-FG | Forged Steel | 1/4" | 7/16-20" | 1/2-14" | 0.172" | 0.531" | 1.210" | 1.470" | 0.875" |
| 2501-04-12-FG | Forged Steel | 1/4" | 7/16-20" | 3/4-14" | 0.172" | 0.719" | 1.35" | 1.59" | 1.062" |
| 2501-05-02-FG | Forged Steel | 5/16" | 1/2-20" | 1/8-27" | 0.234" | 0.188" | 0.95" | 0.78" | 0.562" |
| 2501-05-04-FG | Forged Steel | 5/16" | 1/2-20" | 1/4-18" | 0.234" | 0.281" | 1.05" | 1.09" | 0.562" |
| 2501-05-06-FG | Forged Steel | 5/16" | 1/2-20" | 3/8-18" | 0.234" | 0.406" | 1.120" | 1.220" | 0.750" |
| 2501-05-08-FG | Forged Steel | 5/16" | 1/2-20" | 1/2-14" | 0.234" | 0.531" | 1.21" | 1.47" | 0.875" |
| 2501-06-02-FG | Forged Steel | 3/8" | 9/16-18" | 1/8-27" | 0.297" | 0.188" | 1.060" | 0.900" | 0.562" |
| 2501-06-04-FG | Forged Steel | 3/8" | 9/16-18" | 1/4-18" | 0.297" | 0.281" | 1.060" | 1.09" | 0.562" |
| 2501-06-06-FG | Forged Steel | 3/8" | 9/16-18" | 3/8-18" | 0.297" | 0.406" | 1.140" | 1.220" | 0.750" |
| 2501-06-08-FG | Forged Steel | 3/8" | 9/16-18" | 1/2-14" | 0.297" | 0.531" | 1.22" | 1.47" | 0.875" |
| 2501-06-12-FG | Forged Steel | 3/8" | 9/16-18" | 3/4-14" | 0.297" | 0.719" | 1.31" | 1.59" | 1.062" |
| 2501-08-02-FG | Forged Steel | 1/2" | 3/4-16" | 1/8-27" | 0.391" | 0.188" | 1.25" | 1.03" | 0.750" |
| 2501-08-04-FG | Forged Steel | 1/2" | 3/4-16" | 1/4-18" | 0.391" | 0.281" | 1.25" | 1.22" | 0.750" |
| 2501-08-06-FG | Forged Steel | 1/2" | 3/4-16" | 3/8-18" | 0.391" | 0.406" | 1.25" | 1.22" | 0.750" |
| 2501-08-08-FG | Forged Steel | 1/2" | 3/4-16" | 1/2-14" | 0.391" | 0.531" | 1.330" | 1.470" | 0.875" |
| 2501-08-12-FG | Forged Steel | 1/2" | 3/4-16" | 3/4-14" | 0.391" | 0.719" | 1.420" | 1.590" | 1.062" |
| 2501-08-16-FG | Forged Steel | 1/2" | 3/4-16" | 1-11-1/2" | 0.391" | 0.938" | 1.520" | 1.970" | 1.312" |
| 2501-10-04-FG | Forged Steel | 5/8" | 7/8-14" | 1/4-18" | 0.484" | 0.281" | 1.45" | 1.34" | 0.875" |
| 2501-10-06-FG | Forged Steel | 5/8" | 7/8-14" | 3/8-18" | 0.484" | 0.406" | 1.45" | 1.28" | 0.875" |
| 2501-10-08-FG | Forged Steel | 5/8" | 7/8-14" | 1/2-14" | 0.484" | 0.531" | 1.45" | 1.47" | 0.875" |
| 2501-10-12-FG | Forged Steel | 5/8" | 7/8-14" | 3/4-14" | 0.484" | 0.719" | 1.54" | 1.59" | 1.062" |
| 2501-10-16-FG | Forged Steel | 5/8" | 7/8-14" | 1-11-1/2" | 0.484" | 0.938" | 1.640" | 1.970" | 1.312" |
| 2501-12-06-FG | Forged Steel | 3/4" | 1-1/16-12" | 3/8-18" | 0.609" | 0.406" | 1.66" | 1.40" | 1.062" |
| 2501-12-08-FG | Forged Steel | 3/4" | 1-1/16-12" | 1/2-14" | 0.609" | 0.531" | 1.66" | 1.59" | 1.062" |
| 2501-12-12-FG | Forged Steel | 3/4" | 1-1/16-12" | 3/4-14" | 0.609" | 0.719" | 1.66" | 1.59" | 1.062" |
| 2501-12-16-FG | Forged Steel | 3/4" | 1-1/16-12" | 1-11-1/2" | 0.609" | 0.938" | 1.76" | 1.97" | 1.312" |
| 2501-12-20-FG | Forged Steel | 3/4" | 1-1/16-12" | 1-1/4-11-1/2" | 0.609" | 1.250" | 1.97" | 2.38" | 1.625" |
| 2501-14-08-FG | Forged Steel | 7/8" | 1-3/16-12" | 1/2-14" | 0.719" | 0.531" | 1.80" | 1.69" | 1.312" |
| 2501-14-12-FG | Forged Steel | 7/8" | 1-3/16-12" | 3/4-14" | 0.719" | 0.719" | 1.80" | 1.69" | 1.312" |
| 2501-14-16-FG | Forged Steel | 7/8" | 1-3/16-12" | 1-11-1/2" | 0.719" | 0.938" | 1.80" | 1.97" | 1.312" |
| 2501-16-08-FG | Forged Steel | 1" | 1-5/16-12" | 1/2-14" | 0.844" | 0.531" | 1.81" | 1.78" | 1.312" |
| 2501-16-12-FG | Forged Steel | 1" | 1-5/16-12" | 1/2-14" | 0.844" | 0.531" | 1.81" | 1.78" | 1.312" |
| 2501-16-16-FG | Forged Steel | 1" | 1-5/16-12" | 1-11-1/2" | 0.844" | 0.938" | 1.81" | 1.97" | 1.312" |
| 2501-16-20-FG | Forged Steel | 1" | 1-5/16-12" | 1-1/4-11-1/2" | 0.844" | 1.250" | 2.01" | 2.38" | 1.625" |
| 2501-16-24-FG | Forged Steel | 1" | 1-5/16-12" | 1-1/2-11-1/2" | 0.844" | 1.500" | 2.16" | 2.64" | 1.875" |
| 2501-20-12-FG | Forged Steel | 1-1/4" | 1-5/8-12" | 3/4-14" | 1.078" | 0.719" | 2.06" | 2.16" | 1.625" |
| 2501-20-16-FG | Forged Steel | 1-1/4" | 1-5/8-12" | 1-11-1/2" | 1.078" | 0.938" | 2.06" | 2.35" | 1.625" |
| 2501-20-20-FG | Forged Steel | 1-1/4" | 1-5/8-12" | 1-1/4-11-1/2" | 1.078" | 1.250" | 2.06" | 2.38" | 1.625" |
| 2501-20-24-FG | Forged Steel | 1-1/4" | 1-5/8-12" | 1-1/2-11-1/2" | 1.078" | 1.500" | 2.20" | 2.64" | 1.875" |
| 2501-24-16-FG | Forged Steel | 1-1/2" | 1-7/8-12" | 1-11-1/2" | 1.312" | 0.938" | 2.330" | 2.580" | 1.875" |
| 2501-24-20-FG | Forged Steel | 1-1/2" | 1-7/8-12" | 1-1/4-11-1/2" | 1.312" | 1.250" | 2.330" | 2.61" | 1.875" |
| 2501-24-24-FG | Forged Steel | 1-1/2" | 1-7/8-12" | 1-1/2-11-1/2" | 1.312" | 1.500" | 2.330" | 2.640" | 1.875" |
| 2501-24-32-FG | Forged Steel | 1-1/2" | 1-7/8-12" | 2-11-1/2" | 1.312" | 1.938" | 2.81" | 3.00" | 2.500" |
| 2501-32-24-FG | Forged Steel | 2" | 2-1/2-12" | 1-1/2-11-1/2" | 1.781" | 1.500" | 3.06" | 2.97" | 2.500" |
| 2501-32-32-FG | Forged Steel | 2" | 2-1/2-12" | 2-11-1/2" | 1.781" | 1.938" | 3.06" | 3.00" | 2.500" |
| 2501-40-40-FG | Forged Steel | 2-1/2" | 3-12" | 2-1/2-8" | 2.318" | 2.318" | 3.25" | 3.95" | 3.234" |
| 2501-03-02-B | Brass | 3/16" | 3/8-24" | 1/8-27" | 0.125" | 0.188" | 0.83" | 0.72" | 0.438" |
| 2501-04-02-B | Brass | 1/4" | 7/16-20" | 1/8-27" | 0.172" | 0.188" | 0.89" | 0.78" | 0.438" |
| 2501-04-04-B | Brass | 1/4" | 7/16-20" | 1/4-18" | 0.172" | 0.281" | 1.05" | 1.09" | 0.562" |
| 2501-04-06-B | Brass | 1/4" | 7/16-20" | 3/8-18" | 0.172" | 0.406" | 1.12" | 1.22" | 0.750" |
| 2501-05-04-B | Brass | 5/16" | 1/2-20" | 1/4-18" | 0.234" | 0.281" | 1.05" | 1.09" | 0.562" |
| 2501-06-02-B | Brass | 3/8" | 9/16-18" | 1/8-27" | 0.297" | 0.188" | 1.060" | 0.900" | 0.562" |
| 2501-06-04-B | Brass | 3/8" | 9/16-18" | 1/4-18" | 0.297" | 0.281" | 1.060" | 1.09" | 0.562" |
| 2501-06-06-B | Brass | 3/8" | 9/16-18" | 3/8-18" | 0.297" | 0.406" | 1.140" | 1.220" | 0.750" |
| 2501-06-08-B | Brass | 3/8" | 9/16-18" | 1/2-14" | 0.297" | 0.531" | 1.22" | 1.47" | 0.875" |
| 2501-08-04-B | Brass | 1/2" | 3/4-16" | 1/4-18" | 0.391" | 0.281" | 1.25" | 1.22" | 0.750" |
| 2501-08-06-B | Brass | 1/2" | 3/4-16" | 3/8-18" | 0.391" | 0.406" | 1.25" | 1.22" | 0.750" |
| 2501-08-08-B | Brass | 1/2" | 3/4-16" | 1/2-14" | 0.391" | 0.531" | 1.330" | 1.470" | 0.875" |
| 2501-08-12-B | Brass | 1/2" | 3/4-16" | 3/4-14" | 0.391" | 0.719" | 1.420" | 1.590" | 1.062" |
| 2501-10-06-B | Brass | 5/8" | 7/8-14" | 3/8-18" | 0.484" | 0.406" | 1.45" | 1.28" | 0.875" |
| 2501-10-08-B | Brass | 5/8" | 7/8-14" | 1/2-14" | 0.484" | 0.531" | 1.45" | 1.47" | 0.875" |
| 2501-10-12-B | Brass | 5/8" | 7/8-14" | 3/4-14" | 0.484" | 0.719" | 1.54" | 1.59" | 1.062" |
| 2501-12-08-B | Brass | 3/4" | 1-1/16-12" | 1/2-14" | 0.609" | 0.531" | 1.66" | 1.59" | 1.062" |
| 2501-12-12-B | Brass | 3/4" | 1-1/16-12" | 3/4-14" | 0.609" | 0.719" | 1.66" | 1.59" | 1.062" |
| 2501-12-16-B | Brass | 3/4" | 1-1/16-12" | 1-11-1/2" | 0.609" | 0.938" | 1.76" | 1.97" | 1.312" |
| 2501-16-12-B | Brass | 1" | 1-5/16-12" | 3/4-14" | 0.844" | 0.719" | 1.81" | 1.78" | 1.312" |
| 2501-16-16-B | Brass | 1" | 1-5/16-12" | 1-11-1/2" | 0.844" | 0.938" | 1.81" | 1.97" | 1.312" |
| 2501-20-20-B | Brass | 1-1/4" | 1-5/8-12" | 1-1/4-11-1/2" | 1.078" | 1.250" | 2.06" | 2.38" | 1.625" |
| 2501-24-24-B | Brass | 1-1/2" | 1-7/8-12" | 1-1/2-11-1/2" | 1.312" | 1.500" | 2.330" | 2.64" | 1.875" |
| 2501-02-02-SS | Stainless Steel | 1/8" | 5/16-24" | 1/8-27" | 0.062" | 0.188" | 0.770" | 0.72" | 0.438" |
| 2501-02-04-SS | Stainless Steel | 1/8" | 5/16-24" | 1/4-18" | 0.062" | 0.281" | 0.930" | 1.090" | 0.562" |
| 2501-03-02-SS | Stainless Steel | 3/16" | 3/8-24" | 1/8-27" | 0.125" | 0.188" | 0.83" | 0.72" | 0.438" |
| 2501-04-02-SS | Stainless Steel | 1/4" | 7/16-20" | 1/8-27" | 0.172" | 0.188" | 0.89" | 0.78" | 0.438" |
| 2501-04-06-SS | Stainless Steel | 1/4" | 7/16-20" | 3/8-18" | 0.172" | 0.406" | 1.12" | 1.22" | 0.750" |
| 2501-04-08-SS | Stainless Steel | 1/4" | 7/16-20" | 1/2-14" | 0.172" | 0.531" | 1.210" | 1.470" | 0.875" |
| 2501-05-02-SS | Stainless Steel | 5/16" | 1/2-20" | 1/8-27" | 0.234" | 0.188" | 0.95" | 0.78" | 0.562" |
| 2501-05-04-SS | Stainless Steel | 5/16" | 1/2-20" | 1/4-18" | 0.234" | 0.281" | 1.05" | 1.09" | 0.562" |
| 2501-05-06-SS | Stainless Steel | 5/16" | 1/2-20" | 3/8-18" | 0.234" | 0.406" | 1.12" | 1.22" | 0.750" |
| 2501-06-02-SS | Stainless Steel | 3/8" | 9/16-18" | 1/8-27" | 0.297" | 0.188" | 1.060" | 0.900" | 0.562" |
| 2501-06-04-SS | Stainless Steel | 3/8" | 9/16-18" | 1/4-18" | 0.297" | 0.281" | 1.060" | 1.09" | 0.562" |
| 2501-06-06-SS | Stainless Steel | 3/8" | 9/16-18" | 3/8-18" | 0.297" | 0.406" | 1.140" | 1.220" | 0.750" |
| 2501-06-08-SS | Stainless Steel | 3/8" | 9/16-18" | 1/2-14" | 0.297" | 0.531" | 1.22" | 1.47" | 0.875" |
| 2501-06-12-SS | Stainless Steel | 3/8" | 9/16-18" | 3/4-14" | 0.297" | 0.719" | 1.31" | 1.59" | 1.062" |
| 2501-08-04-SS | Stainless Steel | 1/2" | 3/4-16" | 1/4-18" | 0.391" | 0.281" | 1.25" | 1.22" | 0.750" |
| 2501-08-06-SS | Stainless Steel | 1/2" | 3/4-16" | 3/8-18" | 0.391" | 0.406" | 1.25" | 1.22" | 0.750" |
| 2501-08-08-SS | Stainless Steel | 1/2" | 3/4-16" | 1/2-14" | 0.391" | 0.531" | 1.330" | 1.470" | 0.875" |
| 2501-08-12-SS | Stainless Steel | 1/2" | 3/4-16" | 3/4-14" | 0.391" | 0.719" | 1.420" | 1.590" | 1.062" |
| 2501-08-16-SS | Stainless Steel | 1/2" | 3/4-16" | 1-11-1/2" | 0.391" | 0.938" | 1.520" | 1.970" | 1.312" |
| 2501-10-06-SS | Stainless Steel | 5/8" | 7/8-14" | 3/8-18" | 0.484" | 0.406" | 1.45" | 1.28" | 0.875" |
| 2501-10-08-SS | Stainless Steel | 5/8" | 7/8-14" | 1/2-14" | 0.484" | 0.531" | 1.45" | 1.47" | 0.875" |
| 2501-10-12-SS | Stainless Steel | 5/8" | 7/8-14" | 3/4-14" | 0.484" | 0.719" | 1.54" | 1.59" | 1.062" |
| 2501-12-06-SS | Stainless Steel | 3/4" | 1-1/16-12" | 3/8-18" | 0.609" | 0.406" | 1.66" | 1.40" | 1.062" |
| 2501-12-08-SS | Stainless Steel | 3/4" | 1-1/16-12" | 1/2-14" | 0.609" | 0.531" | 1.66" | 1.59" | 1.062" |
| 2501-12-12-SS | Stainless Steel | 3/4" | 1-1/16-12" | 3/4-14" | 0.609" | 0.719" | 1.66" | 1.59" | 1.062" |
| 2501-12-16-SS | Stainless Steel | 3/4" | 1-1/16-12" | 1-11-1/2" | 0.609" | 0.938" | 1.76" | 1.97" | 1.312" |
| 2501-16-08-SS | Stainless Steel | 1" | 1-5/16-12" | 1/2-14" | 0.844" | 0.531" | 1.81" | 1.78" | 1.312" |
| 2501-16-12-SS | Stainless Steel | 1" | 1-5/16-12" | 3/4-14" | 0.844" | 0.719" | 1.81" | 1.78" | 1.312" |
| 2501-16-16-SS | Stainless Steel | 1" | 1-5/16-12" | 1-11-1/2" | 0.844" | 0.938" | 1.81" | 1.97" | 1.312" |
| 2501-16-20-SS | Stainless Steel | 1" | 1-5/16-12" | 1-1/4-11-1/2" | 0.844" | 1.250" | 2.01" | 2.38" | 1.625" |
| 2501-20-16-SS | Stainless Steel | 1-1/4" | 1-5/8-12" | 1-11-1/2" | 1.078" | 0.938" | 2.06" | 2.35" | 1.625" |
| 2501-20-20-SS | Stainless Steel | 1-1/4" | 1-5/8-12" | 1-1/4-11-1/2" | 1.078" | 1.250" | 2.06" | 2.38" | 1.625" |
| 2501-20-24-SS | Stainless Steel | 1-1/4" | 1-5/8-12" | 1-1/2-11-1/2" | 1.078" | 1.500" | 2.20" | 2.64" | 1.875" |
| 2501-24-20-SS | Stainless Steel | 1-1/2" | 1-7/8-12" | 1-1/4-11-1/2" | 1.312" | 1.250" | 2.330" | 2.61" | 1.875" |
| 2501-24-24-SS | Stainless Steel | 1-1/2" | 1-7/8-12" | 1-1/2-11-1/2" | 1.312" | 1.500" | 2.330" | 2.640" | 1.875" |
| 2501-32-32-SS | Stainless Steel | 2" | 2-1/2-12" | 2-11-1/2" | 1.781" | 1.938" | 3.06" | 3.00" | 2.500" |
