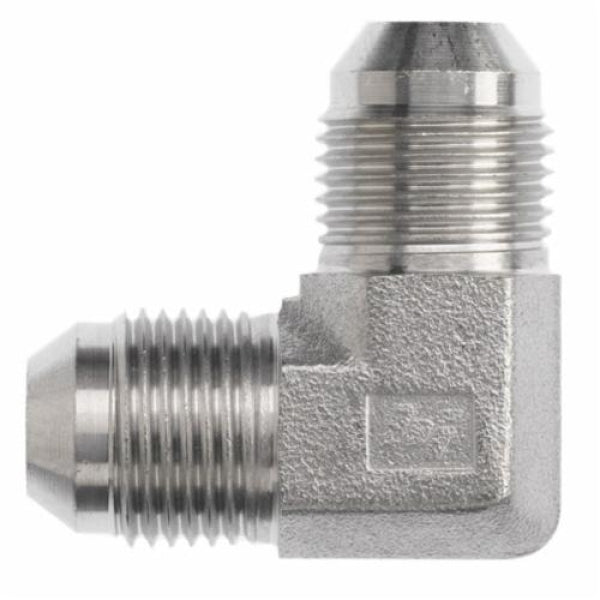

Tube Fittings & Adapters: 2500 - Male JIC x Male JIC 90° Elbow
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | B1 Tube O.D. | B2 Tube O.D. | B1 SAE 37° | B2 SAE 37° | B1 Drill | B2 Drill | M1 Length | M2 Length | Y Flats |
| 2500-02-02-FG | Forged Steel | 1/8" | 1/8" | 5/16-24" | 5/16-24" | 0.062" | 0.062" | 0.770" | 0.770" | 0.438" |
| 2500-03-03-FG | Forged Steel | 3/16" | 3/16" | 3/8-24" | 3/8-24" | 0.125" | 0.125" | 0.830" | 0.830" | 0.438" |
| 2500-04-04-FG | Forged Steel | 1/4" | 1/4" | 7/16-20" | 7/16-20" | 0.172" | 0.172" | 0.890" | 0.890" | 0.438" |
| 2500-05-04-FG | Forged Steel | 5/16" | 1/4" | 1/2-20" | 7/16-20" | 0.234" | 0.172" | 0.95" | 0.95" | 0.562" |
| 2500-05-05-FG | Forged Steel | 5/16" | 5/16" | 1/2-20" | 1/2-20" | 0.234" | 0.234" | 0.950" | 0.950" | 0.562" |
| 2500-06-04-FG | Forged Steel | 3/8" | 1/4" | 9/16-18" | 7/16-20" | 0.297" | 0.172" | 1.06" | 1.05" | 0.562" |
| 2500-06-05-FG | Forged Steel | 3/8" | 5/16" | 9/16-18" | 1/2-20" | 0.297" | 0.234" | 1.06" | 1.05" | 0.562" |
| 2500-06-06-FG | Forged Steel | 3/8" | 3/8" | 9/16-18" | 9/16-18" | 0.297" | 0.297" | 1.06" | 1.06" | 0.562" |
| 2500-08-04-FG | Forged Steel | 1/2" | 1/4" | 3/4-16" | 7/16-20" | 0.391" | 0.172" | 1.25" | 1.12" | 0.750" |
| 2500-08-06-FG | Forged Steel | 1/2" | 3/8" | 3/4-16" | 9/16-18" | 0.391" | 0.297" | 1.25" | 1.14" | 0.750" |
| 2500-08-08-FG | Forged Steel | 1/2" | 1/2" | 3/4-16" | 3/4-16" | 0.391" | 0.391" | 1.25" | 1.25" | 0.750" |
| 2500-10-08-FG | Forged Steel | 5/8" | 1/2" | 7/8-14" | 3/4-16" | 0.484" | 0.391" | 1.450" | 1.330" | 0.875" |
| 2500-10-10-FG | Forged Steel | 5/8" | 5/8" | 7/8-14" | 7/8-14" | 0.484" | 0.484" | 1.450" | 1.450" | 0.875" |
| 2500-12-08-FG | Forged Steel | 3/4" | 1/2" | 1-1/16-12" | 3/4-16" | 0.609" | 0.391" | 1.660" | 1.420" | 1.062" |
| 2500-12-10-FG | Forged Steel | 3/4" | 5/8" | 1-1/16-12" | 7/8-14" | 0.609" | 0.484" | 1.66" | 1.54" | 1.062" |
| 2500-12-12-FG | Forged Steel | 3/4" | 3/4" | 1-1/16-12" | 1-1/16-12" | 0.609" | 0.609" | 1.66" | 1.66" | 1.062" |
| 2500-14-14-FG | Forged Steel | 7/8" | 7/8" | 1-3/16-12" | 1-3/16-12" | 0.719" | 0.719" | 1.80" | 1.80" | 1.312" |
| 2500-16-12-FG | Forged Steel | 1" | 3/4" | 1-5/16-12" | 1-1/16-12" | 0.844" | 0.609" | 1.810" | 1.760" | 1.312" |
| 2500-16-16-FG | Forged Steel | 1" | 1" | 1-5/16-12" | 1-5/16-12" | 0.844" | 0.844" | 1.810" | 1.810" | 1.312" |
| 2500-20-20-FG | Forged Steel | 1-1/4" | 1-1/4" | 1-5/8-12" | 1-5/8-12" | 1.078" | 1.078" | 2.06" | 2.06" | 1.625" |
| 2500-24-20-FG | Forged Steel | 1-1/2" | 1-1/4" | 2-12" | 1-11/16-12" | 1.260" | 1.024" | 1.92" | 1.92" | 1.875" |
| 2500-24-24-FG | Forged Steel | 1-1/2" | 1-1/2" | 1-7/8-12" | 1-7/8-12" | 1.312" | 1.312" | 2.33" | 2.33" | 1.875" |
| 2500-32-32-FG | Forged Steel | 2" | 2" | 2-1/2-12" | 2-1/2-12" | 1.781" | 1.781" | 3.060" | 3.060" | 2.500" |
| 2500-04-04-B | Brass | 1/4" | 1/4" | 7/16-20" | 7/16-20" | 0.172" | 0.172" | 0.890" | 0.890" | 0.438" |
| 2500-06-06-B | Brass | 3/8" | 3/8" | 9/16-18" | 9/16-18" | 0.297" | 0.297" | 1.06" | 1.06" | 0.562" |
| 2500-08-08-B | Brass | 1/2" | 1/2" | 3/4-16" | 3/4-16" | 0.391" | 0.391" | 1.25" | 1.25" | 0.750" |
| 2500-12-12-B | Brass | 3/4" | 3/4" | 1-1/16-12" | 1-1/16-12" | 0.609" | 0.609" | 1.66" | 1.66" | 1.062" |
| 2500-03-03-SS | Stainless Steel | 3/16" | 3/16" | 3/8-24" | 3/8-24" | 0.125" | 0.125" | 0.830" | 0.830" | 0.438" |
| 2500-04-04-SS | Stainless Steel | 1/4" | 1/4" | 7/16-20" | 7/16-20" | 0.172" | 0.172" | 0.890" | 0.890" | 0.438" |
| 2500-05-05-SS | Stainless Steel | 5/16" | 5/16" | 1/2-20" | 1/2-20" | 0.234" | 0.234" | 0.950" | 0.950" | 0.562" |
| 2500-06-06-SS | Stainless Steel | 3/8" | 3/8" | 9/16-18" | 9/16-18" | 0.297" | 0.297" | 1.06" | 1.06" | 0.562" |
| 2500-08-08-SS | Stainless Steel | 1/2" | 1/2" | 3/4-16" | 3/4-16" | 0.391" | 0.391" | 1.25" | 1.25" | 0.750" |
| 2500-10-10-SS | Stainless Steel | 5/8" | 5/8" | 7/8-14" | 7/8-14" | 0.484" | 0.484" | 1.450" | 1.450" | 0.875" |
| 2500-12-12-SS | Stainless Steel | 3/4" | 3/4" | 1-1/16-12" | 1-1/16-12" | 0.609" | 0.609" | 1.66" | 1.66" | 1.062" |
| 2500-16-16-SS | Stainless Steel | 1" | 1" | 1-5/16-12" | 1-5/16-12" | 0.844" | 0.844" | 1.810" | 1.810" | 1.312" |
| 2500-20-20-SS | Stainless Steel | 1-1/4" | 1-1/4" | 1-5/8-12" | 1-5/8-12" | 1.078" | 1.078" | 2.06" | 2.06" | 1.625" |
| 2500-24-24-SS | Stainless Steel | 1-1/2" | 1-1/2" | 1-7/8-12" | 1-7/8-12" | 1.312" | 1.312" | 2.33" | 2.33" | 1.875" |
| 2500-32-32-SS | Stainless Steel | 2" | 2" | 2-1/2-12" | 2-1/2-12" | 1.781" | 1.781" | 3.060" | 3.060" | 2.500" |
