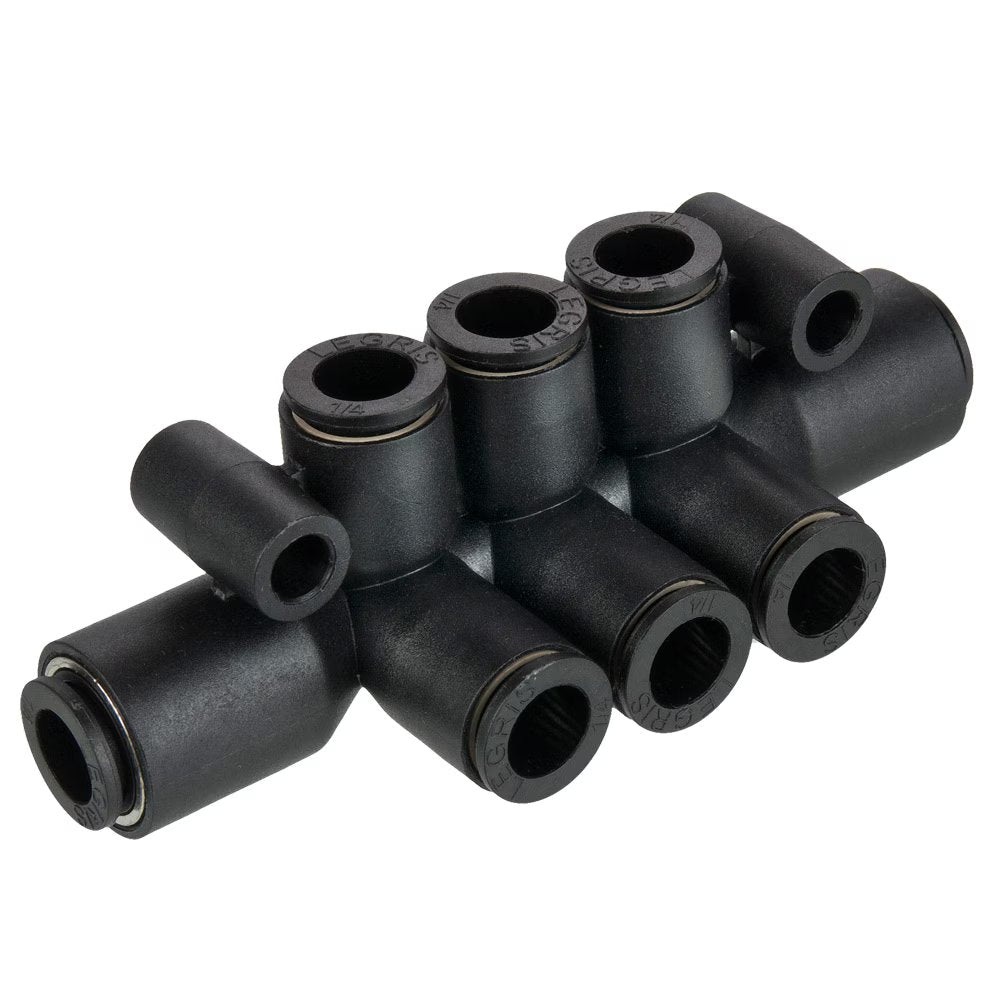

24PLPD-6M-4M by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Tube to Tube Fittings | 6mm to 4mm Double Manifold Tube Size | 72.0mm Length (L) | 4.2mm Mounting Hole Diameter | Multiple Tee | Glass-Reinforced Nylon | Pack of 5

24PLPD-6M-4M by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Tube to Tube Fittings | 6mm to 4mm Double Manifold Tube Size | 72.0mm Length (L) | 4.2mm Mounting Hole Diameter | Multiple Tee | Glass-Reinforced Nylon | Pack of 5

Sale price$89.20

by Parker Hannifin
Push-to-Connect Fittings:24PLPD Double Multiple Tee

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
5–19 $83.85
20–59 $75.82
60+ $66.90
Discounts applied in cart/checkout.

Product Data:

Series:
  • 24PLPD Series
Shape:

Manifold

Ends Configuration:
  • 6mm Push-to-Connect
  • 6mm Push-to-Connect
  • 4mm Push-to-Connect
  • 4mm Push-to-Connect
  • 4mm Push-to-Connect
  • 4mm Push-to-Connect
  • 4mm Push-to-Connect
  • 4mm Push-to-Connect
  • Some Ends Match
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Pneumatic
  • Industrial
  • Robotic
  • Automation
  • Printing
  • Packaging
  • Textile
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 290 PSI (19.9 bar) depending on tubing
Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range: -4° to +175° F (-20° to +79.4° C)
5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • Fluoropolymer
  • Polyethylene
Part Number Tube Size 1 Tube Size 2 H L M N Mounting Hole Diameter
24PLPD-6M-4M 6 mm 4 mm 18.5 mm 72.0 mm 43.0 mm 11.5 mm 4.2 mm
24PLPD-8M-4M 8 mm 4 mm 18.5 mm 73.0 mm 43.0 mm 11.5 mm 4.2 mm
24PLPD-8M-6M 8 mm 6 mm 18.5 mm 73.0 mm 43.0 mm 11.5 mm 4.2 mm
24PLPD-10M-6M 10 mm 6 mm 23.0 mm 84.0 mm 52.0 mm 14.5 mm 4.2 mm
24PLPD-10M-8M 10 mm 8 mm 23.5 mm 84.0 mm 52.0 mm 14.5 mm 4.2 mm
