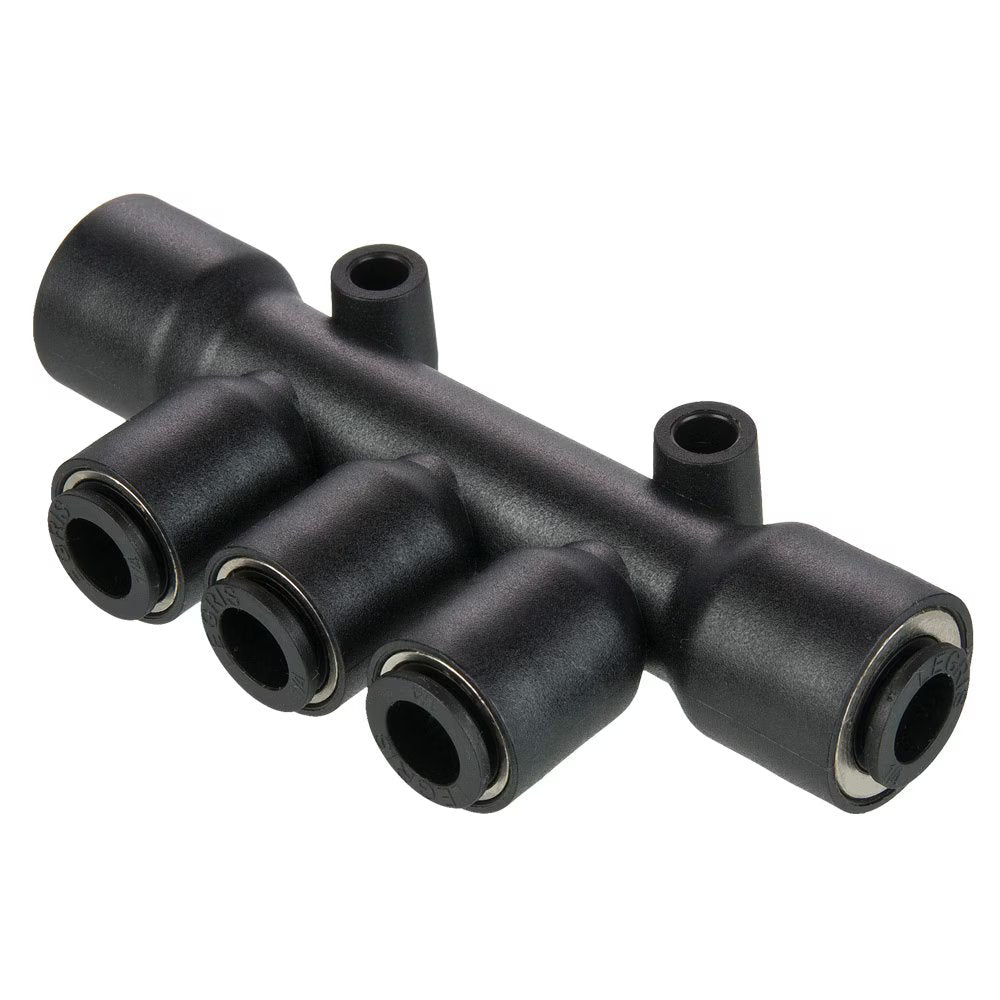

24PLP-10M-6M by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Tube to Tube Fittings | 10mm to 6mm Double Manifold Tube Size | 81mm Length (L) | 4.2mm Mounting Hole Diameter | Multiple Tee | Glass-Reinforced Nylon | Pack of 10
by Parker Hannifin
Push-to-Connect Fittings:24PLP Multiple Tee
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $241.92 |
| 15–29 | $218.76 |
| 30+ | $193.02 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Manifold
Ends Configuration:
Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only) |
| Temperature Range: | -4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only) |
| Vacuum Rating: | 28" Hg |
| Compatible Tubing: |
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Tube Size 1 | Tube Size 2 | H | L | N | Mounting Hole Diameter |
| 24PLP-6M-4M | 6 mm | 4 mm | 24.5 mm | 74 mm | 11.5 mm | 4.2 mm |
| 24PLP-8M-4M | 8 mm | 4 mm | 24.5 mm | 74 mm | 11.5 mm | 4.2 mm |
| 24PLP-8M-6M | 8 mm | 6 mm | 24.5 mm | 74 mm | 11.5 mm | 4.2 mm |
| 24PLP-10M-6M | 10 mm | 6 mm | 36.0 mm | 81 mm | 15.5 mm | 4.2 mm |
| 24PLP-10M-8M | 10 mm | 8 mm | 36.5 mm | 81 mm | 15.5 mm | 4.2 mm |
