24241-04-06H10ZF Winner by Danfoss | Female ORS Swivel 2-Piece Hose Crimp Fitting | 45° Elbow | 10mm Drop | -04 Female O-Ring Face Seal Swivel x -06 Hose Barb | Steel
Winner by Danfoss

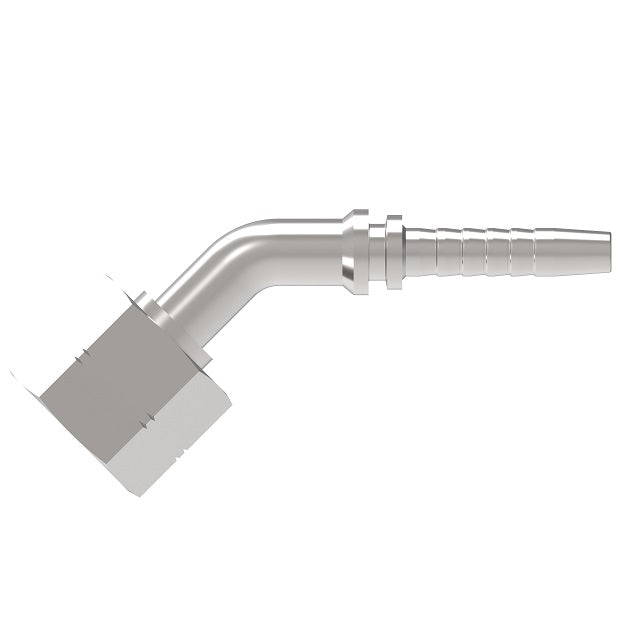

Female O-Ring Face Seal (ORS) Swivel 2-Piece Hose Crimp Fitting - Female O-Ring Face Seal Swivel x Hose Barb - 45° Elbow
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $8.76 |
| 40–79 | $7.92 |
| 80+ | $6.99 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Shape:
45 Degree
Ends Configuration:
Material(s):
Specifications and Approvals:
Compatible Series:
| Features: | |||
|---|---|---|---|
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Terminal End Dash Size |
Thread | DN | Hose Size |
A | D Cut Off Factor |
EØ | H | Hex 1 |
| 24241-04-04H10ZF | -04 | 9/16-18 | 6 | -04 | 2.34" | 1.36" | 0.15" | 0.39" | 17mm |
| 24241-04-06H10ZF | -04 | 9/16-18 | 10 | -06 | 2.63" | 1.45" | 0.28" | 0.39" | 17mm |
| 24241-06-06H11ZF | -06 | 11/16-16 | 10 | -06 | 2.56" | 1.37" | 0.28" | 0.43" | 22mm |
| 24241-08-08H15ZF | -08 | 13/16-16 | 12 | -08 | 3.19" | 1.94" | 0.39" | 0.58" | 24mm |
| 24241-10-10H16ZF | -10 | 1-14 | 16 | -10 | 3.41" | 2.07" | 0.47" | 0.63" | 30mm |
| 24241-12-12H21ZF | -12 | 1-3/16-12 | 20 | -12 | 4.21" | 2.69" | 0.59" | 0.83" | 36mm |
| 24241-06-04H11TZF | -06 | 11/16-16 | 6 | -04 | 2.50" | 1.40" | 0.15" | 0.43" | 22mm |
| 24241-08-06H15TZF | -08 | 13/16-16 | 10 | -06 | 2.81" | 1.63" | 0.27" | 0.59" | 24mm |
| 24241-10-08H16TZF | -10 | 1-14 | 12 | -08 | 3.24" | 2.00" | 0.39" | 0.63" | 30mm |
| 24241-16-16H24TZF | -16 | 1-7/16-12 | 25 | -16 | 4.86" | 3.01" | 0.82" | 0.94" | 41mm |
