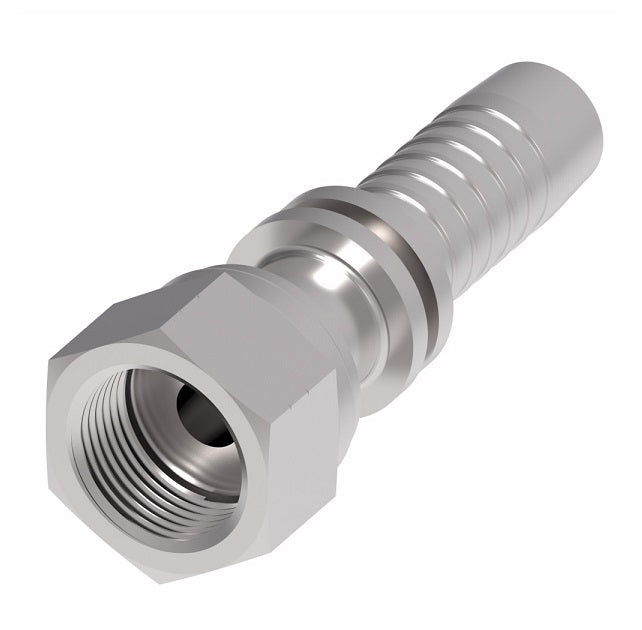

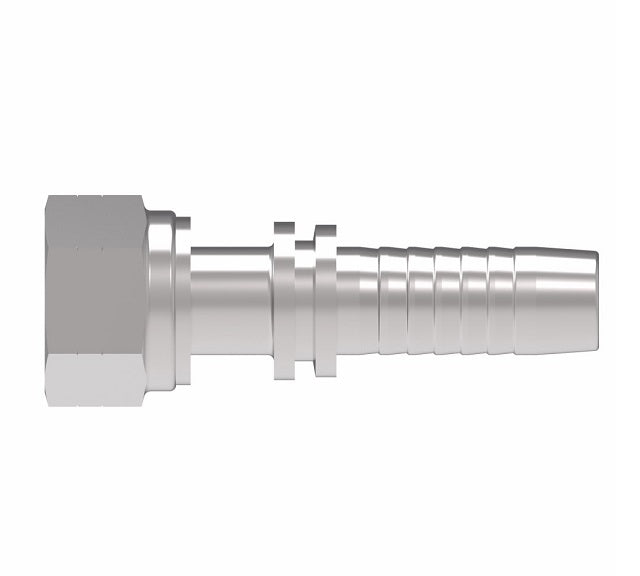

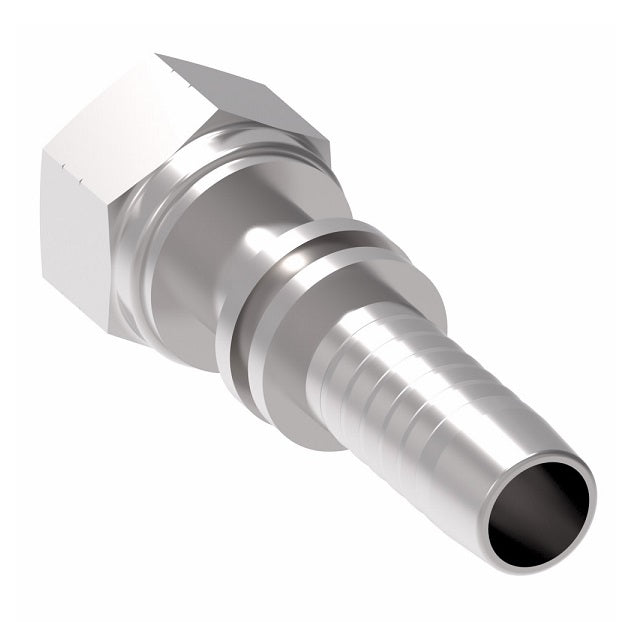

24211-08-08ZF Winner by Danfoss | Female ORS Swivel 2-Piece Hose Crimp Fitting | -08 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel
Winner by Danfoss
Female O-Ring Face Seal (ORS) Swivel 2-Piece Hose Crimp Fitting - Female O-Ring Face Seal Swivel x Hose Barb - Straight
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $13.17 |
| 40–79 | $11.91 |
| 80+ | $10.51 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Features: | |||
|---|---|---|---|
|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | Terminal End Dash Size |
Thread | DN | Hose Size |
A | D Cut Off Factor |
EØ | Hex 1 |
| 24211-04-04ZF | -04 | 9/16"x18 | 6 | -04 | 1.99" | 0.89" | 0.16" | 17mm |
| 24211-06-06ZF | -06 | 11/16"x16 | 10 | -06 | 2.19" | 1.00" | 0.28" | 22mm |
| 24211-08-08ZF | -08 | 13/16"x16 | 12 | -08 | 2.34" | 1.10" | 0.39" | 27mm |
| 26791-10-10ZF | -10 | 1"x14 | 16 | -10 | 2.64" | 1.30" | 0.47" | 30mm |
| 24211-12-12ZF | -12 | 1-3/16"x12 | 20 | -12 | 2.89" | 1.38" | 0.59" | 36mm |
|
24211-16-16TZF (with Captive Nut) |
-16 | 1.7/16"x12 | 25 | -16 | 3.23" | 1.38" | 0.83" | 41mm |
