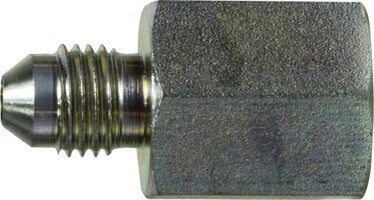

24051216 by Midland | Hydraulic JIC Connector | 1" Female Pipe x 1-1/16-12 Male JIC 37° Flare | Steel
Minimum Order Quantity: 5 Units
Midland Industries
Hydraulic Adapters: JIC Female Connector - Steel
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $3.93 |
| 40–79 | $3.55 |
| 80+ | $3.14 |
Discounts applied in cart/checkout.
Product Data:
Shape:
["Straight"]
Ends Configuration:
Material(s):
Specifications and Approvals:
| Specifications: | |||
|---|---|---|---|
|
|||
| Technical Info: | |||
| Crossover Series: | ||||
|---|---|---|---|---|
| 2405 | 2022R | GTX | 1230R | C5255 |
 |
|||
|---|---|---|---|
| Part Number | Male JIC 37° Flare Size (1) |
Male JIC 37° Flare Thread (1) |
Female Pipe (2) |
| 240522 (2405-2-2) |
1/8" | 5/16-24 | 1/8" |
| 240532 (2405-3-2) |
3/16" | 3/8-24 | 1/8" |
| 240542 (2405-4-2) |
1/4" | 7/16-20 | 1/8" |
| 240544 (2405-4-4) |
1/4" | 7/16-20 | 1/4" |
| 240546 | 1/4" | 7/16-20 | 3/8" |
| 240552 | 5/16" | 1-1/2-20 | 1/8" |
| 240554 | 5/16" | 1-1/2-20 | 1/4" |
| 2405-05-06 | 5/16" | 1-1/2-20 | 3/8" |
| 240562 | 3/8" | 9/16-18 | 1/8" |
| 240564 (2405-6-4) |
3/8" | 9/16-18 | 1/4" |
| 240566 (2405-6-6) |
3/8" | 9/16-18 | 3/8" |
| 24051412 | 3/8" | 9/16-18 | 1/2" |
| 240584 (2405-8-4) |
1/2" | 3/4-16 | 1/4" |
| 240586 (2405-8-6) |
1/2" | 3/4-16 | 3/8" |
| 240588 (2405-8-8) |
1/2" | 3/4-16 | 1/2" |
| 2405812 | 1/2" | 3/4-16 | 3/4" |
| 2405106 (2405-10-6) |
5/8" | 7/8-14 | 3/8" |
| 2405108 (2405-10-8) |
5/8" | 7/8-14 | 1/2" |
| 2405128 (2405-12-8) |
3/4" | 1-1/16-12 | 1/2" |
| 24051212 (2405-12-12) |
3/4" | 1-1/16-12 | 3/4" |
| 24051216 | 3/4" | 1-1/16-12 | 1" |
| 24051412 | 7/8" | 1-13/16-12 | 3/4" |
| 24051612 (2405-16-12) |
1" | 1-5/16-12 | 3/4" |
| 24051616 (2405-16-16) |
1" | 1-5/16-12 | 1" |
| 24051620 | 1" | 1-5/16-12 | 1-1/4" |
| 24052020 (2405-20-20) |
1-1/4" | 1-5/8-12 | 1-1/4" |
| 24052024 | 1-1/4" | 1-5/8-12 | 1-1/2" |
| 24052424 | 1-1/2" | 1-7/8-12 | 1-1/2" |
| 24053232 | 2" | 2-1/2-12 | 2" |
