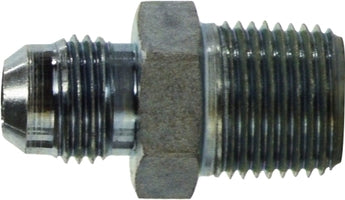

24042416 by Midland | Hydraulic JIC Connector | 1" Male Pipe x 1-7/8-12 Male JIC 37° Flare | Steel
Midland Industries
Hydraulic Adapters: JIC Male Connector - Steel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $33.50 |
| 40–79 | $30.29 |
| 80+ | $26.73 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Specifications and Approvals:
| Specifications: | |||
|---|---|---|---|
|
|||
| Technical Info: | |||
| Crossover Series: | |||||
|---|---|---|---|---|---|
| 2404 | 2021R | FTX | 1202R | C5205 | 816 |
 |
|||
|---|---|---|---|
| Part Number | Male JIC 37° Flare Size |
Male JIC 37° Flare (1) |
Male Pipe (2) |
| 240422 (2404-2-2) |
1/8" | 5/16-24 | 1/8" |
| 240432 | 3/16" | 3/8-24 | 1/8" |
| 240434 | 3/16" | 3/8-24 | 1/4" |
| 240442 (2404-4-2) |
1/4" | 7/16-20 | 1/8" |
| 240444 (2404-4-4) |
1/4" | 7/16-20 | 1/4" |
| 240446 (2404-4-6) |
1/4" | 7/16-20 | 3/8" |
| 240448 (2404-4-8) |
1/4" | 7/16-20 | 1/2" |
| 2404-04-12 | 1/4" | 7/16-20 | 3/4" |
| 240452 | 5/16" | 1/2-20 | 1/8" |
| 240454 | 5/16" | 1/2-20 | 1/4" |
| 240456 | 5/16" | 1/2-20 | 3/8" |
| 2404-05-08 | 5/16" | 1/2-20 | 1/2" |
| 240462 (2404-6-2) |
3/8" | 9/16-18 | 1/8" |
| 240464 (2404-6-4) |
3/8" | 9/16-18 | 1/4" |
| 240466 (2404-6-6) |
3/8" | 9/16-18 | 3/8" |
| 240468 (2404-6-8) |
3/8" | 9/16-18 | 1/2" |
| 2404612 | 3/8" | 9/16-18 | 3/4" |
| 2404-06-16 | 3/8" | 9/16-18 | 1" |
| 2404-08-02 | 1/2" | 3/4-16 | 1/8" |
| 240484 (2404-8-4) |
1/2" | 3/4-16 | 1/4" |
| 240486 (2404-8-6) |
1/2" | 3/4-16 | 3/8" |
| 240488 (2404-8-8) |
1/2" | 3/4-16 | 1/2" |
| 2404812 (2404-8-12) |
1/2" | 3/4-16 | 3/4" |
| 2404816 (2404-8-16) |
1/2" | 3/4-16 | 1" |
| 2404104 | 5/8" | 7/8-14 | 1/4" |
| 2404106 | 5/8" | 7/8-14 | 3/8" |
| 2404108 (2404-10-8) |
5/8" | 7/8-14 | 1/2" |
| 24041012 (2404-10-12) |
5/8" | 7/8-14 | 3/4" |
| 24041016 | 5/8" | 7/8-14 | 1" |
| 2404126 (2404-12-6) |
3/4" | 1-1/16-12 | 3/8" |
| 2404128 (2404-12-8) |
3/4" | 1-1/16-12 | 1/2" |
| 24041212 (2404-12-12) |
3/4" | 1-1/16-12 | 3/4" |
| 2404-12-24 | 3/4" | 1-1/16-12 | 1-1/2" |
| 24041412 | 7/8" | 1-13/16-12 | 3/4" |
| 2404-16-08 | 1" | 1-5/16-12 | 1/2" |
| 24041216 (2404-12-16) |
3/4" | 1-1/16-12 | 1" |
| 24041612 (2404-16-12) |
1" | 1-5/16-12 | 3/4" |
| 24041616 (2404-16-16) |
1" | 1-5/16-12 | 1" |
| 24041620 | 1" | 1-5/16-12 | 1-1/4" |
| 24041624 | 1" | 1-5/16-12 | 1-1/2" |
| 24042012 | 1-1/4" | 1-5/8-12 | 3/4" |
| 24042016 (2404-20-16) |
1-1/4" | 1-5/8-12 | 1" |
| 24042020 (2404-20-20) |
1-1/4" | 1-5/8-12 | 1-1/4" |
| 24042024 | 1-1/4" | 1-5/8-12 | 1-1/2" |
| 2404-20-32 | 1-1/4" | 1-5/8-12 | 2" |
| 24042416 (2404-24-16) |
1-1/2" | 1-7/8-12 | 1" |
| 24042420 (2404-24-20) |
1-1/2" | 1-7/8-12 | 1-1/4" |
| 24042424 (2404-24-24) |
1-1/2" | 1-7/8-12 | 1-1/2" |
| 24042432 | 1-1/2" | 1-7/8-12 | 2" |
| 24043216 | 2" | 2-1/2-12 | 1" |
| 24043220 | 2" | 2-1/2-12 | 1-1/4" |
| 24043224 (2404-32-24) |
2" | 2-1/2-12 | 1-1/2" |
| 24043232 (2404-32-32) |
2" | 2-1/2-12 | 2" |
