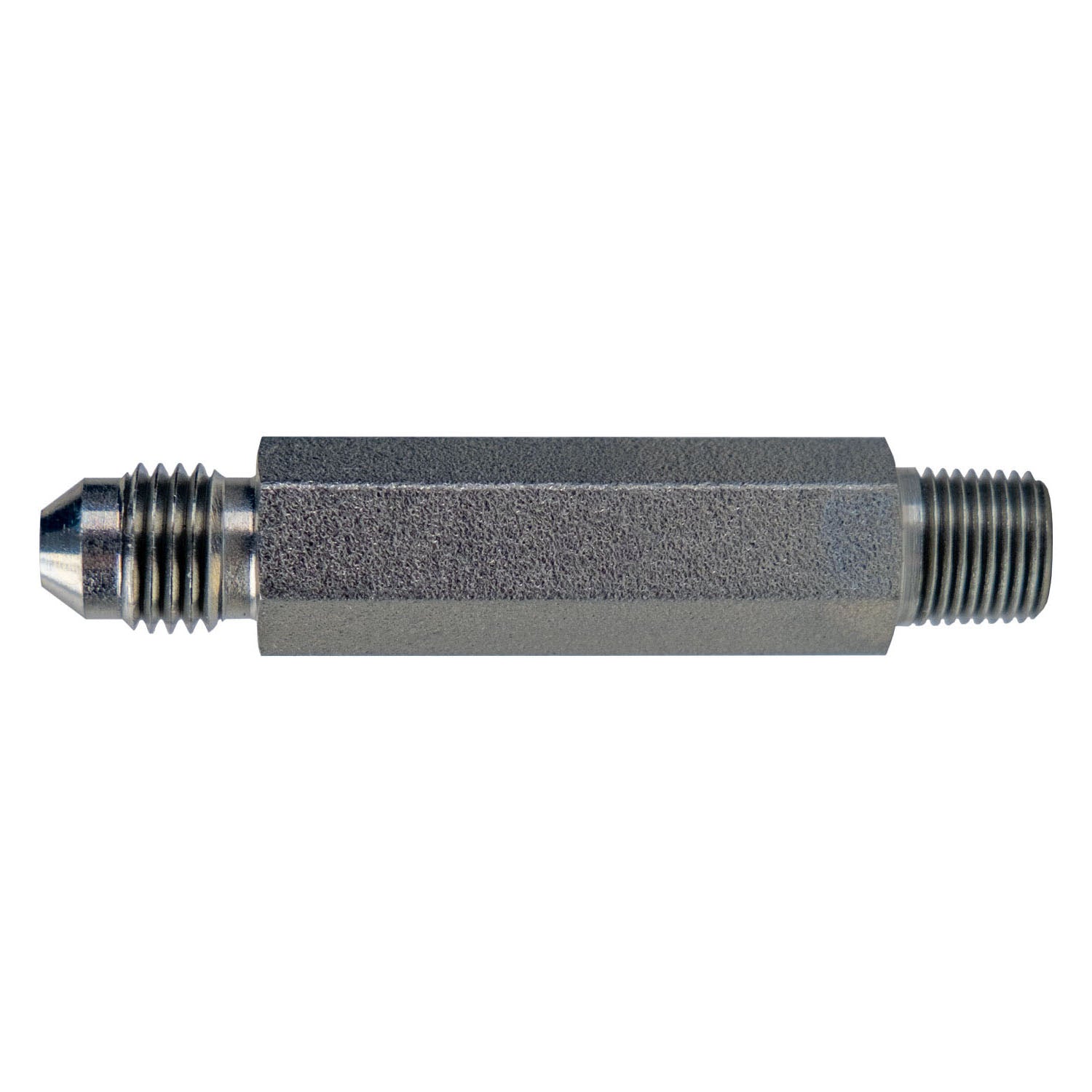

2404-LL-12-12 by Midland | Hydraulic Adapter | JIC to Male Pipe | Extra Long | 3/4" Male 37° JIC x 3/4" Male NPTF | Steel
Buy more, save moreDiscounts applied in cart/checkout.
| Technical Info: | |||
|---|---|---|---|
 |
|||
|---|---|---|---|
| Part Number | Male JIC 37° Size |
Male JIC 37° Thread |
Male Pipe Size |
| 2404-LL-04-02 | 1/4" | 7/16-20 | 1/8" |
| 2404-LL-04-04 | 1/4" | 7/16-20 | 1/4" |
| 2404-LL-06-04 | 3/8" | 9/16-18 | 1/4" |
| 2404-LL-06-06 | 3/8" | 9/16-18 | 3/8" |
| 2404-LL-08-06 | 1/2" | 3/4-16 | 3/8" |
| 2404-LL-08-06 | 1/2" | 3/4-16 | 1/2" |
| 2404-LL-10-08 | 5/8" | 7/8-14 | 1/2" |
| 2404-LL-12-12 | 3/4" | 1-1/16-12 | 3/4" |
| 2404-LL-16-16 | 1" | 1-5/16-12 | 1" |
Additional Product Data:
Ends Configuration:
Material(s):
Special Properties:
