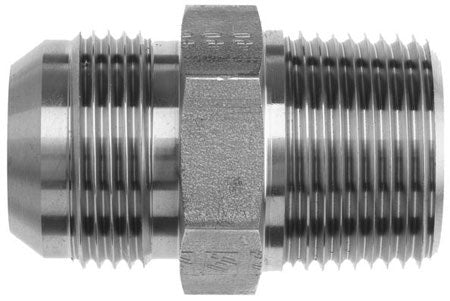

2404-06-06-SS by Brennan Inc. | 3/8in Male JIC x 3/8in Male NPTF | Straight | Stainless Steel
by Brennan Inc.
Tube Fittings & Adapters:2404 - Male JIC x Male Pipe Straight
Product Data:
Shape:
Straight
Material(s):
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | Material | Tube OD | B1 SAE 37° | A2 NPTF | B1 Drill | A2 Drill | L Length | C Hex |
| 2404-04-01 | Steel | 1/4" | 7/16-20" | 1/16-27" | 0.172" | 0.125" | 1.220" | 0.500" |
| 2404-04-02 | Steel | 1/4" | 7/16-20" | 1/8-27" | 0.172" | 0.188" | 1.220" | 0.500" |
| 2404-04-04 | Steel | 1/4" | 7/16-20" | 1/4-18" | 0.172" | 0.172" | 1.42" | 0.562" |
| 2404-04-06 | Steel | 1/4" | 7/16-20" | 3/8-18" | 0.172" | 0.406" | 1.420" | 0.750" |
| 2404-05-02 | Steel | 5/16" | 1/2-20" | 1/8-27" | 0.234" | 0.188" | 1.22" | 0.562" |
| 2404-05-06 | Steel | 5/16" | 1/2-20" | 3/8-18" | 0.234" | 0.406" | 1.42" | 0.750" |
| 2404-06-02 | Steel | 3/8" | 9/16-18" | 1/8-27" | 0.297" | 0.188" | 1.24" | 0.625" |
| 2404-06-04 | Steel | 3/8" | 9/16-18" | 1/4-18" | 0.297" | 0.281" | 1.430" | 0.625" |
| 2404-06-06 | Steel | 3/8" | 9/16-18" | 3/8-18" | 0.297" | 0.297" | 1.43" | 0.750" |
| 2404-06-08 | Steel | 3/8" | 9/16-18" | 1/2-14" | 0.297" | 0.531" | 1.69" | 0.875" |
| 2404-06-12 | Steel | 3/8" | 9/16-18" | 3/4-14" | 0.297" | 0.719" | 1.75" | 1.125" |
| 2404-08-04 | Steel | 1/2" | 3/4-16" | 1/4-18" | 0.391" | 0.281" | 1.530" | 0.812" |
| 2404-08-06 | Steel | 1/2" | 3/4-16" | 3/8-18" | 0.391" | 0.391" | 1.530" | 0.812" |
| 2404-08-08 | Steel | 1/2" | 3/4-16" | 1/2-14" | 0.391" | 0.531" | 1.790" | 0.875" |
| 2404-08-12 | Steel | 1/2" | 3/4-16" | 3/4-14" | 0.391" | 0.719" | 1.85" | 1.125" |
| 2404-08-16 | Steel | 1/2" | 3/4-16" | 1-11-1/2" | 0.391" | 0.938" | 2.050" | 1.375" |
| 2404-10-06 | Steel | 5/8" | 7/8-14" | 3/8-18" | 0.484" | 0.406" | 1.700" | 0.937" |
| 2404-10-08 | Steel | 5/8" | 7/8-14" | 1/2-14" | 0.484" | 0.484" | 1.890" | 0.937" |
| 2404-10-20 | Steel | 5/8" | 7/8-14" | 1-1/4-11-1/2" | 0.484" | 1.250" | 2.250" | 1.688" |
| 2404-12-04 | Steel | 3/4" | 1-1/16-12" | 1/4-18" | 0.609" | 0.281" | 1.87" | 1.125" |
| 2404-12-08 | Steel | 3/4" | 1-1/16-12" | 1/2-14" | 0.609" | 0.531" | 2.060" | 1.125" |
| 2404-12-12 | Steel | 3/4" | 1-1/16-12" | 3/4-14" | 0.609" | 0.719" | 2.060" | 1.125" |
| 2404-12-16 | Steel | 3/4" | 1-1/16-12" | 1-11-1/2" | 0.609" | 0.938" | 2.25" | 1.375" |
| 2404-12-20 | Steel | 3/4" | 1-1/16-12" | 1-1/4-11-1/2" | 0.609" | 1.250" | 2.360" | 1.688" |
| 2404-14-08 | Steel | 7/8" | 1-3/16-12" | 1/2-14" | 0.719" | 0.531" | 2.09" | 1.250" |
| 2404-14-12 | Steel | 7/8" | 1-3/16-12" | 3/4-14" | 0.719" | 0.719" | 2.09" | 1.250" |
| 2404-14-16 | Steel | 7/8" | 1-3/16-12" | 1-11-1/2" | 0.719" | 0.938" | 2.28" | 1.375" |
| 2404-16-08 | Steel | 1" | 1-5/16-12" | 1/2-14" | 0.844" | 0.531" | 2.11" | 1.375" |
| 2404-16-12 | Steel | 1" | 1-5/16-12" | 3/4-14" | 0.844" | 0.719" | 2.11" | 1.375" |
| 2404-16-16 | Steel | 1" | 1-5/16-12" | 1-11-1/2" | 0.844" | 0.844" | 2.30" | 1.375" |
| 2404-16-20 | Steel | 1" | 1-5/16-12" | 1-1/4-11-1/2" | 0.844" | 1.250" | 2.40" | 1.688" |
| 2404-16-24 | Steel | 1" | 1-5/16-12" | 1-1/2-11-1/2" | 0.844" | 1.500" | 2.51" | 2.000" |
| 2404-16-32 | Steel | 1" | 1-5/16-12" | 2-11-1/2" | 0.844" | 1.938" | 2.690" | 2.500" |
| 2404-20-12 | Steel | 1-1/4" | 1-5/8-12" | 3/4-14" | 1.078" | 0.719" | 2.230" | 1.625" |
| 2404-20-16 | Steel | 1-1/4" | 1-5/8-12" | 1-11-1/2" | 1.078" | 0.938" | 2.42" | 1.688" |
| 2404-20-20 | Steel | 1-1/4" | 1-5/8-12" | 1-1/4-11-1/2" | 1.078" | 1.250" | 2.45" | 1.688" |
| 2404-20-24 | Steel | 1-1/4" | 1-5/8-12" | 1-1/2-11-1/2" | 1.078" | 1.500" | 2.550" | 2.000" |
| 2404-20-32 | Steel | 1-1/4" | 1-5/8-12" | 2-11-1/2" | 1.078" | 1.938" | 2.735" | 2.500" |
| 2404-24-12 | Steel | 1-1/2" | 1-7/8-12" | 3/4-14" | 1.312" | 0.719" | 2.430" | 2.000" |
| 2404-24-16 | Steel | 1-1/2" | 1-7/8-12" | 1-11-1/2" | 1.312" | 0.938" | 2.62" | 2.000" |
| 2404-24-20 | Steel | 1-1/2" | 1-7/8-12" | 1-1/4-11-1/2" | 1.250" | 1.250" | 2.650" | 2.000" |
| 2404-24-24 | Steel | 1-1/2" | 1-7/8-12" | 1-1/2-11-1/2" | 1.312" | 1.500" | 2.68" | 2.000" |
| 2404-24-32 | Steel | 1-1/2" | 1-7/8-12" | 2-11-1/2" | 1.312" | 1.938" | 2.86" | 2.625" |
| 2404-32-16 | Steel | 2" | 2-1/2-12" | 1-11-1/2" | 1.781" | 0.938" | 3.020" | 2.625" |
| 2404-32-20 | Steel | 2" | 2-1/2-12" | 1-1/4-11-1/2" | 1.781" | 1.250" | 3.05" | 2.625" |
| 2404-32-24 | Steel | 2" | 2-1/2-12" | 1-1/2-11-1/2" | 1.781" | 1.500" | 3.080" | 2.625" |
| 2404-32-32 | Steel | 2" | 2-1/2-12" | 2-11-1/2" | 1.781" | 1.938" | 3.11" | 2.625" |
| 2404-32-40 | Steel | 2" | 2-1/2-12" | 2-1/2-8" | 1.781" | 2.185" | 3.680" | 3.000" |
| 2404-32-48 | Steel | 2" | 2-1/2-13" | 3-8" | 1.781" | 2.780" | 3.74" | 3.750" |
| 2404-40-32 | Steel | 2-1/2" | 3-12" | 2-11-1/2" | 2.279" | 1.938" | 2.890" | 3.000" |
| 2404-40-40 | Steel | 2-1/2" | 3-12" | 2-1/2-8" | 2.318" | 2.318" | 3.37" | 3.250" |
| 2404-48-48 | Steel | 3" | 3-1/2-12" | 3-8" | 2.780" | 2.780" | 3.64" | 3.750" |
| 2404-02-02-B | Brass | 1/8" | 5/16-24" | 1/8-27" | 0.062" | 0.188" | 1.11" | 0.438" |
| 2404-03-02-B | Brass | 3/16" | 3/8-24" | 1/8-27" | 0.125" | 0.188" | 1.140" | 0.438" |
| 2404-04-02-B | Brass | 1/4" | 7/16-20" | 1/8-27" | 0.172" | 0.188" | 1.220" | 0.500" |
| 2404-04-04-B | Brass | 1/4" | 7/16-20" | 1/4-18" | 0.172" | 0.172" | 1.42" | 0.562" |
| 2404-04-06-B | Brass | 1/4" | 7/16-20" | 3/8-18" | 0.172" | 0.406" | 1.420" | 0.750" |
| 2404-04-08-B | Brass | 1/4" | 7/16-20" | 1/2-14" | 0.172" | 0.531" | 1.68" | 0.875" |
| 2404-05-02-B | Brass | 5/16" | 1/2-20" | 1/8-27" | 0.234" | 0.188" | 1.22" | 0.562" |
| 2404-05-04-B | Steel | 5/16" | 1/2-20" | 1/4-18" | 0.234" | 0.281" | 1.42" | 0.562" |
| 2404-06-02-B | Brass | 3/8" | 9/16-18" | 1/8-27" | 0.297" | 0.188" | 1.24" | 0.625" |
| 2404-06-04-B | Brass | 3/8" | 9/16-18" | 1/4-18" | 0.297" | 0.281" | 1.430" | 0.625" |
| 2404-06-06-B | Brass | 3/8" | 9/16-18" | 3/8-18" | 0.297" | 0.297" | 1.43" | 0.750" |
| 2404-06-08-B | Brass | 3/8" | 9/16-18" | 1/2-14" | 0.297" | 0.531" | 1.69" | 0.875" |
| 2404-08-04-B | Brass | 1/2" | 3/4-16" | 1/4-18" | 0.391" | 0.281" | 1.530" | 0.812" |
| 2404-08-06-B | Brass | 1/2" | 3/4-16" | 3/8-18" | 0.391" | 0.406" | 1.530" | 0.812" |
| 2404-08-08-B | Brass | 1/2" | 3/4-16" | 1/2-14" | 0.391" | 0.531" | 1.790" | 0.875" |
| 2404-08-12-B | Brass | 1/2" | 3/4-16" | 3/4-14" | 0.391" | 0.719" | 1.85" | 1.125" |
| 2404-10-04-B | Brass | 5/8" | 7/8-14" | 1/4-18" | 0.484" | 0.281" | 1.690" | 0.937" |
| 2404-10-06-B | Brass | 5/8" | 7/8-14" | 3/8-18" | 0.484" | 0.406" | 1.700" | 0.937" |
| 2404-10-08-B | Brass | 5/8" | 7/8-14" | 1/2-14" | 0.484" | 0.531" | 1.890" | 0.937" |
| 2404-10-12-B | Brass | 5/8" | 7/8-14" | 3/4-14" | 0.484" | 0.719" | 1.950" | 1.125" |
| 2404-12-08-B | Brass | 3/4" | 1-1/16-12" | 1/2-14" | 0.531" | 0.531" | 2.060" | 1.125" |
| 2404-12-12-B | Brass | 3/4" | 1-1/16-12" | 3/4-14" | 0.609" | 0.719" | 2.060" | 1.125" |
| 2404-12-16-B | Brass | 3/4" | 1-1/16-12" | 1-11-1/2" | 0.609" | 0.938" | 2.25" | 1.375" |
| 2404-14-20-B | Brass | 7/16" | 1-3/16-12" | 1-1/4-1-11-1/2" | 0.719" | 1.250" | 2.380" | 1.687" |
| 2404-16-12-B | Brass | 1" | 1-5/16-12" | 3/4-14" | 0.844" | 0.719" | 2.11" | 1.375" |
| 2404-16-16-B | Brass | 1" | 1-5/16-12" | 1-11-1/2" | 0.844" | 0.844" | 2.30" | 1.375" |
| 2404-20-20-B | Brass | 1-1/4" | 1-5/8-12" | 1-1/4-11-1/2" | 1.078" | 1.250" | 2.45" | 1.688" |
| 2404-24-24-B | Brass | 1-1/2" | 1-7/8-12" | 1-1/2-11-1/2" | 1.312" | 1.500" | 2.68" | 2.000" |
| 2404-32-24-B | Brass | 2" | 2-1/2-12" | 1-1/2-11-1/2" | 1.781" | 1.500" | 3.080" | 2.625" |
| 2404-32-32-B | Brass | 2" | 2-1/2-12" | 2-11-1/2" | 1.781" | 1.938" | 3.11" | 2.625" |
| 2404-02-02-SS | Stainless Steel | 1/8" | 5/16-24" | 1/8-27" | 0.062" | 0.188" | 1.11" | 0.438" |
| 2404-02-04-SS | Stainless Steel | 1/8" | 5/16-24" | 1/4-18" | 0.062" | 0.281" | 1.330" | 0.562" |
| 2404-03-02-SS | Stainless Steel | 3/16" | 3/8-24" | 1/8-27" | 0.125" | 0.188" | 1.140" | 0.438" |
| 2404-03-04-SS | Stainless Steel | 3/16" | 3/8-24" | 1/4-18" | 0.125" | 0.281" | 1.350" | 0.625" |
| 2404-04-02-SS | Stainless Steel | 1/4" | 7/16-20" | 1/8-27" | 0.172" | 0.188" | 1.220" | 0.500" |
| 2404-04-04-SS | Stainless Steel | 1/4" | 7/16-20" | 1/4-18" | 0.172" | 0.172" | 1.42" | 0.562" |
| 2404-04-06-SS | Stainless Steel | 1/4" | 7/16-20" | 3/8-18" | 0.172" | 0.406" | 1.420" | 0.750" |
| 2404-04-08-SS | Stainless Steel | 1/4" | 7/16-20" | 1/2-14" | 0.172" | 0.531" | 1.68" | 0.875" |
| 2404-04-12-SS | Stainless Steel | 1/4" | 7/16-20" | 3/4-14" | 0.172" | 0.719" | 1.75" | 1.125" |
| 2404-05-02-SS | Stainless Steel | 5/16" | 1/2-20" | 1/8-27" | 0.234" | 0.188" | 1.22" | 0.562" |
| 2404-05-04-SS | Stainless Steel | 5/16" | 1/2-20" | 1/4-18" | 0.234" | 0.281" | 1.42" | 0.562" |
| 2404-05-06-SS | Stainless Steel | 5/16" | 1/2-20" | 3/8-18" | 0.234" | 0.406" | 1.42" | 0.750" |
| 2404-06-02-SS | Stainless Steel | 3/8" | 9/16-18" | 1/8-27" | 0.297" | 0.188" | 1.24" | 0.625" |
| 2404-06-04-SS | Stainless Steel | 3/8" | 9/16-18" | 1/4-18" | 0.297" | 0.281" | 1.430" | 0.625" |
| 2404-06-06-SS | Stainless Steel | 3/8" | 9/16-18" | 3/8-18" | 0.297" | 0.297" | 1.43" | 0.750" |
| 2404-06-08-SS | Stainless Steel | 3/8" | 9/16-18" | 1/2-14" | 0.297" | 0.531" | 1.69" | 0.875" |
| 2404-06-12-SS | Stainless Steel | 3/8" | 9/16-18" | 3/4-14" | 0.297" | 0.719" | 1.75" | 1.125" |
| 2404-06-16-SS | Stainless Steel | 3/8" | 9/16-18" | 1-11-1/2" | 0.297" | 0.938" | 1.940" | 1.375" |
| 2404-08-02-SS | Stainless Steel | 1/2" | 3/4-16" | 1/8-27" | 0.391" | 0.188" | 1.340" | 0.812" |
| 2404-08-04-SS | Stainless Steel | 1/2" | 3/4-16" | 1/4-18" | 0.391" | 0.281" | 1.530" | 0.812" |
| 2404-08-06-SS | Stainless Steel | 1/2" | 3/4-16" | 3/8-18" | 0.391" | 0.406" | 1.530" | 0.812" |
| 2404-08-08-SS | Stainless Steel | 1/2" | 3/4-16" | 1/2-14" | 0.391" | 0.531" | 1.790" | 0.875" |
| 2404-08-12-SS | Stainless Steel | 1/2" | 3/4-16" | 3/4-14" | 0.391" | 0.719" | 1.85" | 1.125" |
| 2404-08-16-SS | Stainless Steel | 1/2" | 3/4-16" | 1-11-1/2" | 0.391" | 0.938" | 2.050" | 1.375" |
| 2404-10-04-SS | Stainless Steel | 5/8" | 7/8-14" | 1/4-18" | 0.484" | 0.281" | 1.690" | 0.937" |
| 2404-10-06-SS | Stainless Steel | 5/8" | 7/8-14" | 3/8-18" | 0.484" | 0.406" | 1.70" | 0.937" |
| 2404-10-08-SS | Stainless Steel | 5/8" | 7/8-14" | 1/2-14" | 0.484" | 0.484" | 1.890" | 0.937" |
| 2404-10-12-SS | Stainless Steel | 5/8" | 7/8-14" | 3/4-14" | 0.484" | 0.719" | 1.95" | 1.125" |
| 2404-10-16-SS | Stainless Steel | 5/8" | 7/8-14" | 1-11-1/2" | 0.484" | 0.938" | 2.15" | 1.375" |
