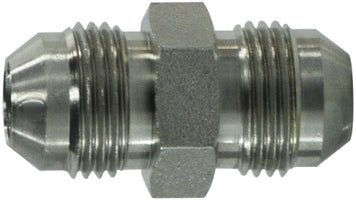

2403-04-02 by Midland | Hydraulic JIC Tube Union | 1/4" Male JIC 37° Flare x 1/8" Male JIC 37° Flare | Steel
Minimum Order Quantity: 5 Units
Midland Industries
Hydraulic Adapters: JIC Tube Union - Steel
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $1.89 |
| 40–79 | $1.71 |
| 80+ | $1.51 |
Discounts applied in cart/checkout.
Product Data:
Ends Configuration:
Material(s):
| Specifications: | |||
|---|---|---|---|
|
|||
| Technical Info: | |||
| Crossover Series: | ||||
|---|---|---|---|---|
| 2403 | 2027 | HTX | 1204 | C5305 |
| Part Number | Male JIC 37° Flare Size (Side 1) |
Male JIC 37° Flare Thread (Side 1) |
Male JIC 37° Flare Size (Side 2) |
Male JIC 37° Flare Thread (Side 2) |
|---|---|---|---|---|
| 240322 (2403-2-2) |
1/8" | 5/16-24 | 1/8" | 5/16-24 |
| 240333 (2403-3-3) |
3/16" | 3/8-24 | 3/16" | 3/8-24 |
| 2403-04-02 | 1/4" | 1/8" | ||
| 240343 | 1/4" | 7/16-20 | 3/16" | 3/8-24 |
| 240344 (2403-4-4) |
1/4" | 7/16-20 | 1/4" | 7/16-20 |
| 2403-05-04 | 5/16" | 1/2-20 | 1/4" | 7/16-20 |
| 240355 (2403-5-5) |
5/16" | 1/2-20 | 5/16" | 1/2-20 |
| 240366 (2403-6-6) |
3/8" | 9/16-18 | 3/8" | 9/16-18 |
| 240364 (2403-6-4) |
3/8" | 9/16-18 | 1/4" | 7/16-20 |
| 240384 | 1/2" | 3/4-16 | 1/4" | 7/16-20 |
| 240388 (2403-8-8) |
1/2" | 3/4-16 | 1/2" | 3/4-16 |
| 2403106 | 5/8" | 7/8-14 | 3/8" | 9/16-18 |
| 240386 (2403-8-6) |
1/2" | 3/4-16 | 3/8" | 9/16-18 |
| 24031010 (2403-10-10) |
5/8" | 7/8-14 | 5/8" | 7/8-14 |
| 2403126 | 3/4" | 1-1/16-12 | 3/8" | 9/16-18 |
| 2403108 (2403-10-8) |
5/8" | 7/8-14 | 1/2" | 3/4-16 |
| 24031212 (2403-12-12) |
3/4" | 1-1/16-12 | 3/4" | 1-1/16-12 |
| 2403128 (2403-12-8) |
3/4" | 1-1/16-12 | 1/2" | 3/4-16 |
| 24031210 (2403-12-10) |
3/4" | 1-1/16-12 | 5/8" | 7/8-14 |
| 24031414 (2403-14-14) |
7/8" | 1-3/16-12 | 7/8" | 1-3/16-12 |
| 2403-16-08 | 1" | 1-5/16-12 | 1/2" | 3/4-16 |
| 24031616 (2403-16-16) |
1" | 1-5/16-12 | 1" | 1-5/16-12 |
| 24031612 (2403-16-12) |
1" | 1-5/16-12 | 3/4" | 1-1/16-12 |
| 24032016 | 1-1/4" | 1-5/8-12 | 1" | 1-5/16-12 |
| 24032020 (2403-20-20) |
1-1/4" | 1-5/8-12 | 1-1/4" | 1-5/8-12 |
| 2403-24-16 | 1-1/2" | 1-7/8-12 | 1" | 1-5/16-12 |
| 240324 (2403-24) |
1-1/2" | 1-7/8-12 | 1-1/2" | 1-7/8-12 |
| 240332 (2403-32) |
2" | 2-1/2-12 | 2" | 2-1/2-12 |
