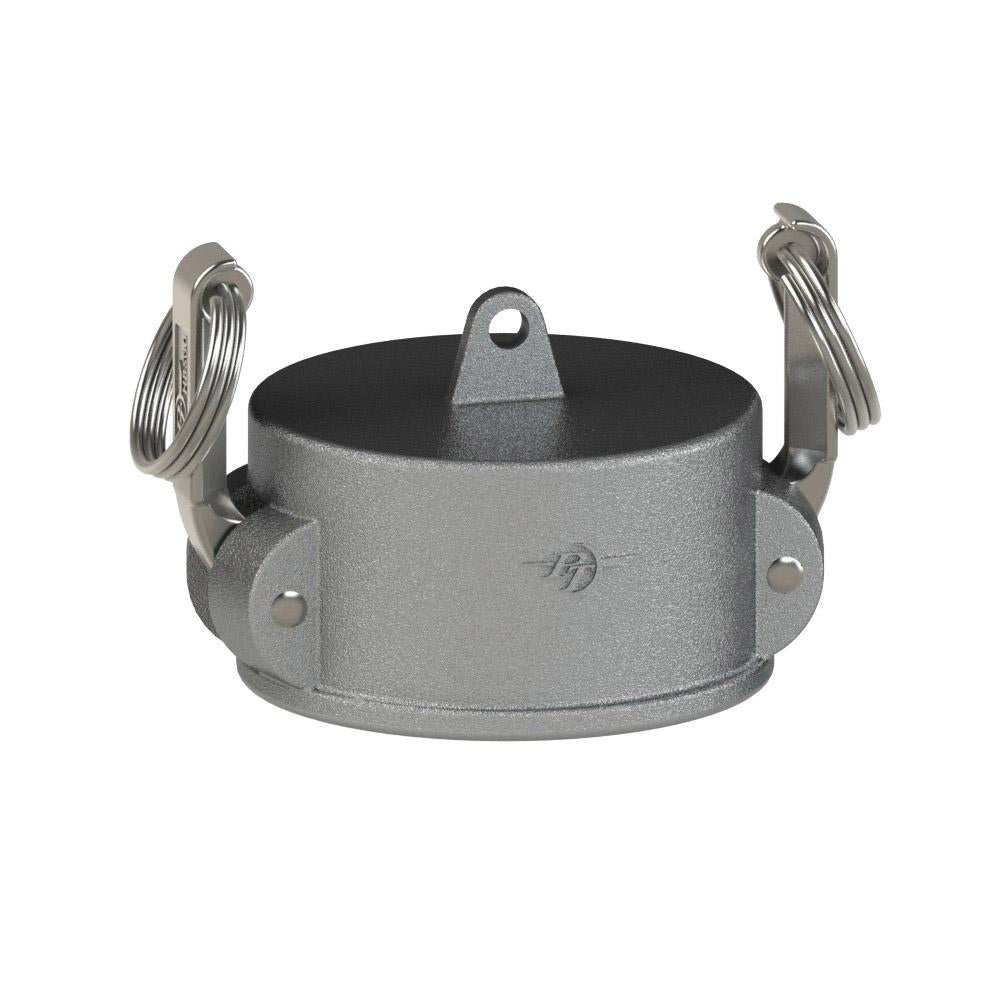

2401160 (60V) by PT-Coupling | Cam & Groove Dust Cap | Type V | 6" Coupler | Carbon Steel

2401160 (60V) by PT-Coupling | Cam & Groove Dust Cap | Type V | 6" Coupler | Carbon Steel

Sale price$358.65

PT Coupling
Cam and Groove (Camlock) Dust Cap | Type V | Carbon Steel

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Buy More, Save More!
Quantity Price Each
5–14 $337.13
15–29 $304.85
30+ $268.99
Discounts applied in cart/checkout.

Product Data:

Cam & Groove Type:

Type DC

Ends Configuration:
  • 6in Female Cam & Groove
Material(s):
  • Carbon Steel
Overview:
  • PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features & Applications:
  • 8, 10 and 12 inch couplers are 4-cam designs with the STA-LOK® positive locking feature.
  • Couplings not interchangeable in the industry are sizes 8" through 12".
  • Made in the USA
Part
Name		 Item # Coupler
Size		 O. D. with
Cam Arms
Extended
(A)		 Outside
Diameter
(B)		 Overall
Length
(C)		 Chain Lug
Extension
(G)		 Engagement
Length		 Max. Allowable
Working Press.
(PSI)*

10V 2401110 1" 5.10" 2.44" 1.60" 0.62" 1.19" 250 PSI

20V 2401120 2" 7.54" 3.94" 2.25" 0.76" 1.75" 250 PSI

30V 2401130 3" 9.56" 5.46" 2.27" 1.03" 1.84" 200 PSI

40V 2401140 4" 10.66" 6.56" 2.34" 0.99" 1.87" 150 PSI

60V 2401160 6" 16.26" 10.16" 2.76" 1.14" 2.19" 75 PSI

** 8, 10 and 12 inch couplers are 4-cam designs with the STA-LOK® positive locking feature.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
