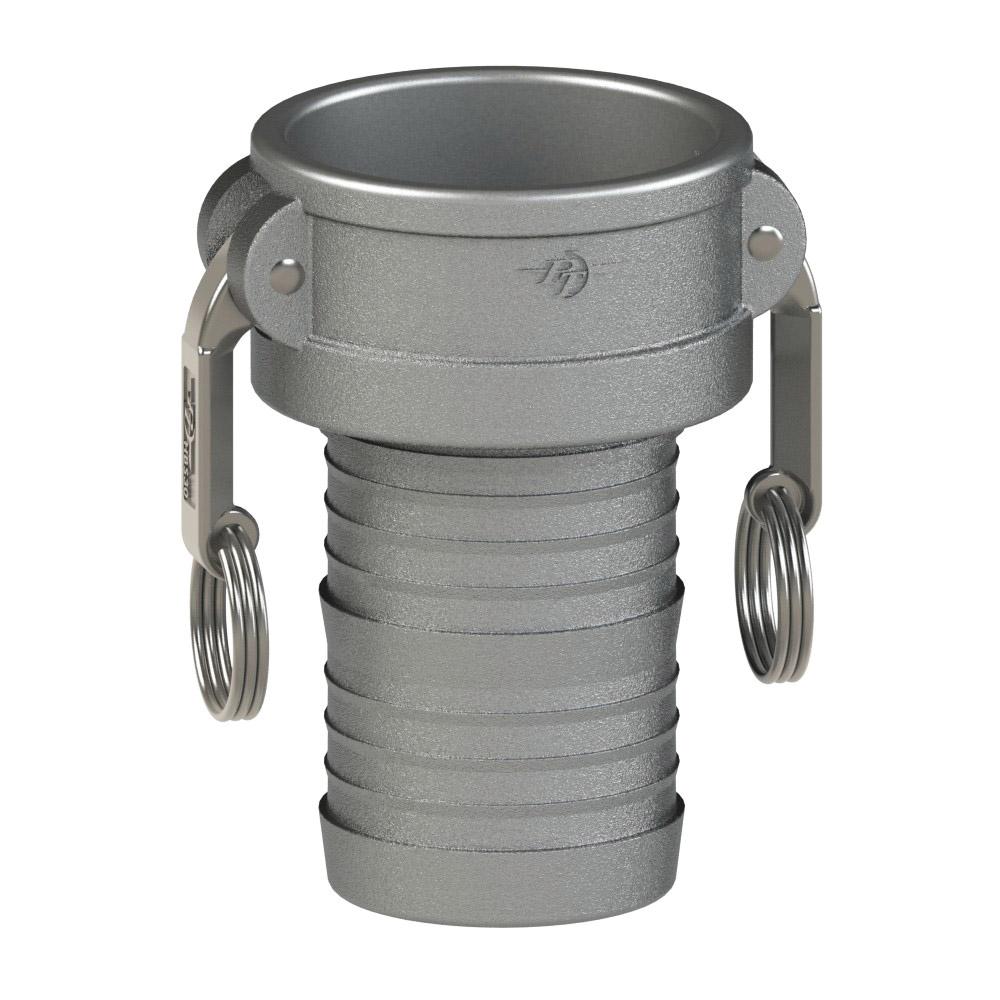

2400330 (30C) by PT-Coupling | Cam & Groove Fitting | Type C | 3" Coupler x 3" Hose Shank | Carbon Steel | Buna-N Seal

2400330 (30C) by PT-Coupling | Cam & Groove Fitting | Type C | 3" Coupler x 3" Hose Shank | Carbon Steel | Buna-N Seal

Sale price$211.22

PT Coupling
Cam and Groove (Camlock) Fitting | Type C | Coupler x Hose Shank | Carbon Steel | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Buy More, Save More!
Quantity Price Each
5–19 $198.55
20–59 $179.54
60+ $158.42
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Cam & Groove Type:

Type C

Ends Configuration:
  • 3in Female Cam & Groove
  • 3in Hose Barb
Overview:
  • PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features & Applications:
  • PT's specially designed multi-barbed shank with interlocking ring allows for attachment via original PUNCH-LOK® center punch clamps, or by an interlocked PROGRIP™ C-50 ferrule or sleeve.
  • Made in the USA
Part
Name		 Item # Coupler
Size		 Hose
Shank
Size		 O.D. with
Cam Arms
Extended
(A)		 Outside
Diameter
(B)		 Overall
Length
(C)		 Exposed
Length
(D)		 Inside
Diameter
(E)		 Min.
Inside
Diameter
(E)		 Engagement
Length		 Max. Allowable
Working Press.
(PSI)*		 Weight
07C 2400307 3/4" 3/4" 4.51" 2.11" 3.55" 1.25" 0.53" 0.40" 0.97" 250 PSI 0.695 lbs.
20C 2400320 2" 2" 7.54" 3.94" 5.53" 2.15" 1.71" 1.60" 1.75" 250 PSI 2.518 lbs.
30C 2400330 3" 3" 9.56" 5.46" 6.32" 2.27" 2.65" 2.55" 1.84" 200 PSI 5.082 lbs.
40C 2400340 4" 4" 10.66" 6.56" 6.64" 2.34" 3.53" 3.43" 1.87" 150 PSI 7.627 lbs.

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
