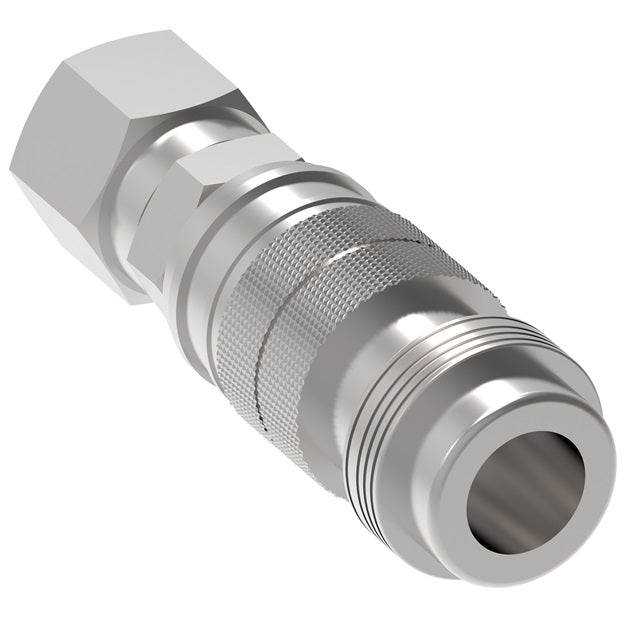

23203004 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | Full-Bore Series | 1/2" Female NPTF x 3/8" Body Size | Socket | Buna-N Seal | Steel
23203004 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | Full-Bore Series | 1/2" Female NPTF x 3/8" Body Size | Socket | Buna-N Seal | Steel
23203004 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | Full-Bore Series | 1/2" Female NPTF x 3/8" Body Size | Socket | Buna-N Seal | Steel

23203004 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | Full-Bore Series | 1/2" Female NPTF x 3/8" Body Size | Socket | Buna-N Seal | Steel

Sale price$165.78

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | Full-Bore Series

Quick Disconnect for Pneumatic Applications.

Danfoss' Full-Bore Series is a premium automatic one-way shutoff quick disconnect coupling.
Buy More, Save More!
Quantity Price Each
5–19 $155.83
20–59 $140.91
60+ $124.34
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Hansen
Series:
  • Full-Bore Series
Shape:

Straight
Features:
  • Two sleeves must be actuated in sequence to bleed off back pressure and release the connector, preventing accidental uncoupling.
  • Pressure relieving feature fully vents downstream air, making connection/disconnection fast and easy, and eliminating hose whip.
  • Unique straight through design eliminates restrictive springs and poppet valves, allowing unimpeded air flow.
  • Two sleeve activation prevents accidental disconnect.
Applications & Markets:
  • Construction
  • Maintenance and Repair
  • In-Plant/Industrial
  • Railyards
  • General Pneumatics
Materials:
  • Standard body material: Zinc trivalent plated carbon steel.
  • Standard seal material: Buna-N
Body Size Max. Operating Pressure Min. Burst Pressure Rated Flow
3/8" 15 bar 250 psi 60 bar 1,000 psi 1,784 lpm 63 scfm
1/2" 15 bar 250 psi 60 bar 1,000 psi 2,860 lpm 101 scfm
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
Full-Bore Series | Socket
Part Number Coupling Type Body Size Port Size Thread Figure Dimensions
A B Hex
23203300 Socket/Female 3/8" 3/8" 3/8-18 Female NPTF 1 3.17"
(80.5mm)		 1.25"
(31.8mm)		 1.00"
(25.4mm)
23203004 Socket/Female 3/8" 1/2" 1/2-14 Female NPTF 1 3.92"
(99.6mm)		 1.25"
(31.8mm)		 1.00"
(25.4mm)
23204400 Socket/Female 1/2" 1/2" 1/2-14 Female NPTF 1 3.31"
(84.1mm)		 1.38"
(35.1mm)		 1.13"
(28.7mm)
23204005 Socket/Female 1/2" 3/4" 3/4-14 Female NPTF 1 4.30"
(109.2mm)		 1.38"
(35.1mm)		 1.13"
(28.7mm)
Full-Bore Series | Plugs
Part Number Coupling Type Body Size Port Size Thread Figure Dimensions
C D Hex
41 Plug/Male 3/8" 1/4" 1/4-18 Female NPTF 2 1.63"
(41.4mm)		 0.79"
(20.1mm)		 0.69"
(17.5mm)
43 Plug/Male 3/8" 3/8" 3/8-18 Female NPTF 2 1.81"
(46.0mm)		 0.94"
(23.9mm)		 0.81"
(20.6mm)
45E Plug/Male 3/8" 1/2" 1/2-14 Female NPTF 2 2.06"
(52.3mm)		 1.15"
(29.2mm)		 1.00"
(25.4mm)
53 Plug/Male 1/2" 3/8" 3/8-18 Female NPTF 2 2.06"
(52.3mm)		 0.94"
(23.9mm)		 0.81"
(20.6mm)
55 Plug/Male 1/2" 1/2" 1/2-14 Female NPTF 2 2.34"
(59.4mm)		 1.15"
(29.2mm)		 1.00"
(25.4mm)
57 Plug/Male 1/2" 3/4" 3/4-14 Female NPTF 2 2.44"
(62.0mm)		 1.37"
(34.8mm)		 1.19"
(30.2mm)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
